Carli CS-DBJP-14 Extreme-Duty Ball Joint Package for Select 2013-2025 Ram 2500/3500 4WD

Fits select 2013-2025 Ram 2500 and 3500 4WD trucks. This comprehensive package replaces the failure-prone factory ball joints with Carli’s extreme-duty components, designed to withstand heavy loads and harsh environments without the use of isolating sleeves that often serve as point-of-failure locations.

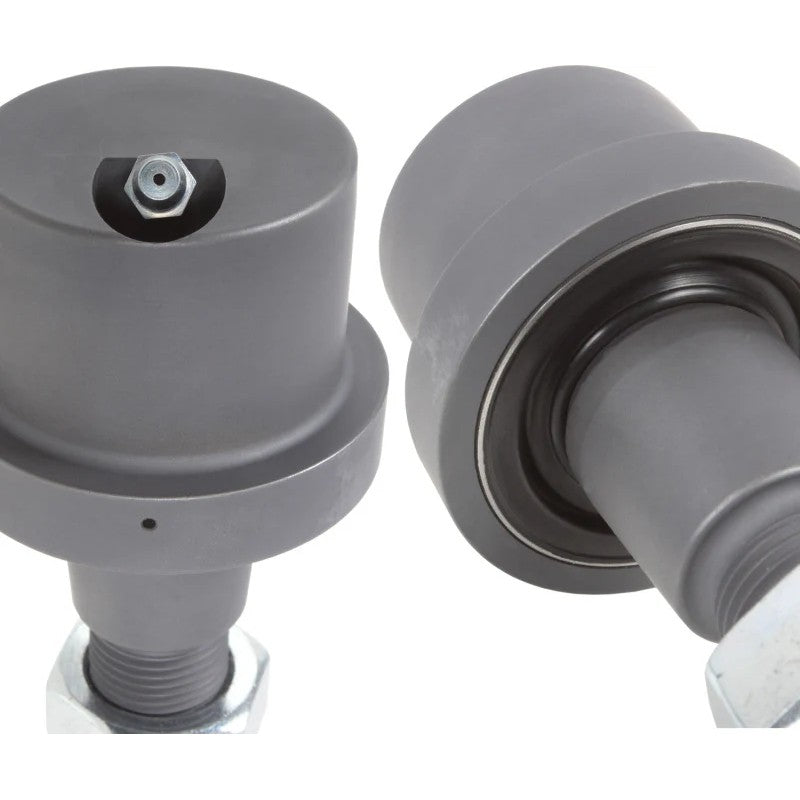

Carli Extreme-Duty upper ball joints utilize a unique design where the pin "hat" contacts the housing, creating a second wear surface to distribute lateral loads more effectively. The lower ball joints feature a bronze wear surface preloaded by a disc spring, safety washer, and snap ring, ensuring the wear surfaces remain tightly coupled for long-term steering precision. Each joint undergoes a specialized copper-masking and carburizing process, resulting in a case-hardness depth of 0.020"–0.025" on the wear surfaces while maintaining internal integrity.

• Manufacturer Part Number: CS-DBJP-14
• Includes: 2 upper ball joints, 2 lower ball joints, installation tool, and Redline CV2 grease.
• Materials: Carburized steel with corrosion-resistant gray coating and Viton environmental seals.
• Maintenance: Accessible grease fittings (recessed and angled on the lower joints for protection).
• Warranty: Manufacturer lifetime warranty against excessive play.
• Construction: No-liner design eliminates plastic or Teflon components that degrade over time.
