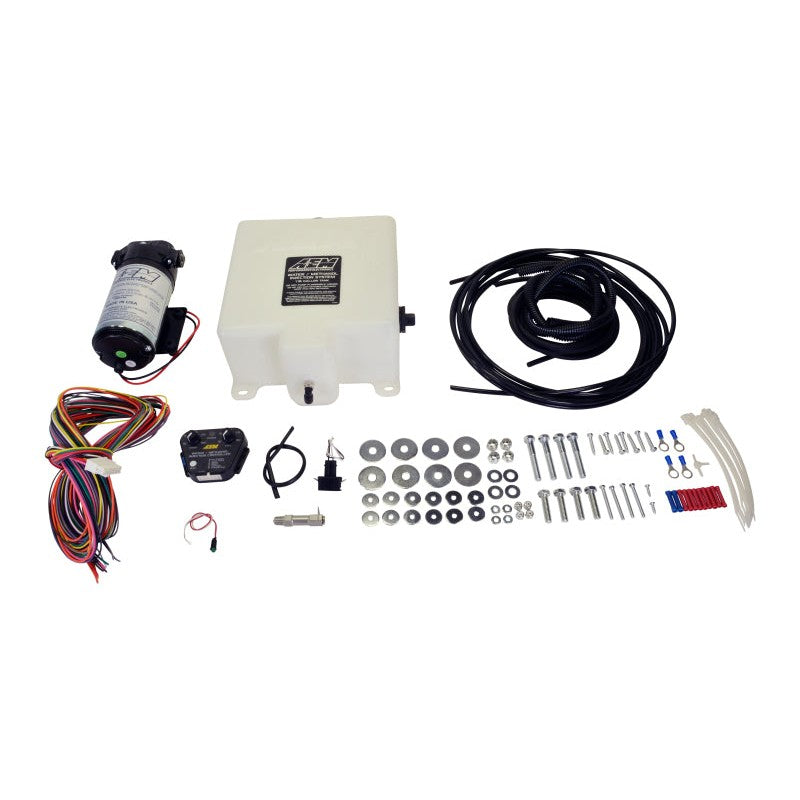

AEM V3 1.15 Gallon Water/Methanol Injection Kit with Multi-Input Controller (30-3350)

The AEM V3 Water/Methanol Injection Kit (MPN 30-3350) is a versatile cooling and detonation suppression system designed for forced induction and high-performance engines. This comprehensive kit features a multi-input progressive controller capable of operating via boost pressure, a 0-5V analog signal, or a frequency signal, providing precise fluid delivery based on engine load.

The system includes a 1.15-gallon tank with an integrated anti-starvation reservoir and a conductive low-fluid sensor for reliable monitoring. Performance is driven by a heavy-duty, high-pressure recirculation pump featuring a Santoprene diaphragm and EPDM seals for chemical resistance. A precision-machined billet-aluminum injector with an integral check valve ensures clean atomization through three included interchangeable nozzles (250cc/min, 500cc/min, and 1,000cc/min) to match your specific horsepower requirements.

• V3 Multi-Input Controller: Progressive design with boost, 0-5V, and frequency inputs, featuring large adjustment knobs and integrated fuse/status light.
• Billet Injector: High-flow billet-aluminum design with an internal check valve to prevent unintended flow or siphoning.
• High-Pressure Pump: Quiet, smooth-operating pump with integral fittings and corrosion-resistant seals.
• Advanced Safety: Features an integrated "Boost Safe" failsafe output and an LED dash light for system status and low-fluid warnings.
• Heavy-Duty Tank: 1.15-gallon capacity with positive-lock connectors and built-in reservoir to prevent pump cavitation during cornering.
• Complete Installation: Includes 20 feet of high-pressure Nylon injection tubing and a terminated wiring harness with positive-lock connectors.
