The ARB 0740202 High Flow Reinforced Hose is engineered for reliable air delivery within your vehicle's on-board air system. Constructed with a high-grade PTFE inner liner and a durable stainless steel braided exterior, this 0.5-meter hose is designed to withstand the significant heat and pressure generated by high-output compressors during extended use.

• Material: High-flow stainless steel braided PTFE for superior heat resistance and durability.
• Fittings: JIC-4 connectors for secure, leak-free integration with ARB air systems.
• Length: 0.5 meters (approx. 19.6 inches).
• Application: Designed for routing air from ARB compressors to manifolds, tanks, or remote coupling points.
• Reliability: Heavy-duty reinforcement prevents line expansion and ensures consistent air flow.
• Part Number: 0740202

Engineered for reliable air delivery in demanding environments, this ARB high-flow hose connects your ARB compressor to your vehicle's air system. At 0.3 meters (approx. 1 foot) in length, it serves as a durable leader hose or short-run connection point where heat and abrasion resistance are critical.

The hose features a PTFE (Teflon) inner core that handles high temperatures without degrading, encased in a rugged stainless steel braid to prevent kinking and protect against external damage. It comes factory-terminated with JIC-4 fittings for a secure, leak-free seal.

• Manufacturer Part Number: 0740201
• Length: 0.3m (300mm)
• Fitting Type: JIC-4
• Material: Stainless Steel Braided PTFE
• Application: High-flow air delivery for ARB compressors and air lockers

The ARB Hose Coupling Dust Cap is an essential maintenance accessory for protecting your vehicle's pneumatic system. Specifically engineered to prevent dust, grit, and debris ingress, this cap ensures that your female air fittings remain clean and functional even in harsh off-road environments.

This dust cap is designed to fit ARB US Industrial Standard (ISO 6150 B) female fittings that feature a rubber heat grip. By shielding the internal coupling mechanism from contamination, it prevents seal damage and ensures a reliable, leak-free connection every time you air up.

• Prevents dust and contaminant ingress into female air fittings
• Compatible with ARB US Industrial Standard (ISO 6150 B) fittings
• Specifically fits ARB fitting part numbers 0740111 and 0740112
• Designed for use with rubber heat grip couplings
• Manufacturer Part Number: 0740113

The ARB Hose Coupling (0740112) is a heavy-duty US Industrial Standard (ISO 6150 B) fitting designed for reliable air system integration. This coupling features a 1/4" x 18 NPT male thread on one end and a female quick-disconnect on the other, allowing you to seamlessly connect an ARB high-temperature inflation hose to any ARB compressor, air tank, or manifold kit.

• Standard: US Industrial Standard (ISO 6150 B)
• Thread Size: 1/4" x 18 NPT Male
• Application: Connects ARB inflation hoses to 1/4" NPT ports on compressors and tanks
• Manufacturer Part Number: 0740112
• Quantity: 1-Pack

The ARB 0740111 Remote Air Line Hose Coupling Kit provides a professional, surface-mounted connection point for your vehicle's onboard air system. This fitting allows you to relocate your air source to an easily accessible panel, bumper, or cargo area, eliminating the need to reach into hot or cramped engine bays to connect an inflation hose.

Built for durability and high-temperature performance, this coupling features a US Industrial Standard (ISO 6150 B) female socket on the front and a JIC-04 (37-degree flare) male fitting on the rear. The integrated M18 threads allow for a secure bulkhead or panel-mount installation. This unit is specifically designed to integrate with ARB 07402XX series hoses and requires 0740101 or 0740105 fittings for a complete setup.

• Manufacturer Part Number: 0740111
• Interface: US Industrial Standard (ISO 6150 B) Female to JIC-04 37-degree Flare Male
• Mounting: M18 panel mount for secure surface installation
• System Context: Designed for use with ARB high-temperature inflation hoses and onboard compressors
• Quantity: Sold as a single unit (1-Pack)

The ARB 0740110 is a specialized 90-degree elbow fitting designed to facilitate clean air system plumbing in confined spaces. These fittings allow you to connect a standard 1/4" NPT port, such as those found on ARB CKM series compressors and manifolds, to JIC-04 (37-degree flare) 07402XX series stainless braided PTFE hoses. By using a 90-degree bend at the port, you eliminate the risk of hose fatigue caused by sharp bends in tight quarters.

Built for the rigors of off-road use, these fittings are constructed from nickel-plated brass to provide long-term corrosion resistance in engine bays or chassis-mounted environments. This 2-pack ensures you have the necessary hardware to complete a front-to-back on-demand air setup.

• Material: Nickel-plated brass for superior corrosion resistance
• Design: 90-degree elbow for high-clearance routing
• Fitting A: JIC-04 (37-degree flare) Male
• Fitting B: 1/4" NPT Male
• Compatibility: Ideal for ARB CKM compressors and 07402XX series hoses
• Quantity: 2 fittings per pack
• MPN: 0740110

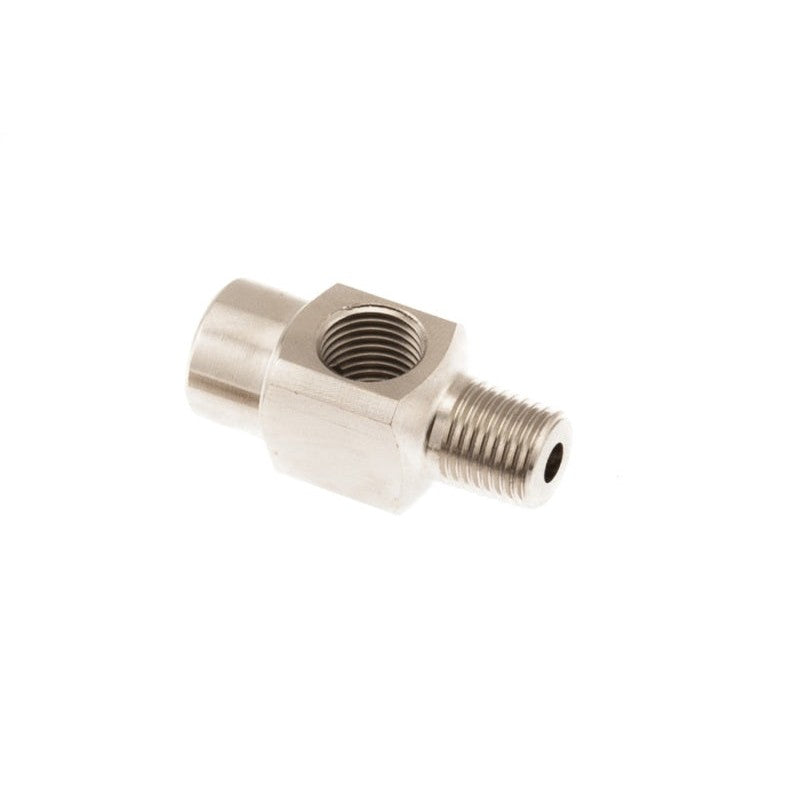

This ARB 1/4" NPT Tee Adapter is engineered to split a single 1/4" NPT port into two outlets, providing a versatile plumbing solution for onboard pneumatic systems. It is specifically designed for use with ARB air compressors, air tanks, and manifold kits where port space is limited.

This fitting is particularly useful for technicians and DIY installers who need to gain an additional 1/4" NPT outlet on an ARB compressor while maintaining the connection for the factory-supplied pressure switch. The 3-way configuration ensures a reliable, leak-free split for air lines, gauges, or sensors.

• Configured as a 3-way tee with one male and two female ports
• Standard 1/4-inch NPT threading for universal compatibility with ARB components
• Sold as a 2-pack for complete system plumbing
• Manufacturer Part Number: 0740106

The ARB Air Line Adapter Fitting (0740105) provides a reliable transition between JIC-04 and 1/8 in BSPP ports, common in air locker and compressor manifold systems. These adapters are engineered for high-pressure pneumatic applications, featuring a 37-degree flare on the JIC side and a parallel thread with a dedicated O-ring seal on the BSP side for a leak-free connection.

• Interface: JIC-04 (37-degree flare) to 1/8 in BSP Parallel (BSPP).
• Durable Construction: Manufactured from nickel-plated brass for superior corrosion resistance and longevity.
• Installation: 14mm hex/spanner size allows for easy tightening with standard hand tools.
• Sealing: Includes pre-installed O-ring for a secure, airtight seal on the 1/8 in BSPP port.
• Package Includes: Two (2) individual adapter fittings.
• MPN: 0740105

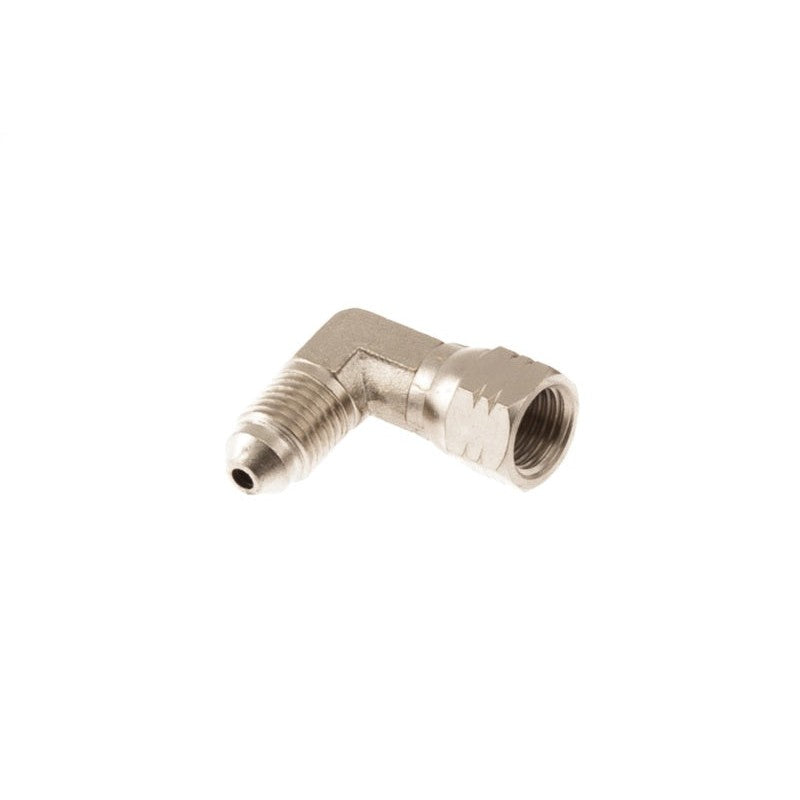

The ARB 0740104 is a specialized 90-degree elbow fitting designed for pneumatic systems where space is limited and air lines must clear tight obstructions. This fitting allows you to connect a male JIC-04 37-degree flare source—such as an air compressor outlet—to a hose without putting unnecessary strain on the line or risking a kink.

Constructed for high-pressure durability, these fittings feature a parallel thread design with an integrated O-ring seal for a leak-proof connection. This 2-pack ensures you have the necessary hardware for both front and rear locker setups or secondary air tank plumbing.

• Part Number: 0740104
• Connection Type: JIC-04 37-degree flare (Male to Female)
• Angle: 90-degree elbow
• Seal: Parallel fitting with O-ring seal
• Quantity: Sold as a pack of 2 fittings

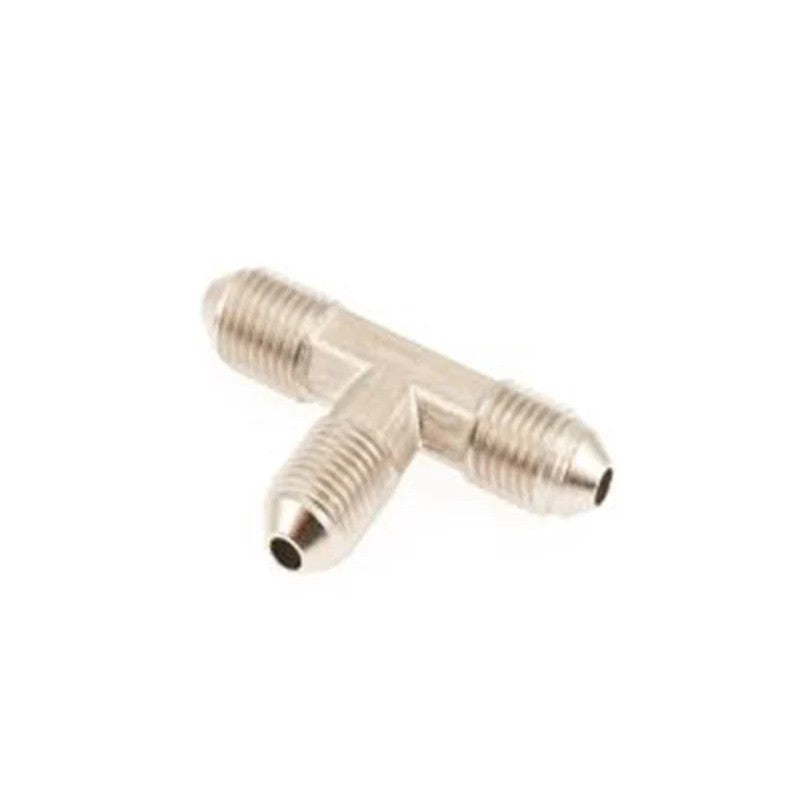

The ARB JIC-04 37-Degree Male Flare 3-Way Adapter Tee is designed to split air flow from a single hose into two separate lines. Engineered for reliability in demanding off-road air systems, these fittings are commonly used when plumbing multiple air lockers or custom compressor manifolds.

Constructed from nickel-plated brass, these fittings provide excellent corrosion resistance and mechanical strength. The JIC-04 37-degree male flare design ensures a high-pressure, leak-free connection when paired with compatible air lines and fittings. This kit includes two adapter tees to accommodate comprehensive system routing.

• Part Number: 0740103
• Fitting Type: 3-Way Adapter Tee
• Connection: JIC-04 37-Degree Male Flare
• Material: Nickel Plated Brass
• Quantity: Pack of 2

The ARB 0740102 JIC-04 Male Flare Adapter is a precision-engineered fitting designed for reliable air line connections in high-pressure pneumatic systems. This adapter features a standard JIC-04 37-degree male flare on both ends, making it an essential component for extending air lines or adapting ports on ARB air compressors and air locker accessories.

Constructed from nickel-plated brass, these fittings provide superior corrosion resistance and long-term durability in harsh off-road environments. The 14mm spanner hex allows for secure tightening with standard wrenches, ensuring a leak-free seal for your onboard air system.

• Manufacturer Part Number: 0740102
• Fitting Type: JIC-04 Male to JIC-04 Male Flare
• Flare Angle: 37 Degrees
• Material: Nickel-Plated Brass
• Spanner Hex Size: 14mm
• Quantity: Set of 2 Fittings

Ensure a secure, leak-free connection in your vehicle's air system with this ARB air line adapter fitting. Designed to convert a standard 1/4" NPT tapered thread to a JIC-04 male connection, these fittings are essential for plumbing air lockers, compressors, and custom pneumatic setups. The JIC-04 end features a 37-degree flare for a reliable mechanical seal.

Constructed from nickel-plated brass, these adapters offer superior corrosion resistance and durability compared to standard unfinished fittings. The 14mm spanner size allows for easy installation with common shop tools. These are genuine ARB components, engineered to meet the high-pressure demands of off-road air systems.

• Manufacturer Part Number: 0740101
• Threads: 1/4" NPT Tapered Male to JIC-04 Male
• Fitting Type: 37-Degree Flare
• Material: Nickel-Plated Brass
• Wrench/Spanner Size: 14mm
• Quantity: Pack of 2

This genuine ARB Safari replacement grill is designed specifically for older-style Safari Snorkel air rams. Unlike later models that use a snap-on interface, this grill is engineered for air rams that require a screw-on attachment to the main body.

Replacing a damaged or missing grill is essential for maintaining the integrity of your snorkel system. It serves as the primary barrier against large debris, leaves, and insects, ensuring your engine's intake remains clear without restricting airflow. Manufactured to the same standards as the original component, it ensures a precise fit and long-term durability in demanding off-road environments.

• Designed for Safari Snorkel air rams with screw-on grills
• Durable construction to withstand UV exposure and trail debris
• Direct replacement for damaged or lost grills
• Restores essential debris protection for the air intake system
• Manufacturer Part Number: 000135600
