The Baja Designs LP Series Controller Module Harness (MPN: 640168) is the essential electrical interface required to link your LP Series LED auxiliary lights with the Baja Designs digital control system. This harness is purpose-built to handle the power requirements of high-output lighting while maintaining a secure, weather-resistant connection in harsh off-road environments.

• Specifically designed for use with Baja Designs LP Series lights (LP4, LP6, and LP9)
• Enables seamless integration with the LP Series Digital Controller Module
• High-quality wiring and connectors for maximum conductivity and durability
• Simplified plug-and-play design for efficient installation
• Manufacturer Part Number: 640168

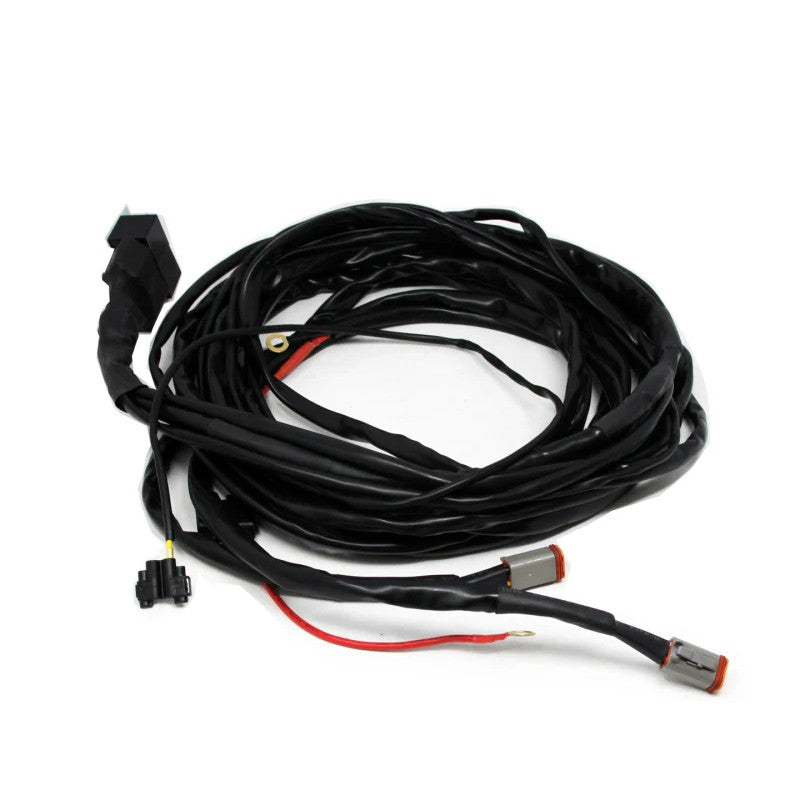

The Baja Designs Upfitter Lock Out Harness (MPN 640167) is a specialized electrical component designed for enthusiasts integrating LP6 or LP9 LED lights with factory-installed upfitter switches. This harness provides a reliable solution for managing lighting modes, allowing users to isolate or "lock out" specific functions to ensure the lights operate correctly within the vehicle's factory switch logic.

• Specifically engineered for use with Baja Designs LP6 and LP9 series lights.
• Optimized for vehicles equipped with factory auxiliary or upfitter switch panels.
• Provides a clean, professional-grade wiring interface that simplifies complex mode management.
• Heavy-duty construction with weather-sealed connectors for long-term durability in off-road environments.
• Manufacturer Part Number: 640167

Integrate your auxiliary lighting seamlessly with the Baja Designs Hi-Beam Harness, specifically designed for Pro and Sport series lights. This harness allows you to trigger up to two auxiliary lights automatically via your vehicle's factory high-beam circuit, providing a professional wiring solution that eliminates the need for independent dash switches during off-road use.

• Manufacturer Part Number: 640164
• Connector Type: 2-Pin
• Total Capacity: 150 Watts
• Configuration: Supports up to 2 lights
• Function: Syncs auxiliary lighting to factory high-beam activation

The Baja Designs 640163 wiring harness is designed to streamline the installation of auxiliary lighting by integrating directly with your vehicle's high-beam circuit. Specifically engineered for Pro and Sport series lights, this harness allows for seamless operation, triggering your auxiliary lights whenever the factory high beams are activated.

Built to handle demanding off-road environments, this harness features 3-pin connectors and is rated for a maximum load of 150 Watts. It is configured to power up to two lights simultaneously, providing a reliable electrical foundation for your lighting system.

• Compatible with Baja Designs Pro and Sport series lights
• 3-Pin connector configuration
• 150 Watt maximum power capacity
• Supports a maximum of 2 lights
• Integrated high-beam trigger functionality
• Manufacturer Part Number: 640163

Integrate turn signal functionality into your Baja Designs RTL (Rear Termination Line) chase bar with this specialized wiring harness. Designed for off-road enthusiasts and racers, this harness allows you to add blinker signals to your existing rear lighting setup, improving communication and safety on the trail.

• Specifically engineered for compatibility with Baja Designs RTL series light bars
• Simplifies the wiring process for adding turn signal functions
• Built with high-quality connectors and weather-resistant sleeving for harsh environments
• Plug-and-play design reduces the need for complex custom splicing
• Manufacturer Part Number: 640127

The Baja Designs 640119 wiring harness is engineered specifically to power and control up to two XL Pro or XL Sport series LED auxiliary lights. This heavy-duty harness simplifies installation while providing reliable power delivery and integrated protection for your vehicle's electrical system.

Featuring a dedicated 3-position toggle switch, this harness allows you to utilize the "Mode" function on supported lights, enabling dimming or auxiliary features where applicable. The assembly includes high-quality wiring with protective sheathing, a weather-sealed relay, an inline fuse, and plug-and-play connectors for a secure, moisture-resistant interface.

• Compatible with Baja Designs XL Pro and XL Sport LED lights
• Supports up to two (2) lights max
• Integrated 3-position toggle switch for On/Off/Mode functionality
• Heavy-duty wiring for high-output applications
• Includes relay and inline fuse for circuit protection
• Manufacturer Part Number: 640119

The Baja Designs 640115 wiring harness provides a reliable, plug-and-play solution for powering high-performance auxiliary lighting. This heavy-duty harness is specifically designed to handle the electrical demands of the OnX6, S8, XL Pro, and XL Sport series, ensuring your lighting system operates at peak efficiency without straining your vehicle's factory electrical system.

• Supports a maximum of two (2) Baja Designs lights
• Engineered for compatibility with OnX6, S8, XL Pro, and XL Sport models
• Simplifies installation with pre-terminated connectors and an integrated switch
• Built with durable materials to withstand the rigors of off-road environments
• Manufacturer Part Number: 640115

Fits 2010-2021 Ford F-150 Raptor and SVT Raptor models.

The Baja Designs 640094 Upfitter Wiring Harness is specifically engineered to simplify the installation of OnX6 or S8 series LED light bars by integrating directly with the factory Ford upfitter switches. This harness eliminates the need for complex custom wiring, providing a clean, professional solution that utilizes the vehicle's existing auxiliary controls.

Designed for durability in off-road environments, this harness ensures a secure connection and reliable power delivery to your high-performance lighting. It is a direct-fit component for both the first and second-generation Raptor platforms.

• Specifically for Baja Designs OnX6 and S8 light bars
• Utilizes factory Ford auxiliary upfitter switches
• Plug-and-play integration for a clean installation
• Manufacturer Part Number: 640094

Simplify your auxiliary lighting installation with the Baja Designs Ford Raptor Upfitter Wiring Harness. This harness is specifically engineered to bridge the gap between your vehicle's factory auxiliary switch system and high-performance Baja Designs LED lights, providing a clean, professional solution that eliminates the need for custom wiring looms or intrusive splicing.

• Compatible with Baja Designs Squadron Pro, Squadron Sport, and S2 series LED lights.
• Directly integrates with the Ford Raptor factory upfitter/auxiliary switch panel for seamless control.
• Heavy-duty construction designed to withstand off-road vibration and environmental exposure.
• Plug-and-play style connectivity helps maintain the integrity of your OEM electrical system.
• Includes high-quality connectors and protective sleeving.
• Manufacturer Part Number: 640093

The Baja Designs Squadron 2.0 2-Light Wiring Harness provides a robust, heavy-duty electrical solution for your high-performance lighting setup. Engineered specifically for the Squadron 2.0 series, this harness allows for the simultaneous operation of two lights, ensuring consistent power delivery and simplified cable management.

This harness features high-quality 4-pin Deutsch-style connectors, known in the industry for providing a secure, weatherproof seal against dust, dirt, and moisture. The assembly includes a relay and fuse to protect your vehicle's electrical system, along with a toggle switch for convenient control from the cabin. Whether you are replacing a worn assembly or finishing a new install, this harness is built to withstand the vibration and thermal demands of off-road use.

• Manufacturer Part Number: 640055
• Configuration: 2-Light splitter for powering two units
• Connector Type: 4-Pin Deutsch-style for a weatherproof seal
• Integrated relay and fuse holder for circuit protection
• Includes toggle switch and necessary wiring for complete installation
• Engineered for Baja Designs Squadron 2.0 series optics

Streamline your auxiliary lighting setup with the Baja Designs Universal LP4/LP6 Upfitter Wiring Harness. This heavy-duty harness is engineered to provide a professional-grade connection for vehicles equipped with factory upfitter switches. It allows for the clean integration of up to five LP4 or LP6 LED lights, ensuring reliable power distribution and simplified cable management for high-output lighting configurations.

• Manufacturer Part Number: 64-0324-UP
• Compatibility: Specifically designed for Baja Designs LP4 and LP6 series lights
• Capacity: Supports a maximum of 5 light units
• Configuration: Plug-and-play connection for factory auxiliary/upfitter switch systems
• Durability: Features weather-sealed connectors and high-grade insulation to withstand harsh off-road environments

The Baja Designs 3-Pin 5ft Extension Cable provides the extra reach necessary for mounting high-performance LED lights on roof racks, rear bumpers, or custom light bars. This heavy-duty cable ensures a secure, weather-resistant connection between your light and the main wiring harness without sacrificing signal or power delivery in harsh off-road environments.

• Compatible with Baja Designs XL Series, S8, and OnX6 LED lights
• Connector Type: 3-Pin
• Length: 5 Feet
• Durable outer sheathing protects against abrasion and weather exposure
• Plug-and-play integration with existing Baja Designs harnesses
• Manufacturer Part Number: 64-0169

The Baja Designs 2in LED Horizontal Mount provides a secure, vibration-resistant solution for attaching auxiliary lighting to 2-inch diameter horizontal tubes. Engineered for the rigors of off-road use, this mount ensures your LED lights remain fixed in position regardless of terrain or trail conditions. It is an essential component for mounting lights to roll cages, bumpers, or light bars where horizontal orientation is required.

• Precision-fit for 2-inch diameter horizontal tubing
• Constructed for high-strength durability in off-road environments
• Designed to interface seamlessly with Baja Designs LED light systems
• Streamlined horizontal profile for clean installation
• Manufacturer Part Number: 617610

Secure your auxiliary lighting with the Baja Designs 1.75-inch LED Horizontal Mount. This precision-engineered bracket is designed to clamp onto any horizontal 1.75-inch OD (outside diameter) tubing, providing a stable, vibration-resistant mounting point for LED pods and bars. It is an ideal solution for attaching lighting to roll cages, bumpers, or roof racks where a horizontal orientation is required for proper beam alignment.

• Fits 1.75-inch diameter horizontal tubing or roll bars
• Allows for secure mounting of auxiliary LED lights without welding or fabrication
• Durable construction designed to withstand off-road vibration and exposure
• Simplifies lighting installation on tube-chassis vehicles or accessory bars
• Manufacturer Part Number: 617608

The Baja Designs 1.5-inch LED Horizontal Mount provides a rugged, secure solution for attaching auxiliary lighting to vehicle tubing. Specifically engineered for 1.5-inch outer diameter (OD) bars, this mount is an essential component for installing LED pods or light bars onto roll cages, bull bars, and roof racks that require a horizontal mounting orientation.

• Fits 1.5-inch diameter horizontal tubing
• Designed for high-vibration off-road environments to ensure stable light positioning
• Low-profile mounting solution for a clean, integrated look
• Manufacturer Part Number: 617605

Streamline your off-road lighting configuration with the Baja Designs 55-inch Wiring Harness Splitter. This specialized component is designed to expand your existing electrical setup, allowing you to power multiple auxiliary lights from a single primary harness without compromising circuit integrity. Built to the same rigorous standards as their light systems, this splitter ensures a secure, weather-resistant connection in demanding environments.

• Specifically compatible with Baja Designs OnX, S8, XL Pro, and XL Sport series LED lights
• Total length: 55 inches for versatile routing options
• Simplifies complex multi-light installs by reducing redundant wiring
• Features high-quality connectors for a plug-and-play interface
• Manufacturer Part Number: 613609

Simplify your off-road lighting electrical system with the Baja Designs Wire Harness Splitter (613608). This heavy-duty Y-adapter allows you to power and control two LED light bars or pods from a single wiring harness, reducing the need for redundant cable runs and extra switches in your cab.

Built to handle the high current demands of performance lighting, this splitter features weather-resistant connectors and durable insulation that withstands the heat and vibration of engine bays and chassis mounting. It provides a clean, plug-and-play solution for expanding your lighting array without cutting or splicing factory-style leads.

• Compatible Series: Baja Designs OnX, S8, XL Pro, and XL Sport
• Application: 2-pin connector splitter (1-to-2)
• Installation: Plug-and-play integration with compatible Baja Designs harnesses
• Manufacturer Part Number: 613608

Achieve a professional, factory-style finish on your auxiliary lighting installation with the Baja Designs Wire Hider Kit. This 9-foot universal trim kit is designed to securely route and conceal exposed wiring along windshield channels, body gaps, or roof racks, protecting your electrical leads from UV exposure and potential snags on the trail.

Whether you are mounting a 50-inch light bar or a set of ditch lights, this kit ensures a streamlined appearance by eliminating loose cables. The flexible material conforms to your vehicle's contours for a seamless look and durable performance in harsh off-road environments. It is an essential finishing touch for any high-quality lighting build.

• Length: 9 Feet
• Application: Universal Fitment
• Function: Protects and conceals exposed electrical wiring
• Part Number: 610016

This universal wire management kit fits all vehicle makes and models for auxiliary lighting installations.

The Baja Designs Universal Wire Hider Kit provides a clean, professional solution for managing exposed electrical leads. This 3-foot length of wire management track is engineered to conceal and protect auxiliary lighting harnesses, preventing snags and eliminating the unsightly look of loose wires across roofs, A-pillars, or bumpers.

• Length: 3 Feet
• Installation: Secure adhesive backing for surface mounting
• Application: Universal fitment
• Function: Protects wiring from environmental exposure and wind vibration
• Manufacturer Part Number: 610015

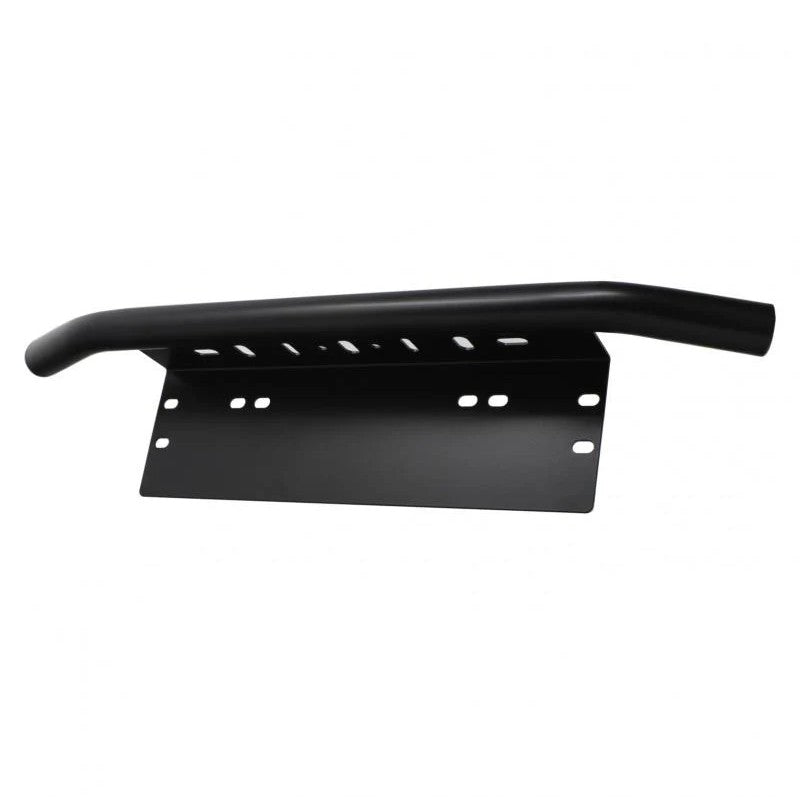

The Baja Designs Universal Lighting License Plate Mount (MPN 610003) offers a versatile, bolt-on solution for adding auxiliary lighting to vehicles with limited mounting space. By utilizing the factory license plate mounting points, this bracket allows you to secure LED pods or small light bars without the need for custom fabrication or permanent modifications to your bumper or grille.

• Universal fitment compatible with US, EU, and AU license plate hole patterns.
• Simplifies auxiliary light installation on daily drivers and overland builds.
• Provides a stable, vibration-resistant mounting surface for LED lighting.
• Manufacturer Part Number: 610003

Fits 2024-2026 Toyota Tacoma (SR, SR5, TRD PreRunner, TRD Sport, TRD Off-Road, Limited, Trailhunter, and TRD Pro).

The Baja Designs 600101 Upfitter Harness is engineered to provide a clean, reliable connection between your auxiliary lighting and the factory-installed upfitter switches in your 2024-2026 Toyota Tacoma. This vehicle-specific harness allows you to control off-road lights directly from your dashboard using the OE switch panel, maintaining a factory look and feel without the need for additional aftermarket toggles or invasive dashboard modifications.

• Manufacturer Part Number: 600101
• Designed for direct integration with factory Toyota upfitter switches
• Enables clean wiring for auxiliary light setups
• Compatible with all 2024-2026 Tacoma trim levels

The Baja Designs Squadron 2.0 10ft Extension Harness provides the additional length required for complex wiring routes on larger vehicles, roof racks, or custom bumper configurations. Built to withstand off-road environments, this extension ensures you can place your lighting exactly where needed without compromising electrical integrity.

• Manufacturer Part Number: 600047
• Length: 10 Feet
• Connector Style: 4-Pin Deutsch
• Application: Specifically engineered for Squadron 2.0 series wiring systems
• Construction: Weather-sealed connectors and durable outer sheathing for maximum protection against debris and moisture
• Installation: Simple plug-and-play design between the light and main harness

The Baja Designs Squadron-R 2.0 Pro delivers professional-grade lighting in a classic round housing, optimized for both aesthetic appeal and high-performance output. This pair of LED lights features the Baja Amber lens, specifically engineered to improve contrast and reduce glare in challenging environments like dust, fog, or snow.

The Wide Cornering pattern utilizes a 42-degree flattened horizontal beam to provide a wide field of vision, making it an essential upgrade for technical trails and cornering safety. Built with a hard-anodized machined aluminum housing and stainless steel hardware, these lights are designed to withstand extreme off-road conditions while maintaining optimal thermal management.

• Series: Squadron-R 2.0 Pro
• Beam Pattern: Wide Cornering (42°)
• Color: Baja Amber
• Material: Hard Anodized Machined Aluminum
• Included: Pair of LED Lights, Mounting Brackets
• Manufacturer Part Number: 5978152

Experience high-performance off-road illumination with the Baja Designs Squadron-R 2.0 Pro LED Wide Cornering pair. These compact, round-bezel lights are engineered to deliver massive lumen output in a housing that fits traditional bumper, pillar, or fog light mounts. The Squadron-R 2.0 Pro utilizes advanced optics and CopperDrive power management to ensure the LEDs run at their maximum potential without overheating.

The Wide Cornering beam pattern provides a 42-degree flattened horizontal beam, making it the ideal choice for navigating tight trails, technical corners, and low-visibility conditions like dust, fog, or snow. Built for the harshest environments, these lights feature hard-coated polycarbonate lenses and an aircraft-grade aluminum housing.

• Light Pattern: Wide Cornering (42°)
• Series: Pro (High-Output)
• Housing Shape: Round (R-series)
• Includes: Pair of LED lights and mounting hardware
• Manufacturer Part Number: 5978052

Enhance your off-road visibility in challenging conditions with the Baja Designs Squadron-R 2.0 Sport Wide Cornering LED light pair. The Squadron-R 2.0 series features a round bezel design specifically engineered for integration into bumpers or aftermarket housings that require a circular profile. This Sport model provides a balance of performance and value, making it an essential upgrade for technical trails.

The Wide Cornering lens pattern creates a flattened horizontal beam that provides superior peripheral lighting, essential for low-speed maneuvering and cornering. Finished in Baja Amber, these lights are designed to pierce through dust, fog, and snow by minimizing glare and improving contrast in heavy airborne particulate.

• Wide Cornering Pattern: Optimized for technical driving, dust, and fog with a broad horizontal spread.
• Baja Amber Lenses: Specialized color temperature for superior visibility in adverse weather and high-dust environments.
• Round Bezel Design: Specifically suited for circular mounting locations and bumper pockets.
• Durable Construction: Engineered to withstand high-vibration off-road environments.

• Manufacturer Part Number: 5878152
• Product Series: Squadron-R 2.0 Sport
• Beam Pattern: Wide Cornering
• Light Color: Baja Amber
• Quantity: Pair (Two Lights)

The Baja Designs Squadron-R 2.0 Sport LED Work/Scene light pair provides high-intensity area illumination in a compact, round form factor. Designed for enthusiasts who need a smooth, wide beam, the Work/Scene pattern utilizes a 120-degree circular spread to light up technical trails, campsites, or work zones. The Squadron-R series features a round bezel specifically engineered to integrate with vehicles using circular mounting locations or bumper pockets.

• Optical Pattern: Work/Scene 120-degree circular beam for maximum near-field visibility.
• Sport Series Performance: High-output LED technology designed for durability and performance in harsh environments.
• Fitment: Round housing design for seamless mounting in circular apertures.
• Included: Two (2) Squadron-R 2.0 Sport LED lights and mounting hardware.
• Manufacturer Part Number: 5878062

Enhance your off-road visibility with the Baja Designs Squadron-R 2.0 Sport LED Driving/Combo pair. These round LED pods are specifically engineered for enthusiasts who need professional-grade lighting that fits into standard round bumper or fog light pockets. The Squadron-R 2.0 Sport series balances high-intensity output with a compact footprint, making it an ideal upgrade for trucks, SUVs, and UTVs requiring versatile lighting solutions.

• Driving/Combo Pattern: Equipped with both wide cornering and spot optics to provide a smooth blend of light for both near-field applications and distance illumination.
• Rugged Construction: Features a hard-anodized machined aluminum housing and a replaceable polycarbonate lens for maximum durability in harsh environments.
• Advanced Seal Technology: Utilizes MoistureBlock technology to remain waterproof, rainproof, and submersible even under extreme trail conditions.
• Serviceable Design: uService technology allows for easy lens and optic replacements to customize your beam pattern or repair trail damage.
• Specifications: Includes two LED pods; Manufacturer Part Number: 5878032.

The Baja Designs Squadron-R 2.0 Sport LED Spot Beam kit provides high-intensity illumination in a classic round housing designed to integrate seamlessly with modern bumpers and traditional light bars. Engineered for long-range visibility, the Spot pattern features a concentrated 9-degree beam that allows off-roaders to see hazards at higher speeds.

Built to endure harsh environments, these lights utilize a hard-coated polycarbonate lens and a powder-coated cast aluminum housing. The Squadron-R 2.0 Sport series incorporates proprietary MoistureBlock technology, ensuring the units remain waterproof and submersible even under pressure washing. This pair is a direct solution for enthusiasts seeking race-proven lighting performance in a compact, round form factor.

• Part Number: 5878012
• Beam Pattern: 9-Degree Spot for long-range penetration
• Lens Material: Hard-coated Polycarbonate
• Housing Material: Powder-coated Cast Aluminum
• Weatherproofing: IP69K Rated (Waterproof and Submersible)
• Hardware: Stainless steel mounting brackets included
• Standards: Exceeds MIL-STD810G (Mil-Spec Testing)

Fits select 2010-2018 Jeep Wrangler and Wrangler JK models including Rubicon, Sahara, Sport, Sport S, and X.

The Baja Designs Squadron-R Sport Fog Pocket Kit allows you to replace your weak factory fog lights with high-performance LED output while maintaining a clean, OE-style integration. Specifically designed for the Jeep Wrangler JK chassis, this kit utilizes vehicle-specific mounting brackets that bolt directly into the factory fog light locations. The Squadron-R Sport series provides a significant increase in visibility for both on-road and off-road driving, featuring durable housings and impact-resistant lenses built to withstand the rigors of the trail.

• Manufacturer Part Number: 587503
• Product Series: Squadron-R Sport
• Application: Vehicle-specific fog light replacement
• Mounting: Direct-fit brackets for factory fog pockets
• Included: Pair of LED lights, mounting brackets, and necessary hardware

The Baja Designs XL-R Sport LED light pair provides high-performance illumination in a classic round housing, engineered for enthusiasts who need both distance and peripheral lighting on the trail. This Driving/Combo pattern uses amber lenses to significantly improve visibility in dust, fog, and heavy silt by reducing glare and backscatter.

Constructed with durability and field-serviceability in mind, these lights feature the Baja Designs uService system, allowing you to replace or swap lenses and optics yourself. The ClearView optical technology ensures light is directed exactly where it is most effective for high-speed off-road navigation.

• Manufacturer Part Number: 577813
• Series: XL-R Sport
• Beam Pattern: Driving/Combo for comprehensive trail coverage
• Lens Color: Amber
• uService: User-replaceable lenses and optics
• ClearView: Proprietary optics for optimized light placement
• Protection: Limited Lifetime Warranty
