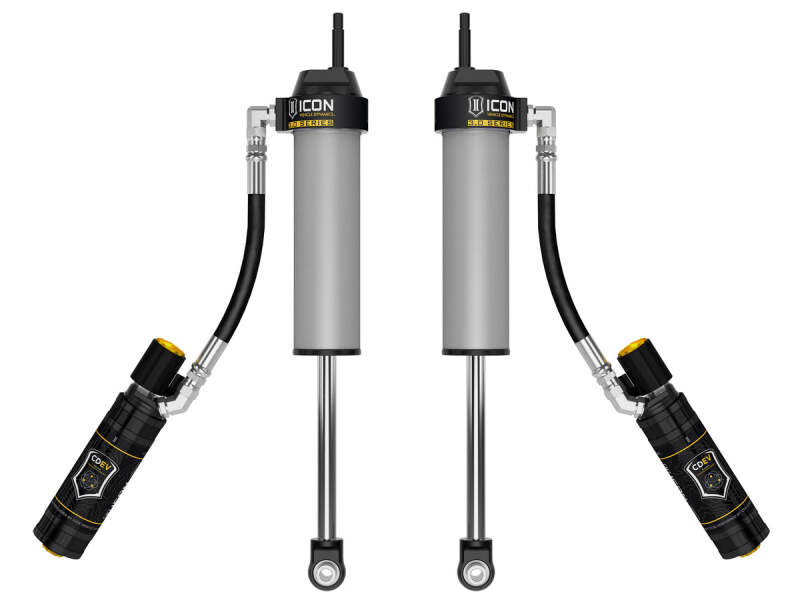

ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD 0-3" Lift 3.0 Series VS RR CDEV Front Coilovers, Pair

Fits 2017-2026 Ford F-250 and F-350 Super Duty 4WD models with 0-3" of front lift.

ICON Vehicle Specific (V.S.) 3.0 Series coilovers are engineered to provide maximum damping control and heat dissipation for heavy-duty trucks pushed to the limit. These shocks feature a 3.0-inch body diameter that provides 50% more piston surface area than standard 2.5 Series shocks, resulting in significantly more stability and vehicle control during high-speed off-road use or heavy towing. The remote reservoir design further increases oil volume and external surface area to prevent shock fade under sustained hard use.

This kit includes ICON’s Compression Damping Electronic Valve (CDEV) technology. This electronically controlled valve meters oil flow in less than 40ms, providing infinitely variable damping force. When paired with the ICON Intelligent Control (IIC) system, the shocks use an onboard G-force sensor and gyroscope to predict terrain changes and adjust settings automatically. The system is fully tunable via a proprietary mobile app, giving you the ability to switch between street comfort and off-road performance instantly.

• 3.0" shock body diameter for increased oil capacity and 50% more piston area
• Compression Damping Electronic Valve (CDEV) for active, in-vehicle electronic tuning
• Remote reservoir design for superior heat dissipation and consistent damping
• Cerakoted steel cylinders for maximum corrosion resistance in harsh environments
• 7/8" induction hardened, chrome plated shock shafts
• 6061 aircraft-grade CNC machined aluminum components
• Linear compression and digressive rebound piston design for unsurpassed ride quality
• Premium 5WT shock oil maintains consistent viscosity across wide temperature ranges
• Fully rebuildable and revalveable design
• Designed for 0-3" of front lift over stock height
