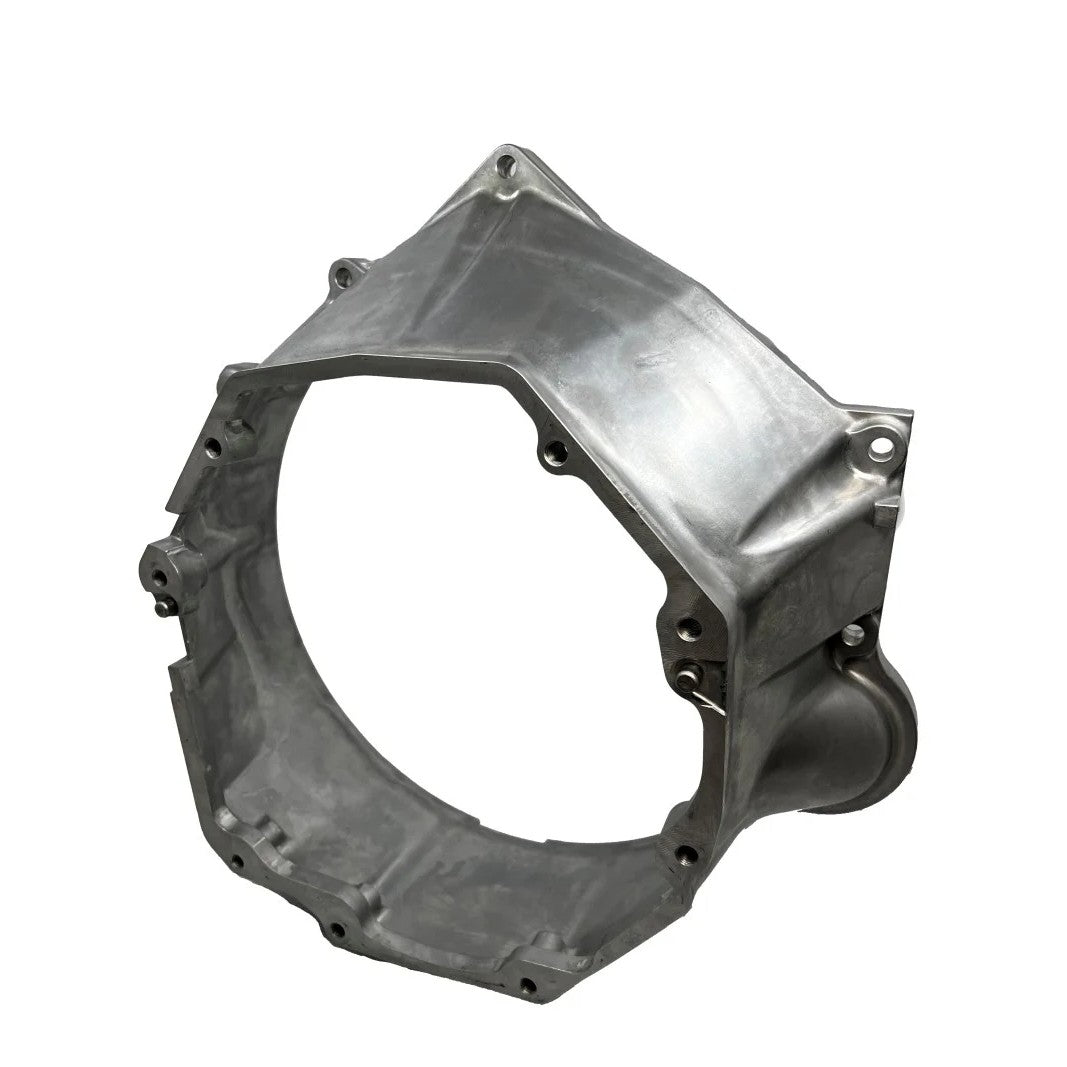

McLeod 8500 Aluminum Bellhousing for LS to T-56 & Magnum - Non-SFI (1998-2013 GM)

Fits select 1998-2013 Chevrolet, GMC, and Pontiac vehicles with LS-series engines, including Camaro, Corvette, Silverado, Sierra, and GTO. Designed as a lightweight solution for LS swap projects, the McLeod 8500 aluminum bellhousing provides precise alignment and a compact footprint for fitting T-56 and Magnum transmissions into tight tunnels.

This non-SFI rated unit is engineered for street and performance applications where weight savings are prioritized over racing certification. Because it is not SFI-rated, this bellhousing does not include or require a steel block plate, reducing rotating mass and simplifying installation. It is specifically compatible with T-56 transmissions originally intended for 1998-2002 LS1 F-body applications, as well as the GTO T-56 and various Magnum T-56 configurations.

• Manufacturer Part Number: 8500
• Material: Cast Aluminum
• Rating: Non-SFI (No block plate included)
• Transmission Compatibility: T-56 (LS-style), Magnum T56, TUET11009, TUET11012
• Engine Compatibility: GM LS-series engines
• Note: Does not fit 1992-1997 LT1-style T-56 transmissions
