Wilwood

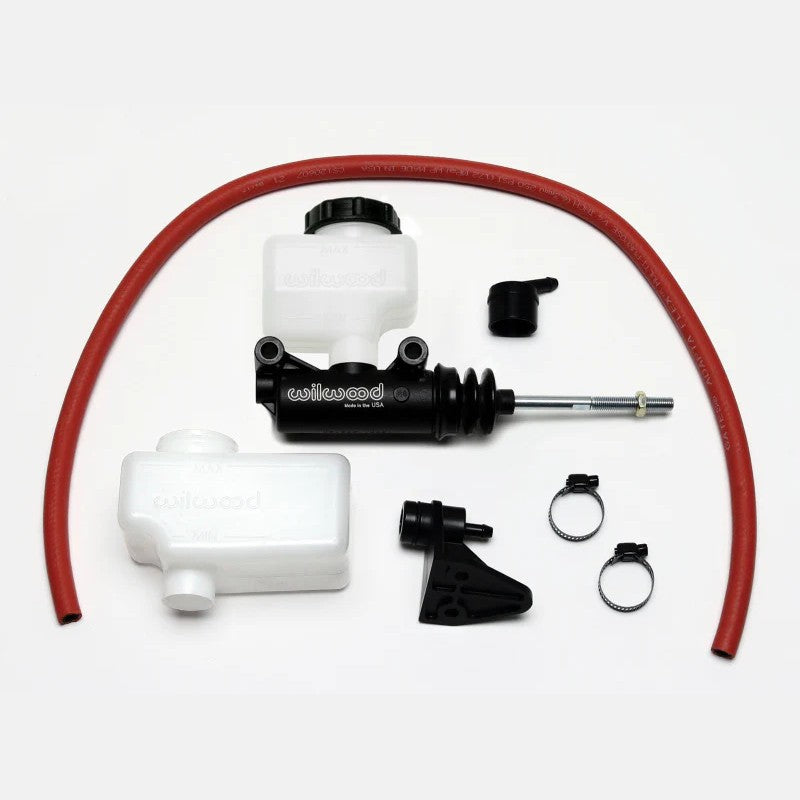

Wilwood Compact Combination Side Mount Master Cylinder Kit - 3/4in Bore (260-12385)
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
The Wilwood Compact Combination Side Mount Master Cylinder is engineered for high-performance applications where engine bay or chassis space is at a premium. By utilizing a 3.37-inch compact body, this unit provides 2.16 inches of additional clearance compared to standard full-size cylinders without sacrificing output capacity. The specialized side-mount design features integrated lugs with a 3.00-inch center-to-center distance, eliminating the traditional mounting flange for a streamlined installation in tight quarters.
- Bore Size: 3/4 inch
- Piston Stroke: 1.12 inches to meet or exceed full-size cylinder capacity
- Body Length: 3.37 inches for maximum clearance
- Mounting: Side-mount lugs with 3.00-inch centers
- Fluid Outlet: 1/8-27 NPT port at the top radius to minimize trapped air
- Fluid Inlet: 11/16-20 internal threads; includes standard reservoir
- Finish: Corrosion-resistant black E-coat on an aluminum body
- Part Number: 260-12385
Constructed from lightweight aluminum and finished with a durable black E-coat, this master cylinder resists harsh automotive fluids and environmental corrosion. The top-mounted NPT outlet simplifies the bleeding process by reducing the potential for air pockets within the bore.
Choose your Location
-
Atlus
1340 Cobb Dr, Unit 1, Eustis, FL 32736
352-234-4458
Mon – Fri: 8:30 am – 4:30 pm
Sat: 9:00 am – 2:00 pm
Sun: Closed
Product Comparison
How they are Different
|
__ __ |
|
|---|---|
| Description |
Description - __ |
| Rating |
Rating - __ |
| Vendor |
Vendor - __ |
| Color |
Color - __ |
|
|
Compare products ( / )
The Atlus Price Guarantee
If you can find the part for a lower price from an authorized dealer/shop, we'll match the price! Reach out to Hello@AtlusAuto.com, our live chat located at the bottom right of your screen, or request an Atlas Price Guarantee, or visit our dedicated APG page to submit a request.
Wilwood Compact Combination Side Mount Master Cylinder Kit - 3/4in Bore (260-12385)
This product will be available soon, but you can pre-order now to get on the list before others!
US Based Support - In Florida
30 Days Satisfaction Guarantee
Price Match
Our prices are updated daily to ensure we can offer you the best possible price. In the unlikely case that you have found a lower price, please contact us at hello@atlusauto.com and we'll do our best to answer your query right away!
Easy Financing
We've partnered up with Affirm/Shop!
Why use Affirm/Shop?
- Clear application process
- Friendly support team
- Spread a big payment interest-free
- Ability to buy what you want
How does it work?
- Add your purchase to cart
- Select Shop Payments at checkout
- Complete the application
- Compare any available finance options
Share:
The Wilwood Compact Combination Side Mount Master Cylinder is engineered for high-performance applications where engine bay or chassis space is at a premium. By utilizing a 3.37-inch compact body, this unit provides 2.16 inches of additional clearance compared to standard full-size cylinders without sacrificing output capacity. The specialized side-mount design features integrated lugs with a 3.00-inch center-to-center distance, eliminating the traditional mounting flange for a streamlined installation in tight quarters.
- Bore Size: 3/4 inch
- Piston Stroke: 1.12 inches to meet or exceed full-size cylinder capacity
- Body Length: 3.37 inches for maximum clearance
- Mounting: Side-mount lugs with 3.00-inch centers
- Fluid Outlet: 1/8-27 NPT port at the top radius to minimize trapped air
- Fluid Inlet: 11/16-20 internal threads; includes standard reservoir
- Finish: Corrosion-resistant black E-coat on an aluminum body
- Part Number: 260-12385
Constructed from lightweight aluminum and finished with a durable black E-coat, this master cylinder resists harsh automotive fluids and environmental corrosion. The top-mounted NPT outlet simplifies the bleeding process by reducing the potential for air pockets within the bore.
