BMR Cradle Bushing Lockout Kit for 2015-2024 Ford Mustang - Red (CB005R)

Fits 2015-2024 Ford Mustang EcoBoost, GT, V6, Shelby GT350, GT350R, GT500, Mach 1, Bullitt, and Dark Horse.

Eliminate wheel hop and improve rear-end stability with the BMR Suspension CB005R Cradle Bushing Lockout Kit. This kit is engineered to address excessive cradle bushing deflection, a primary cause of inconsistent handling and traction loss in S550 and S650 chassis. By capturing the inner bushing sleeves and the outer lip of the cradle cups, this system drastically reduces movement across all planes—fore, aft, lateral, and vertical—without the harshness of solid metal bushings.

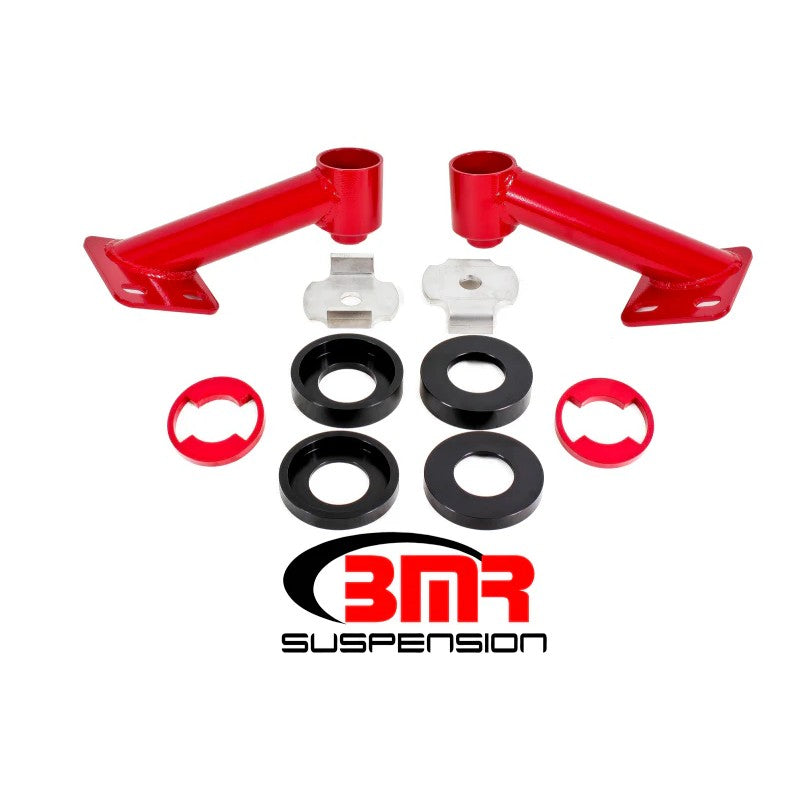

The kit includes heavy-duty cradle braces that replace the thin factory sheer plates. These braces utilize 1 5/8-inch DOM steel tubing and a large locating lug to ensure the subframe remains perfectly centered under the vehicle during high-load cornering and hard launches.

• Manufacturer Part Number: CB005R
• Red powder-coated finish for long-term durability
• CNC-machined 6061-T6 billet aluminum upper lockout rings
• Heavy-duty 1 5/8-inch DOM steel tubing cradle braces
• Corrosion-resistant stainless steel hardware included
• 100% bolt-on installation using factory mounting points
• Locates and centers the rear cradle to the chassis
