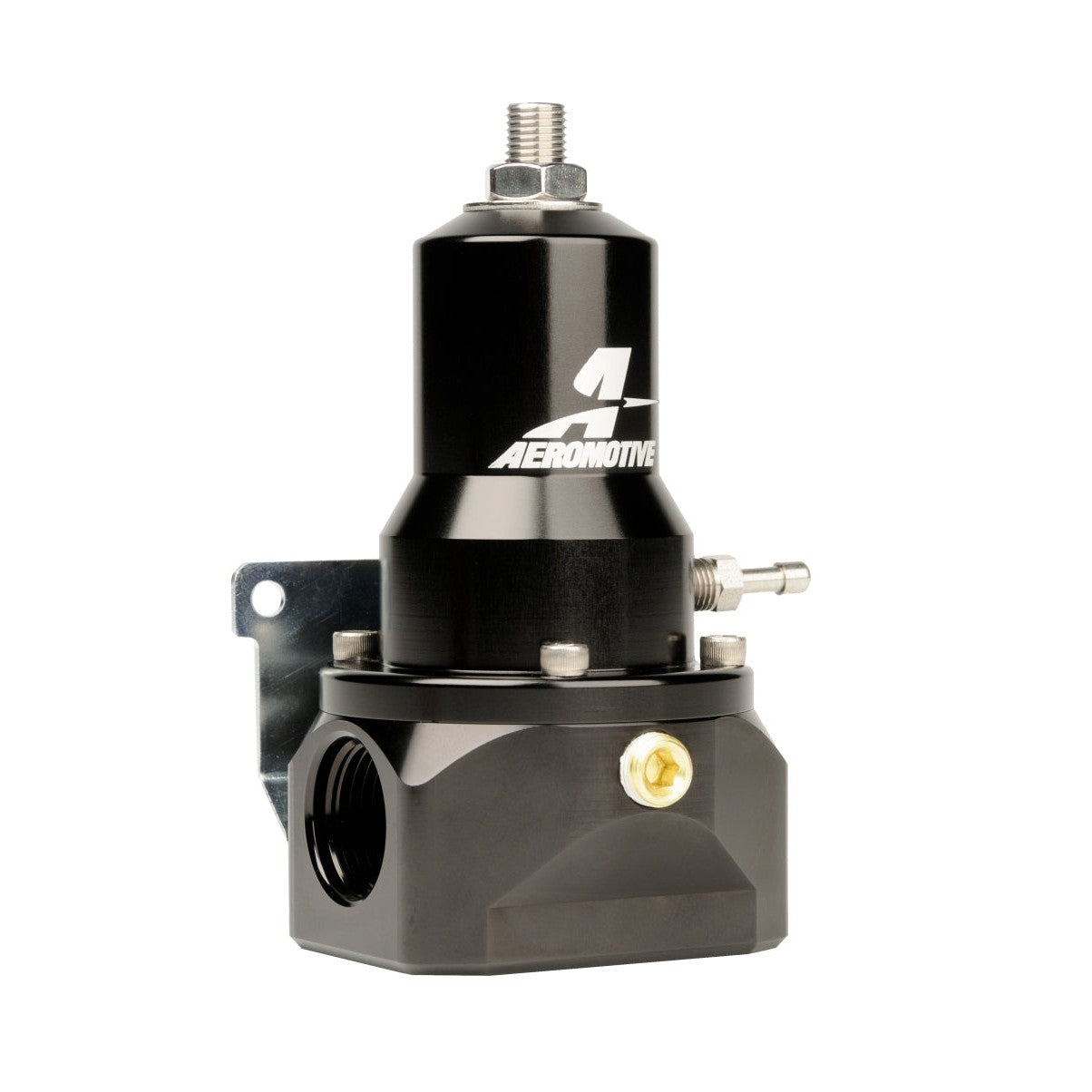

Aeromotive 13134 Extreme Flow EFI Regulator - 30-120 PSI - 0.313 Valve - Dual AN-10 Inlets

The Aeromotive 13134 Extreme Flow EFI Regulator is engineered to manage high-volume fuel delivery in high-performance EFI systems. This regulator is specifically optimized for use with Aeromotive Eliminator, Pro Pump, and Dual A1000 fuel systems. Featuring a massive 0.313-inch high-flow valve and seat assembly, it is capable of handling fuel pumps with outputs ranging from 3 to 9 GPM.

Built with a compact 2-port body, the 13134 includes dual AN-10 inlet/outlet ports and one AN-10 bypass (return) port. The regulator utilizes a dual-spring design to provide a wide operating pressure range without increasing the physical footprint or weight. It includes a standard spring for base pressures of 30-75 PSI and a high-pressure spring for 75-120 PSI. For forced induction applications, it provides a precise 1:1 vacuum/boost reference ratio.

• Manufacturer Part Number: 13134
• Inlet/Outlet Ports: Dual AN-10
• Return/Bypass Port: AN-10
• Valve/Seat Size: 0.313" High Flow
• Flow Capacity: Supports 3-9 GPM pumps
• Adjustable Pressure Range: 30-75 PSI (Standard) or 75-120 PSI (High Pressure)
• Reference: 1:1 Vacuum/Boost reference
