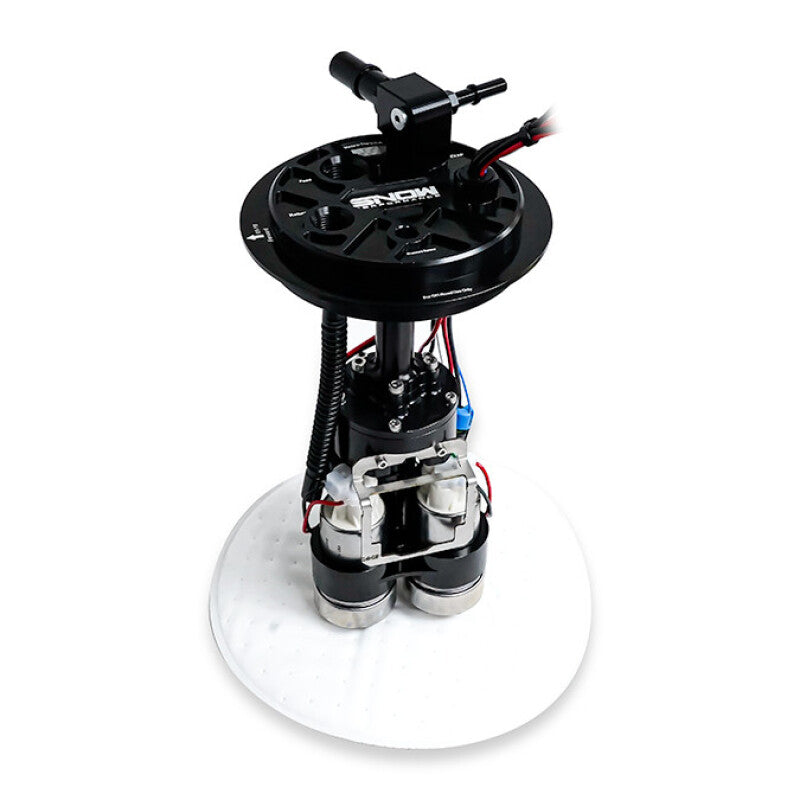

Snow Performance SNF-52710H Billet Multi-Pump Fuel Hat for 2019-2025 GMC Canyon/Sierra 1500 Denali

Fits 2019-2025 GMC Canyon Denali and Sierra 1500 Denali.

Upgrade your high-output fueling system with the Snow Performance SNF-52710H Multi-Pump Fuel Hat. Engineered and CNC-machined in the USA from 6061 billet aluminum, this assembly replaces the factory fuel hat and bucket to support high-horsepower demands without the need for unreliable T-fittings, rubber hoses, or hose clamps. The manifold design features precision-machined internal passages and chemical-resistant Viton O-rings for a leak-free seal and maximum fuel flow.

This billet hat is finished in black anodizing for superior corrosion resistance, making it fully compatible with gasoline, E85, and E98 ethanol blends. The SNF-52710H is designed to retain essential factory features, including the OE fuel level sending unit (not included), EVAP system, filler neck, and saddle-style tank transfer pump functionality. Note: This assembly is designed for return-style fuel systems only and must not be used in returnless applications.

• Manufacturer Part Number: SNF-52710H
• Material: 6061 Billet Aluminum with black anodized finish
• Ports: Female 10AN ORB feed and 8AN ORB return
• Pump Compatibility: Configurable for 2 or 3 genuine TI Automotive (Walbro) 450LPH or 470LPH pumps
• Hardware: Includes wiring harnesses for pumps and fuel level sending unit
• Requirement: Requires return-style fuel system; 90-degree swivel adapter fittings sold separately

Please note: This kit does not include the fuel level sending unit or AN fittings.
