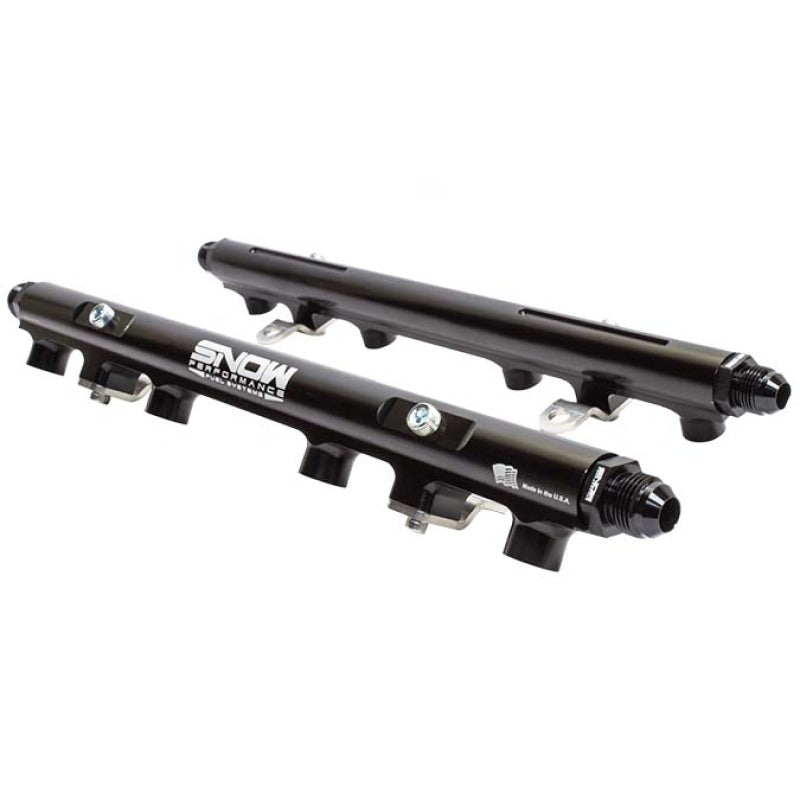

Snow Performance Billet Return Style Fuel Rail Kit (Pair) for 2011-2017 Ford F-150 & Mustang (Coyote) SNF-30012

Fits 2011-2017 Ford F-150 and Mustang models equipped with the 5.0L Coyote engine.

The Snow Performance Billet Return Style Fuel Rail Kit is engineered for high-demand fuel systems where reliability and flow are critical. Unlike universal rails with weak mounting hardware, these rails are CNC-machined for a precise fit and utilize high-strength stainless steel mounting brackets to prevent movement and leaks under high-pressure conditions. Each rail features a black anodized finish for superior corrosion resistance and a clean aesthetic.

The rails are designed with large internal bores to maximize flow and are equipped with 8AN ORB ports at the inlets and outlets. Additionally, each rail includes two 1/8-NPT ports, providing convenient connection points for fuel pressure gauges, sensors, or nitrous system feeds without the need for extra adapters. These rails are designed for factory-height 60mm injectors; shorter injectors may be used with the appropriate spacers (sold separately).

• CNC-machined billet aluminum construction with black anodized finish
• High-strength stainless steel mounting brackets
• 8AN ORB inlet/outlet ports for maximum flow and leak-free sealing
• Two 1/8-NPT ports per rail for auxiliary sensors or nitrous feeds
• Compatible with Boss 302, GT350, Cobra Jet, and 1st/2nd Gen GT intake manifolds
• Manufacturer Part Number: SNF-30012

Kit Includes: Two (2) billet fuel rails, four (4) 8AN inlet/outlet fittings, four (4) 1/8-NPT plugs, and all necessary mounting hardware for factory-height Coyote injectors.
