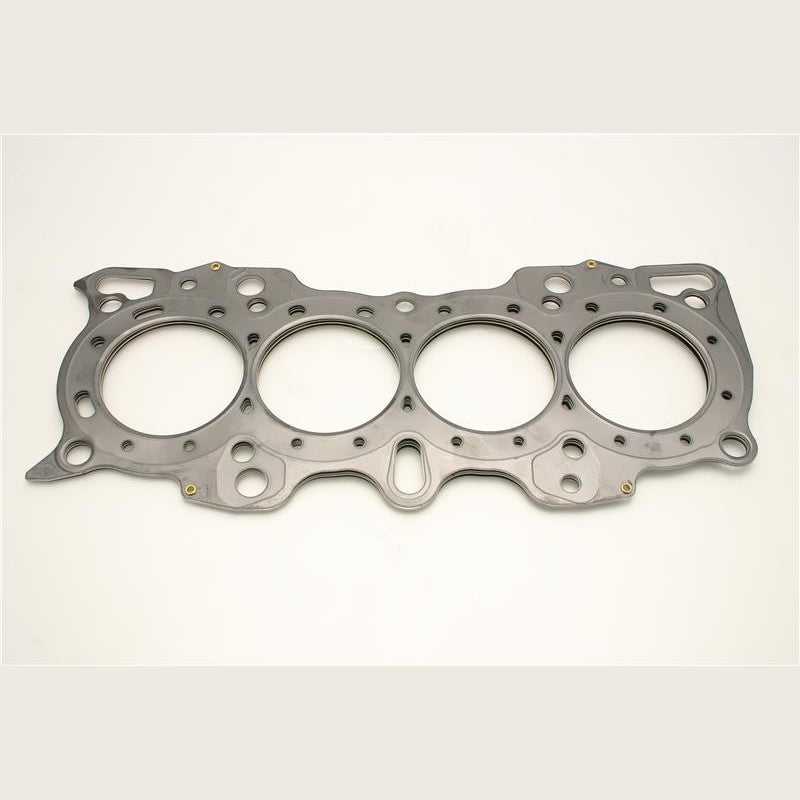

Cometic MLS 85mm .051" Head Gasket for Honda Hybrid LS/CRV-VTEC B18/B20 (Select Acura/Honda 1988-2001)

Fits select 1988-2001 Acura Integra, Honda CR-V, and Honda Prelude equipped with B18 or B20 non-VTEC blocks and VTEC cylinder heads.

This Cometic Multi-Layer Steel (MLS) head gasket is specifically engineered for high-output B-Series hybrid builds, commonly known as LS-VTEC or B20-VTEC conversions. Constructed from multiple layers of embossed stainless steel, this gasket provides superior sealing performance without the need for additional sealants. The stainless steel composition offers the rebound and corrosion resistance necessary to withstand the shearing forces between aluminum heads and cast iron or aluminum blocks.

The outer layers are coated on both sides with Viton, a fluoroelastomer rubber capable of resisting temperatures up to 250°C (482°F). This specialized coating ensures a reliable seal across various surface finishes and load conditions, while the uncoated stainless steel shim layer allows for precise thickness control. This design requires less clamp load, resulting in reduced bore distortion and more even distribution across the sealing surface.

• Manufacturer Part Number: C4194-051
• Bore Size: 85mm
• Compressed Thickness: .051 in
• Material: Multi-Layer Steel (MLS)
• Coating: Viton rubber-coated outer layers
• Application: Non-VTEC block to VTEC head conversion
