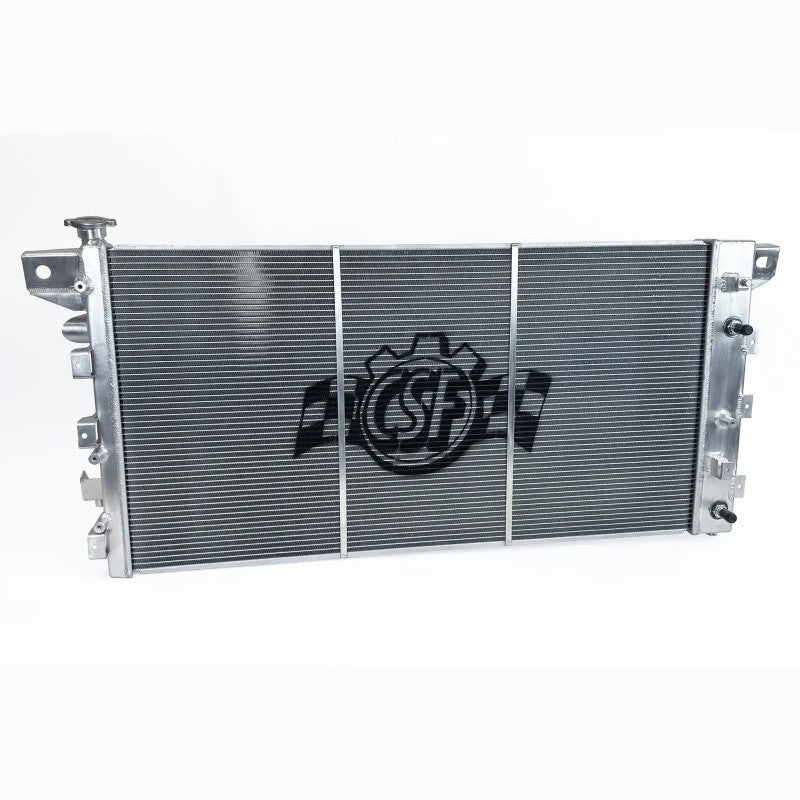

CSF High Performance 2-Row 42mm Aluminum Radiator for Select 2015-2025 Ford F-150, Raptor & Expedition

Fits select 2015-2025 Ford F-150, Raptor, Expedition, and 2018-2021 Lincoln Navigator models. This heavy-duty radiator is a direct replacement for the factory unit, addressing the common failure points and cooling limitations of the original plastic-and-aluminum assembly.

Designed for trucks used in demanding conditions—from high-boost builds and off-road racing to heavy towing—this CSF radiator features a massive 42mm 2-row core. This design provides 60% more core volume than the factory radiator. Unlike the OE unit with crimped plastic tanks that are prone to leaking under pressure, the CSF is 100% TIG-welded aluminum for maximum durability. It utilizes CSF’s exclusive B-Tube technology, which increases heat dissipation surface area by 15% compared to standard oval tubes.

Installation is a true plug-and-play process using CNC-machined mounting pins and brackets that bolt to factory locations with no modifications required. The kit includes two barb fittings to accommodate different coolant expansion tank configurations found across Ford and Lincoln platforms.

• 42mm Ultra-High-Performance 2-Row Core
• 100% All-Aluminum TIG-Welded Construction
• Exclusive B-Tube Technology for superior heat transfer
• 6.5mm Tall Ultra-Efficient Fins with Multi-Louvered Design
• Core straps added for increased rigidity and reliability in extreme conditions
• CNC Machined Mounting Pins and Brackets for OE-style fitment
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
