RockJock

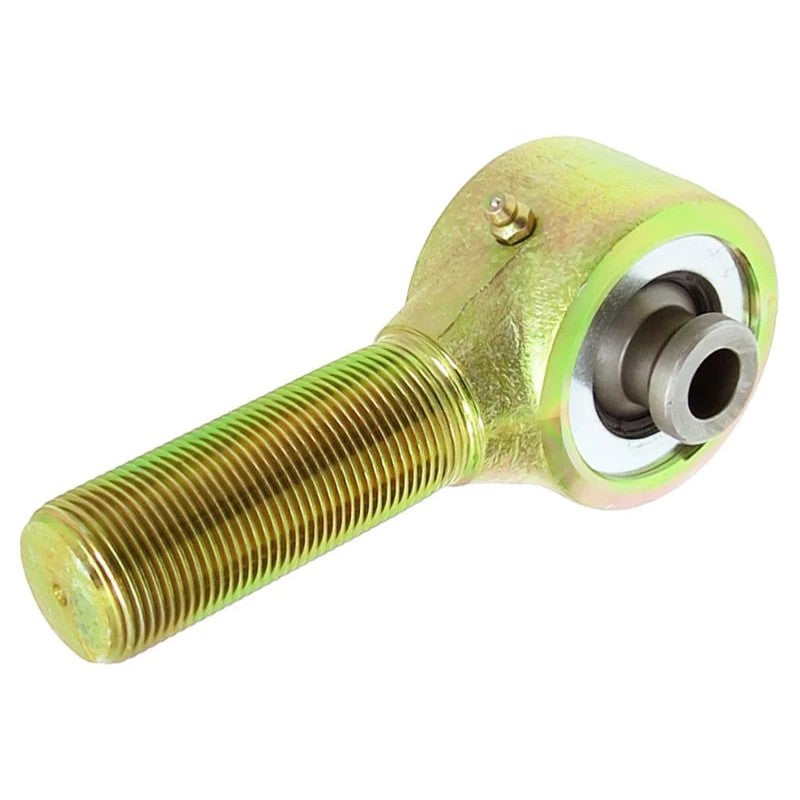

RockJock Johnny Joint 2.5" Narrow Forged Rod End, 2.625" x .640" Ball, 1-1/4"-12 LH Thread (CE-9114NL-28)
$72.00
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
RockJock Narrow Forged Johnny Joints are the premier choice for fabricators and suspension system builders, offering a massive 40 degrees of unrestricted movement—nearly double the 22 degrees provided by standard heim joints. Unlike traditional spherical bearings, the Johnny Joint utilizes a high-density urethane bushing to encase the inner ball, providing essential cushioning and vibration dampening for both on-road comfort and off-road durability.
This heavy-duty rod end is built to withstand extreme loads, featuring a heat-treated center ball and forged steel body. The internals are secured by two heat-treated side washers and a robust snap ring. For ease of maintenance, the center ball is cross-drilled for thru-bolt lubrication via an integrated zerk fitting, ensuring the joint remains quiet and articulate over its lifespan.
- Manufacturer Part Number: CE-9114NL-28
- Joint Diameter: 2-1/2 in. body
- Thread Pitch: 1-1/4 in.-12 Left Hand (LH) threads
- Shank Length: 2-1/4 in. of usable thread
- Mounting Specs: 2.625 in. wide offset ball with a .625 in. (5/8 in.) thru-bolt hole
- Articulation: 40 degrees of total movement
- Finish: Corrosion-resistant Gold Zinc plating
