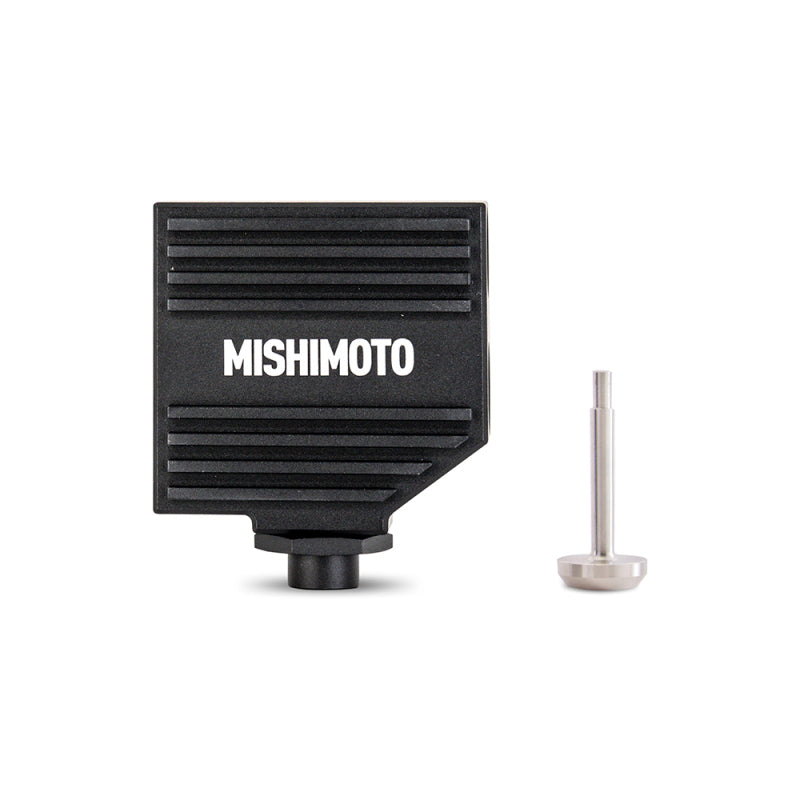

Mishimoto Thermal Bypass Valve Kit for Select Chrysler, Dodge, and Ram 2012-2024 (MMTC-GMP-TBV)

Fits select 2012-2024 Chrysler 300, Dodge Challenger, Dodge Charger, and Ram 1500 (V6 / V8 / 6.2L SC).

The factory transmission thermal bypass valve on many 2012+ Mopar vehicles is a known failure point. Designed to act as a thermostat that restricts fluid flow to the external cooler until reaching operating temperature, these stock units frequently stick in the closed position, leading to transmission overheating and potential internal damage. The Mishimoto Thermal Bypass Valve Kit (MMTC-GMP-TBV) provides a rugged, reliable solution to safeguard your drivetrain.

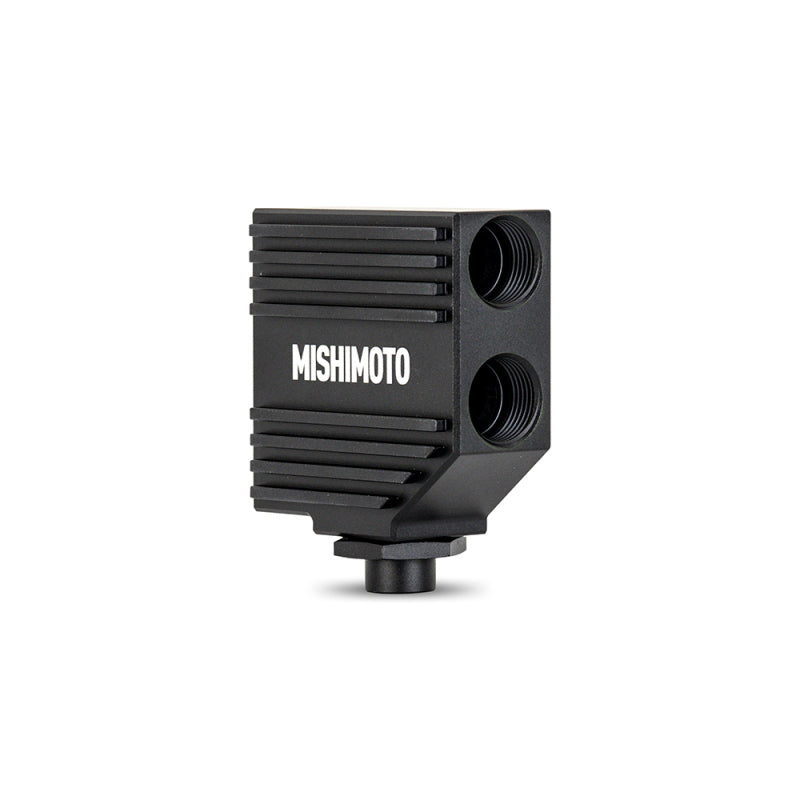

CNC-machined from 6061 billet aluminum, this housing features an integrated heat sink design for superior thermal dissipation and a durable black anodized finish. This kit is uniquely versatile, including both a serviceable 160°F (71°C) thermostat for cold-climate warm-up and a full-flow bypass plug for maximum cooling in extreme driving conditions or hot climates. Installation is straightforward, utilizing factory cooler piping and mounting points for a direct-fit upgrade.

• Replaces failure-prone factory bypass valve to prevent overheating
• Precision CNC-machined billet aluminum construction with black anodized finish
• Includes 160°F (71°C) thermostat and full-flow bypass plug
• Features cooling fins for improved heat dissipation
• Serviceable design allows for easy maintenance or thermostat swapping
• Installs in approximately one hour using factory connections
• Manufacturer Part Number: MMTC-GMP-TBV
• Mishimoto Lifetime Warranty
