ICON Vehicle Dynamics Stage 1 2-3" Suspension System with Tubular UCAs for 2019-2023 Ram 1500 (K213111T)

Fits select 2019-2023 Ram 1500 models, including Big Horn, HFE, Laramie, Limited, Longhorn, Rebel, and Tradesman.

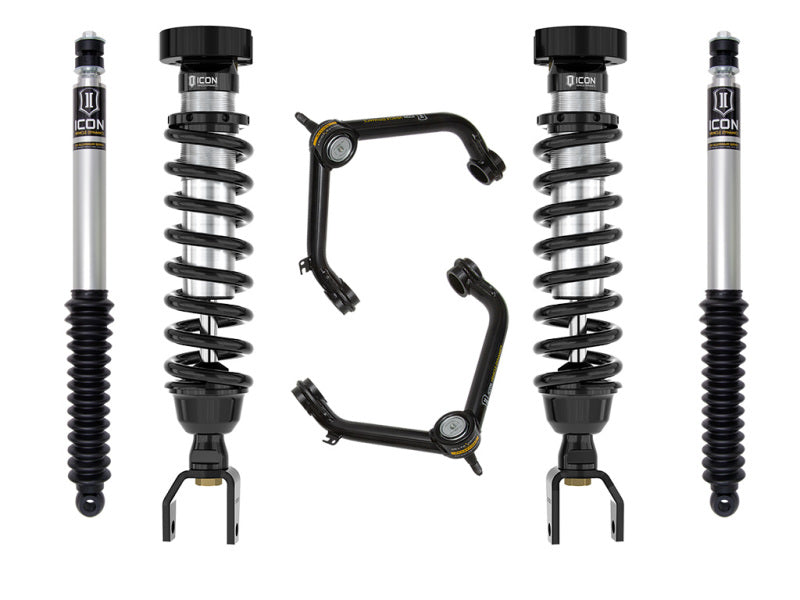

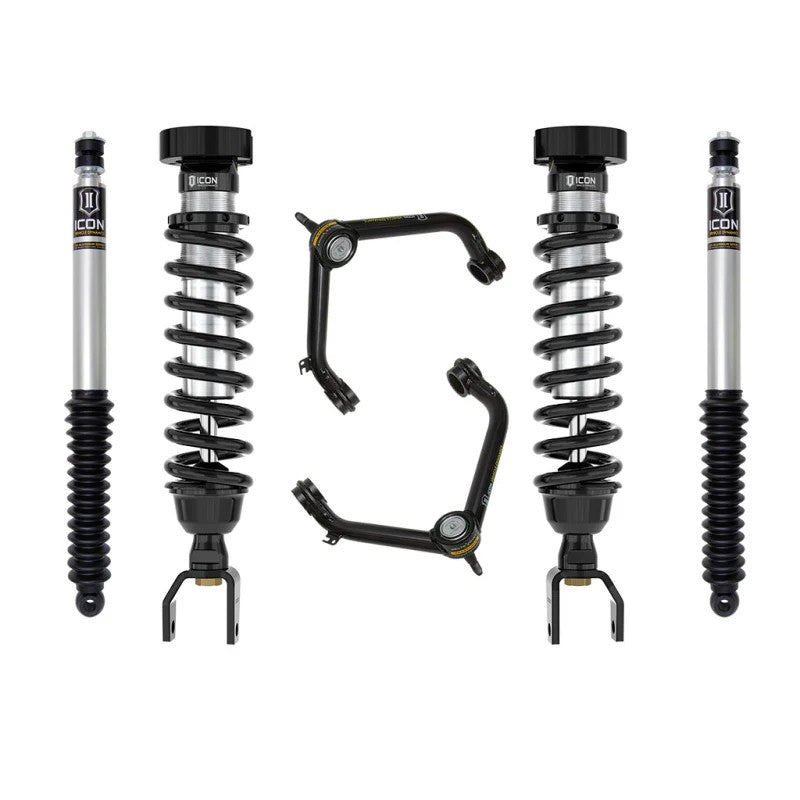

The ICON Vehicle Dynamics Stage 1 suspension system (K213111T) is engineered to significantly improve the ride quality and off-road capability of the 2019-2023 Ram 1500. This system features vehicle-specific tuned 2.5-inch coilover shocks that provide 2-3 inches of front lift height, allowing for larger wheel and tire combinations. The included tubular upper control arms are equipped with ICON’s patented Delta Joint, which provides the durability of a uni-ball with the weather-sealed longevity of a ball joint, while correcting alignment geometry for the increased lift height.

To balance the vehicle's performance, the kit includes 2.0 Aluminum Series internal reservoir rear shocks. These shocks utilize vehicle-specific valving to ensure consistent damping across various terrains without compromising factory towing capacity. The entire system is a 100% bolt-on solution, requiring no cutting or welding for installation.

• Adjustable front coilovers yield 2-3" of lift height over stock
• Tubular Upper Control Arms with Delta Joint ball joints for increased strength and alignment range
• Corrosion-resistant 2.5" diameter CAD plated coilover bodies with 7/8" shafts
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on installation — no drilling, cutting, or welding required
• Manufacturer Part Number: K213111T
