ICON Vehicle Dynamics Stage 2 Suspension System 2-3" Lift for 2019-2023 Ram 1500 with Billet UCAs

Fits 2019-2023 Ram 1500 (Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Rebel, Special Service, and Tradesman).

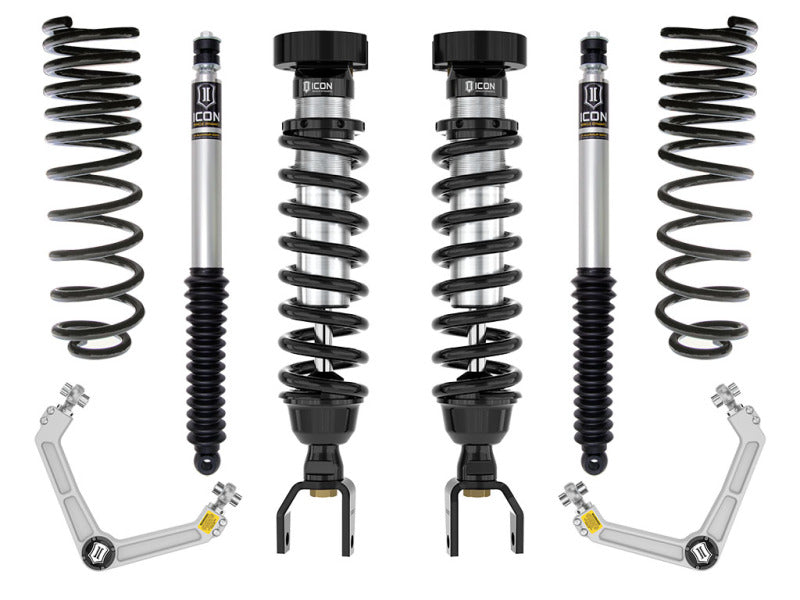

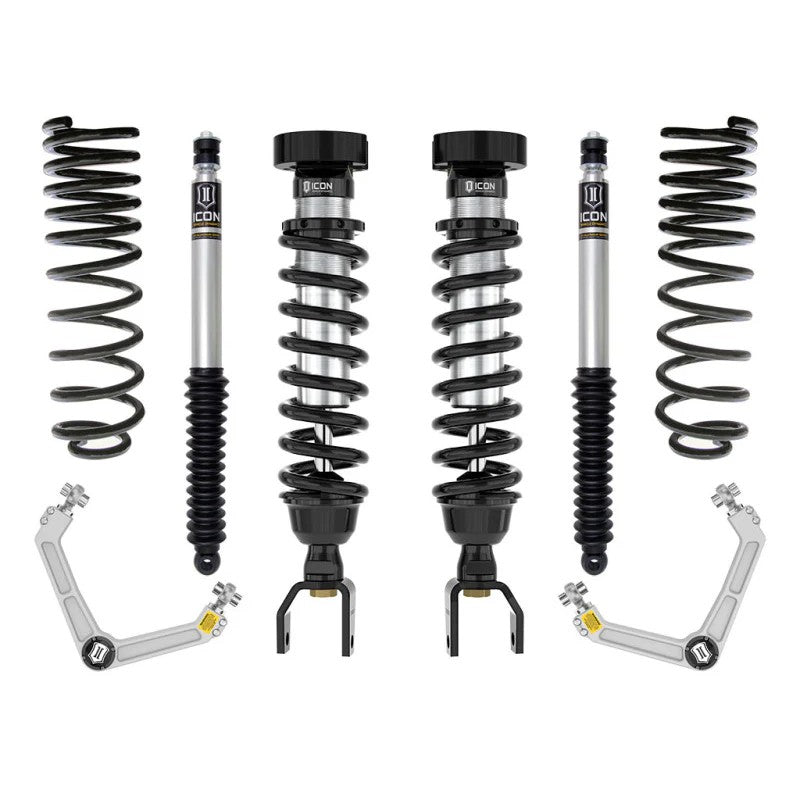

The ICON Vehicle Dynamics Stage 2 suspension system is engineered to provide increased wheel travel and superior damping for the 2019-2023 Ram 1500. This system features vehicle-specific tuned 2.5-inch diameter coilover shocks with internal reservoirs and ICON-engineered coil springs. These coilovers are height-adjustable from 2-3 inches of front lift, allowing for larger wheel and tire combinations while improving front wheel travel. The included billet 6061 aluminum upper control arms (UCAs) feature ICON’s Delta Joint, providing the strength of a uniball with the durability of a sealed ball joint, while allowing for on-vehicle caster and camber adjustment to maintain proper alignment.

In the rear, dual-rate coil springs provide 1.5 inches of lift, delivering a level stance and a compliant ride without sacrificing bottoming resistance. The system is completed by ICON 2.0 Aluminum Series internal reservoir rear shocks, which balance the truck’s performance from front to rear. This 100% bolt-on kit requires no drilling, cutting, or welding for a straightforward installation.

• Adjustable 2.5” CAD-plated front coilovers with 7/8” shafts
• Billet 6061 aircraft-grade aluminum UCAs with Delta Joint ball joints
• 2.0 Aluminum Series rear shocks with 5/8” polished shafts
• Dual-rate rear coil springs for 1.5” of lift and improved ride quality
• FK rod end bearings for extended longevity and minimal deflection
• Provides 2-3” of front lift and 1.5” of rear lift
• Complete bolt-on system with no permanent vehicle modifications required
• Manufacturer Part Number: K213112
