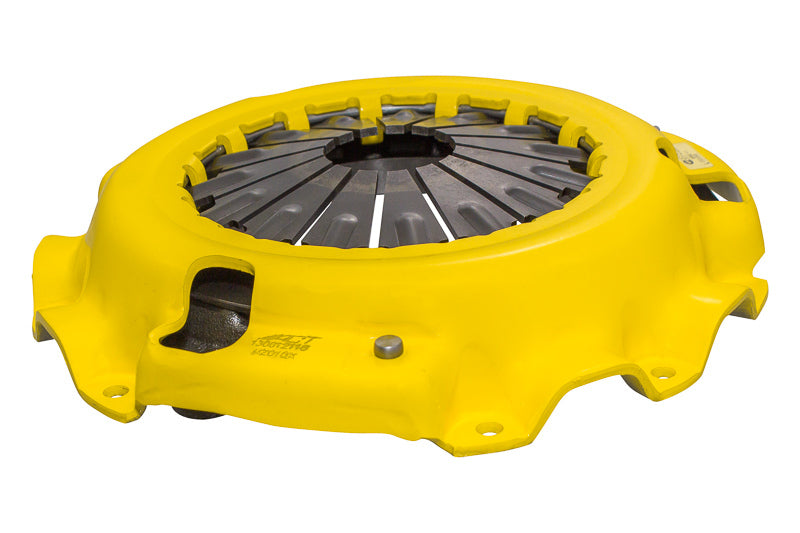

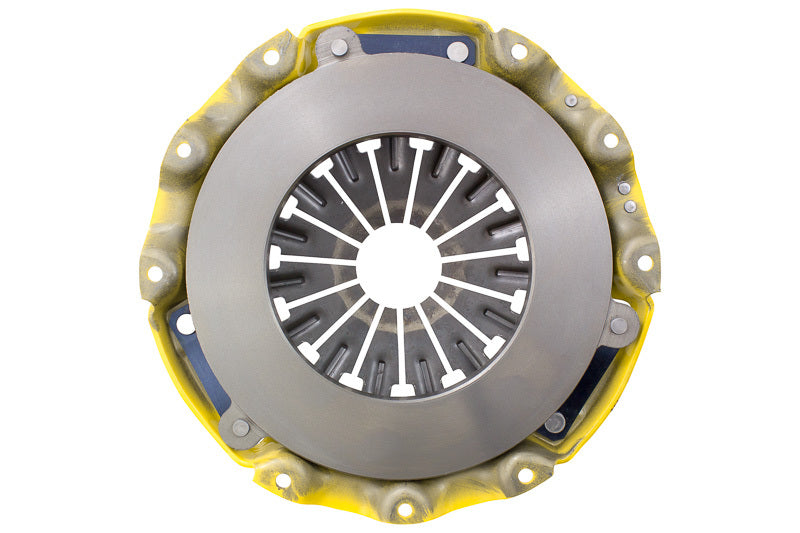

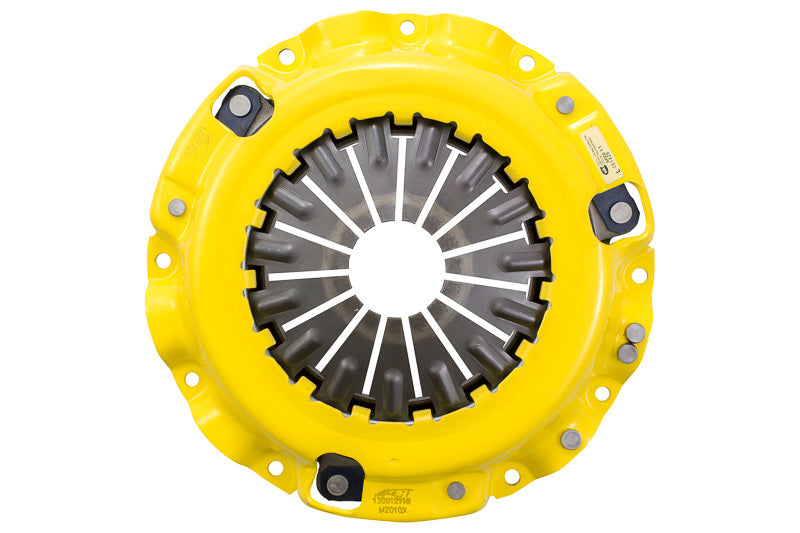

ACT MaXX Xtreme Clutch Pressure Plate (MZ010XX) for Select 1986-1992 Chrysler, Ford, Mazda, Mitsubishi

Fits select 1986-1992 Chrysler Conquest, Ford Probe, Mazda 626, 929, MX-6, RX-7, and Mitsubishi Starion.

The ACT MZ010XX MaXX Xtreme pressure plate is engineered for high-performance and racing applications where maximum clamping force is required. This pressure plate utilizes an exclusive diaphragm design that increases clamp load by 70 to 150 percent compared to the original equipment, significantly reducing deflection and maximizing clutch life. Due to the high clamp load, ACT recommends pairing MaXX Xtreme pressure plates with a race disc.

Every ACT pressure plate is built for consistency and durability, featuring precision cover stampings for superior rigidity. To ensure long-term performance under high-heat conditions, the diaphragms undergo a proprietary four-stage heat-treating process. This makes the MZ010XX an essential upgrade for forced induction or high-torque builds that have outpaced the capacity of a standard clutch system.

• Manufacturer Part Number: MZ010XX
• Series: MaXX Xtreme
• Clamp Load Increase: 70% to 150%
• Construction: Precision stamped cover
• Diaphragm: 4-stage heat-treated steel
• Warranty: Manufacturer one-year warranty
