Aeromotive Stealth A1000 Fuel System for 1986-1995 Ford Mustang (5.0L) - 17130

Fits 1986-1995 Ford Mustang Base, GT, GTS, LX, SVO, and SVT Cobra (5.0L).

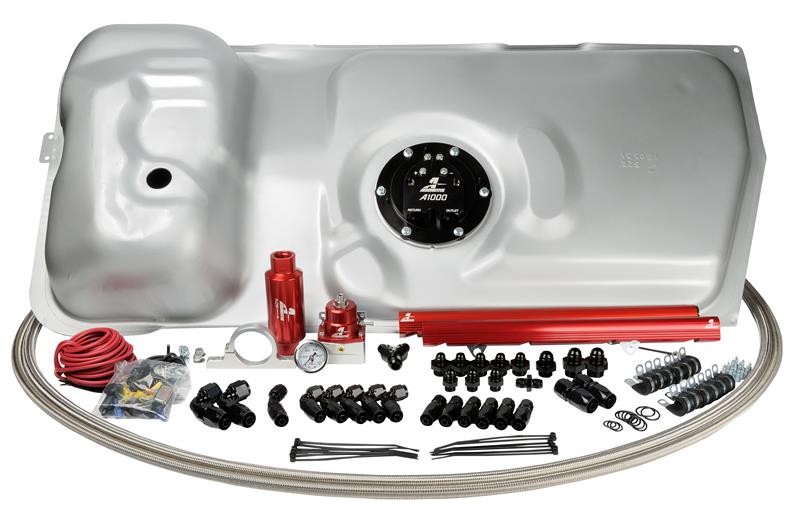

The Aeromotive Stealth A1000 Fuel System (P/N 17130) provides a complete, bolt-in solution for Fox Body and early SN95 Mustang owners. This system centers around a reproduction fuel tank modeled after the 2003-2004 Cobra, featuring a highly effective internal baffling system to prevent fuel starvation during hard cornering or acceleration. Aeromotive has adapted this specialized tooling to fit the factory mounting locations of 1986-1995 Mustangs using OE tank straps.

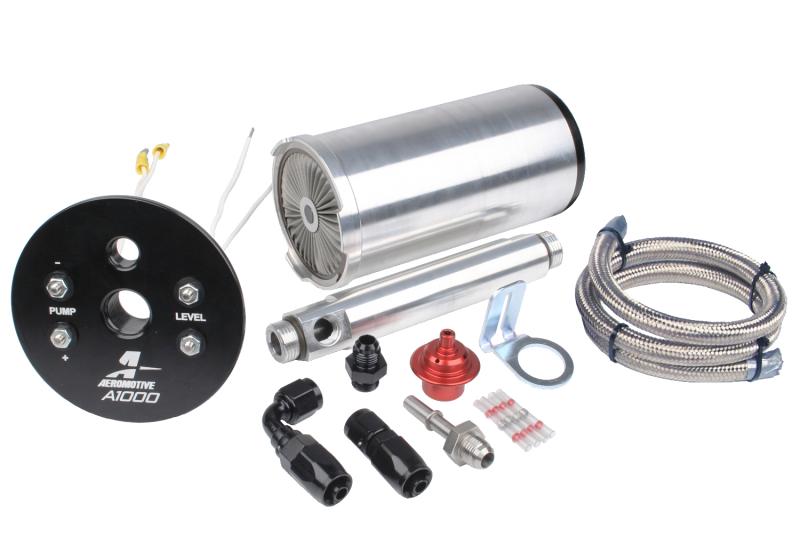

This all-in-one kit includes a built-in A1000 fuel pump capable of supporting high horsepower demands, paired with an integrated 100-micron stainless steel pre-filter. The system comes complete with everything required for a professional installation, including an EFI bypass regulator, post-pump filtration, and 5.0L-specific fuel rails.

• Manufacturer Part Number: 17130
• Fuel Pump: Integrated A1000 Stealth Pump
• Tank Design: 03-04 Cobra-style internal baffling
• Inlet/Outlet: (1) ORB-08 Outlet and (1) ORB-08 Return Port
• Filtration: 100-micron internal pre-filter and P/N 12301 10-micron post-pump filter
• Regulator: P/N 13109 EFI Bypass Regulator
• Fuel Rails: P/N 14101 5.0L GT & Cobra Fuel Rail Kit
• Hardware: Billet filter bracket, wiring kit, and all necessary port fittings included
