BMR Tubular K-Member w/ 1/2in Lowered Mounts for 2005-2014 Ford Mustang - Red (KM020R)

Fits 2005-2014 Ford Mustang (Base, Boss 302, Bullitt, GT, and Shelby GT/GT500/GT500KR).

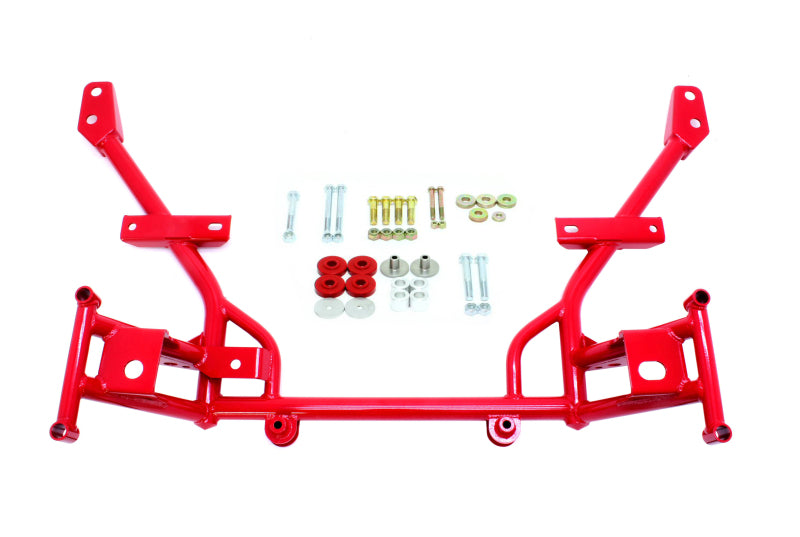

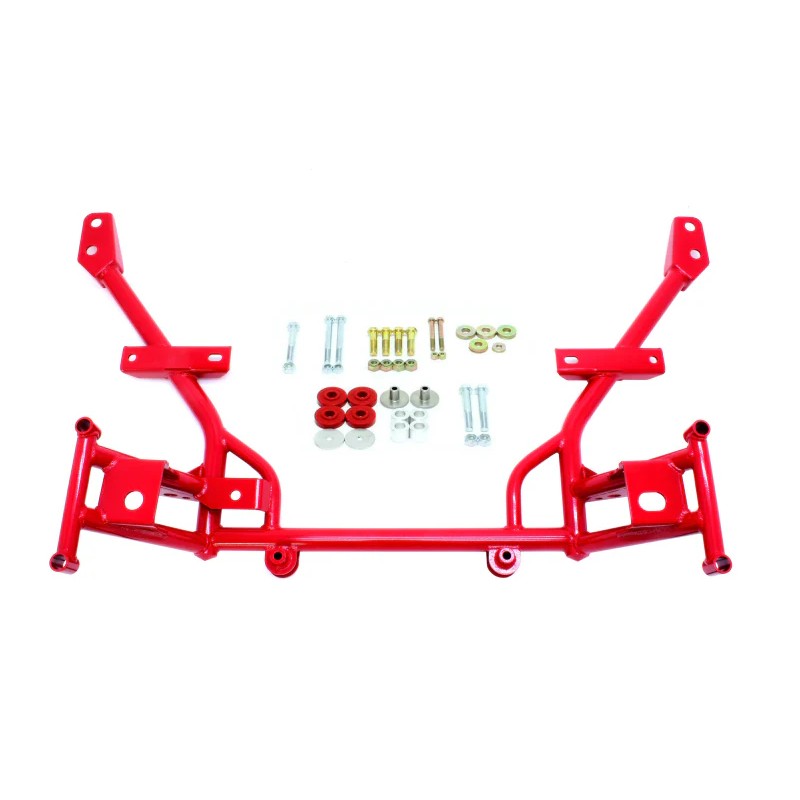

The BMR Tubular K-Member (KM020R) is a high-performance replacement for the bulky factory front subframe, engineered to reduce frontend weight while increasing structural rigidity. Built for street, drag, and handling applications, this K-member replaces the 46-lb factory unit and mounts with a lightweight 26-lb tubular assembly. The 20-lb weight reduction improves weight distribution and front-end response, while the slim-profile design creates significant clearance for large-tube headers and custom turbo kits.

This version features integrated engine mounts that lower the motor by 1/2-inch to provide additional underhood clearance for superchargers or intake manifolds. Every KM020R is a 100% bolt-in component, manufactured from heavy-duty DOM tubing and finished in a durable red powdercoat for long-term corrosion resistance.

• Replaces factory K-member and motor mounts (KM020R)
• 20-lb weight reduction compared to OE components
• Integrated 1/2-inch lowered motor mounts for extra hood clearance
• Constructed from 1-inch, 1-1/4-inch, and 1-inch DOM tubing
• Provides increased clearance for exhaust headers and turbo plumbing
• Standard rack mounts for factory steering racks
• 100% bolt-in installation with no modifications required
• Proudly made in the U.S.A.

Note: 2011-2014 Mustangs require modification to the factory aero pan for fitment. BMR highly recommends using the A-Arm Support Brace (AAS001) for street and handling use. For applications producing over 700 lb-ft of torque, the BMR billet aluminum Motor Mount Upgrade (MM006) is recommended.
