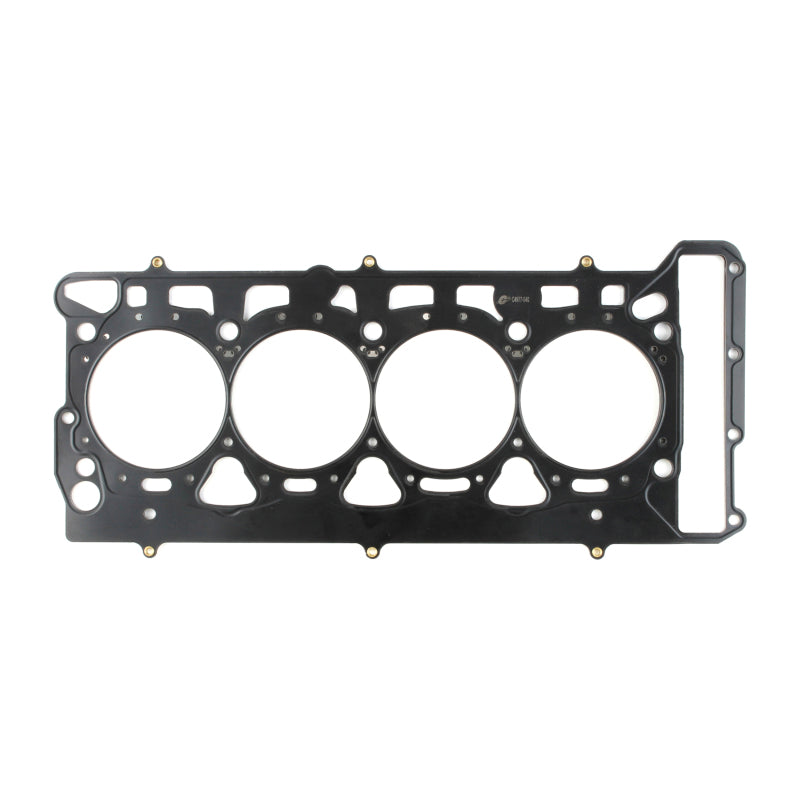

Cometic MLS Head Gasket .051in Thick 84mm Bore for Select 2006-2011 Audi/VW (2.0L) - C4977-051

Fits select 2006-2011 Audi A3, A4, A5, Q5, TT, and Volkswagen CC, Eos, GTI, Jetta, Passat, Tiguan (2.0L).

The Cometic Multi-Layer Steel (MLS) head gasket provides superior sealing performance for high-output Volkswagen EA888 2.0L 16V TSI/TFSI engines. Engineered to handle the extreme cylinder pressures of modern performance builds, these gaskets are comprised of multiple layers of embossed stainless steel to provide maximum rebound and corrosion resistance. The outer layers are coated with Viton, a fluoroelastomer rubber based material heat-resistant to 250°C (482°F), ensuring a reliable seal across various surface finishes and load conditions.

This MLS design is specifically effective for sealing aluminum heads to either aluminum or cast iron blocks, as it withstands the shearing forces created by different thermal expansion rates. The Cometic C4977-051 requires no additional sealants and utilizes a reduced clamp load requirement to minimize bore distortion and ensure even load distribution across the sealing surface.

• Manufacturer Part Number: C4977-051
• Bore Size: 84mm
• Thickness: .051in
• Compressed Operating Thickness: 0.036in
• Material: Multi-Layer Stainless Steel (MLS)
• Coating: Embossed outer layers with Viton coating
• Compatibility: Compatible with World Products Man-o-War Blocks
