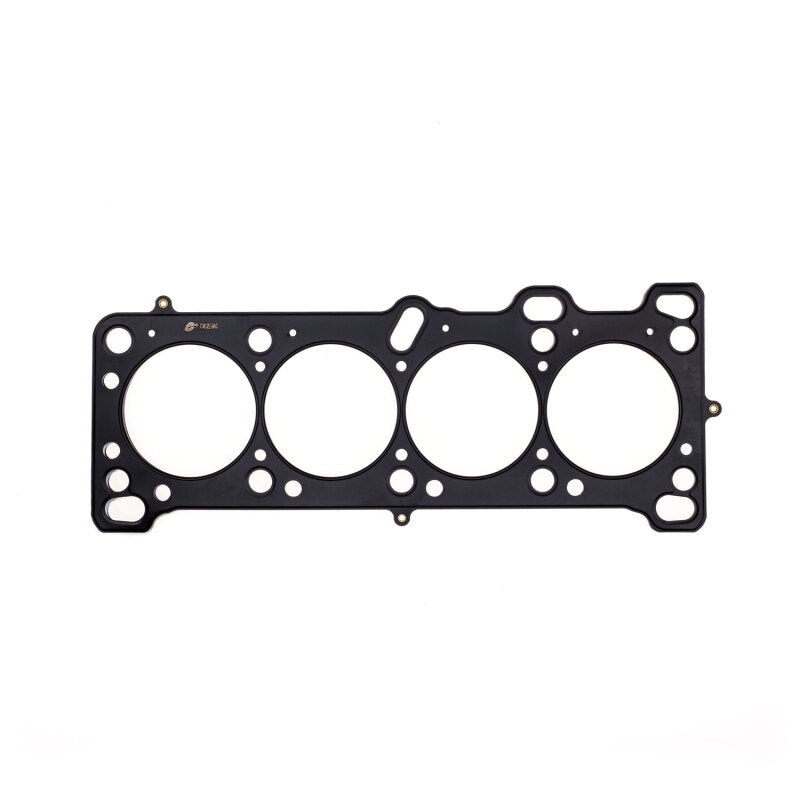

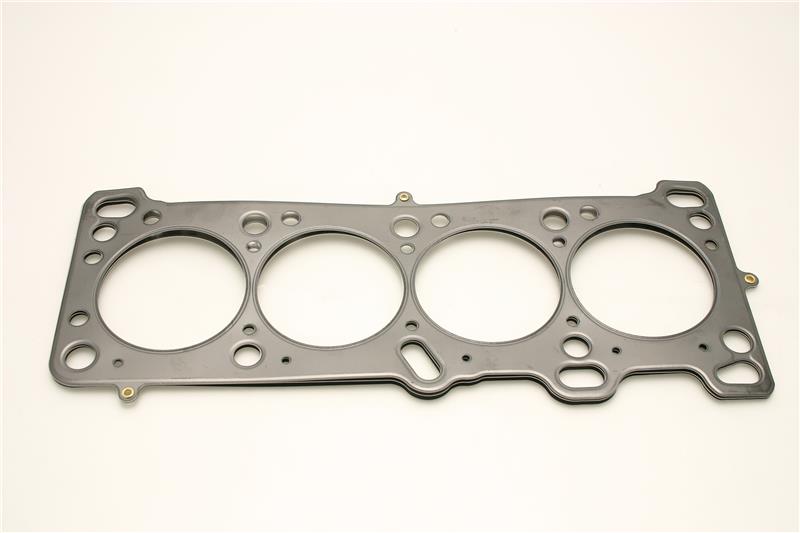

Cometic MLS Head Gasket - 80mm Bore / 0.051in Thickness - 1988-1994 Mazda & Mercury (1.6L) C4122-051

Fits 1988-1994 Mazda 323, Miata, MX-3, and Mercury Capri models equipped with the 1.6L (B6) engine.

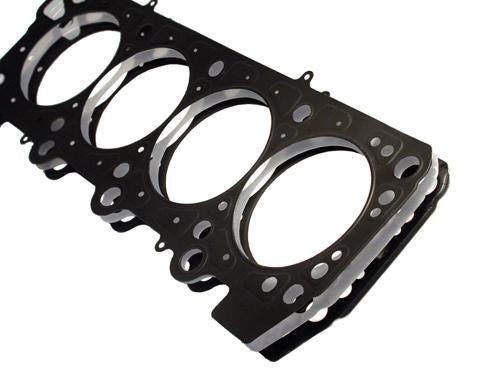

The Cometic Multi-Layer Steel (MLS) head gasket is engineered to provide the superior sealing required for modern high-output engines. Constructed from multiple layers of embossed stainless steel, this gasket features outer layers coated with a 0.25-micron thick layer of Viton rubber. This fluoroelastomer coating is heat-resistant up to 250°C (482°F), allowing it to maintain a reliable seal across various load conditions and surface finishes without the need for additional sealants.

By design, the MLS construction is ideal for both aluminum-to-aluminum and aluminum-to-cast iron engine configurations. It effectively resists the shearing forces created by different thermal expansion rates between the cylinder head and engine block. The uncoated stainless steel center shim layer provides structural integrity and allows for precise thickness specifications to meet your build requirements.

• Bore Size: 80mm
• Compressed Thickness: 0.051 inch
• Construction: Multi-Layer Steel (MLS)
• Outer Material: Viton-coated embossed stainless steel
• Shim Material: Uncoated stainless steel center layer
• Temperature Resistance: Up to 250°C / 482°F
• Manufacturer Part Number: C4122-051

Vehicle Fitment:

• 1988-1993 Mazda 323 (Base, DX, GT, GTX, LX, SE)
• 1990-1993 Mazda Miata (Base, LE, SE)
• 1992-1993 Mazda MX-3 (Base)
• 1991-1994 Mercury Capri (Base)
