Cometic Gasket

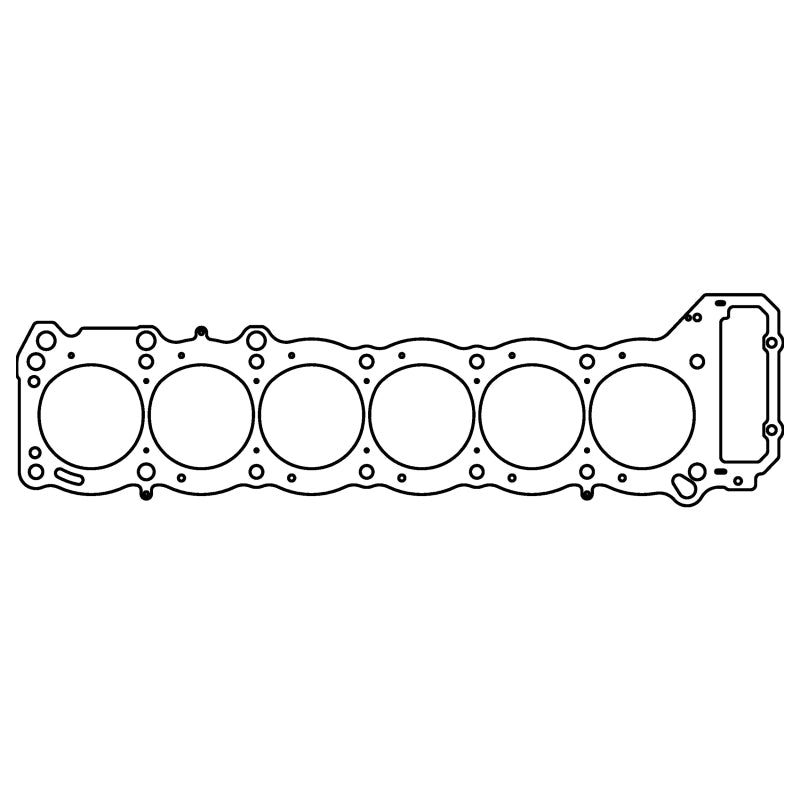

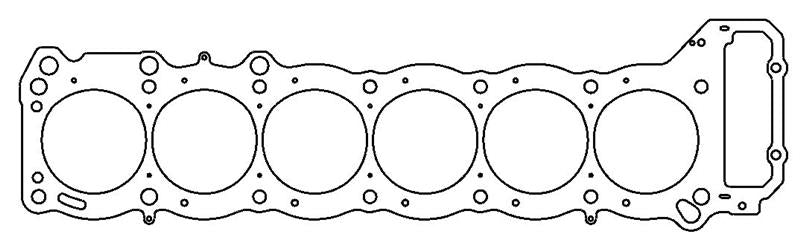

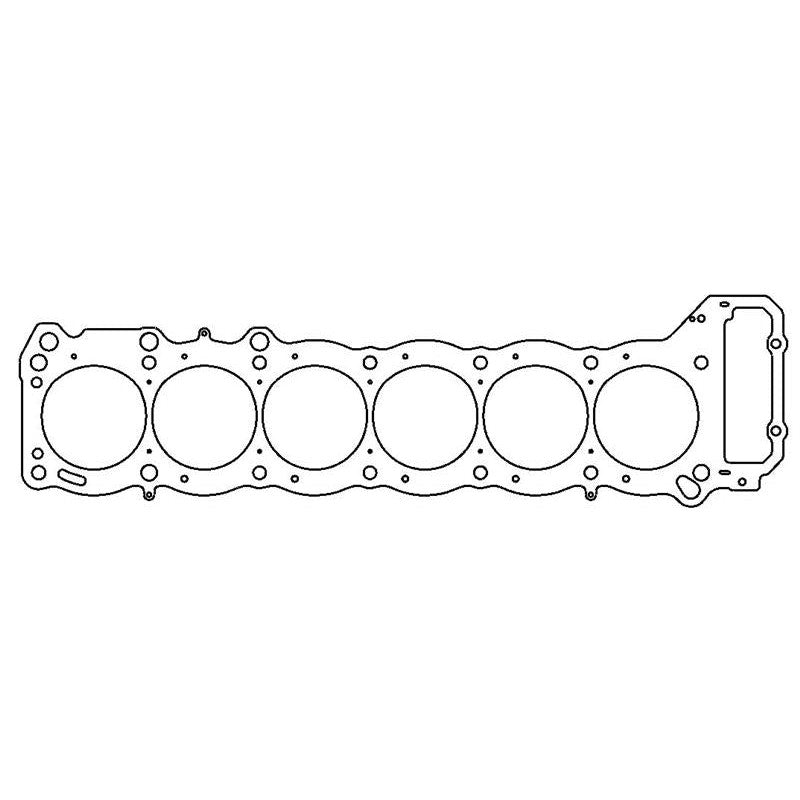

Cometic C4530-066 MLS 5-Layer Head Gasket (101.5mm Bore / .066" Thickness) for 1993-1997 Toyota Land Cruiser & Lexus LX450
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Fits 1993-1997 Toyota Land Cruiser and Lexus LX450 (1FZ-FE Inline-6).

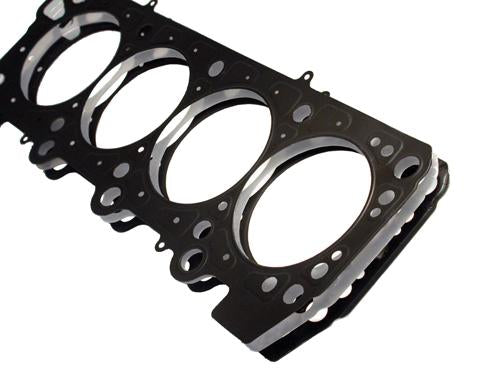

Cometic Multi-Layer Steel (MLS) head gaskets provide superior sealing performance for high-output 1FZ-FE engines without the need for additional sealants. This 5-layer gasket is constructed from high-grade stainless steel layers, providing the necessary rebound and corrosion resistance to maintain a reliable seal under harsh conditions. The design is specifically engineered to handle the shearing forces found in both aluminum-to-iron and aluminum-to-aluminum head-and-block configurations.
The outer layers are embossed and coated on both sides with Viton, a fluoroelastomer rubber material that is heat resistant to 250°C (482°F). This specialized coating ensures the gasket conforms to surface finishes and maintains a tight seal across varying load conditions. By distributing the clamp load evenly across the sealing area, this gasket helps reduce bore distortion compared to standard gaskets.
- Manufacturer Part Number: C4530-066
- Bore Size: 101.5mm
- Compressed Thickness: 0.066 inch
- Construction: 5-Layer Multi-Layer Steel (MLS)
- Material: Stainless steel with Viton-coated outer layers
- Application: Toyota 1FZ-FE engines
- Temperature Resistance: Up to 250°C / 482°F
🔧 Fitment & Compatibility
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996-1997 | Lexus | LX450 | Base |
| 1993-1997 | Toyota | Land Cruiser | Base |
