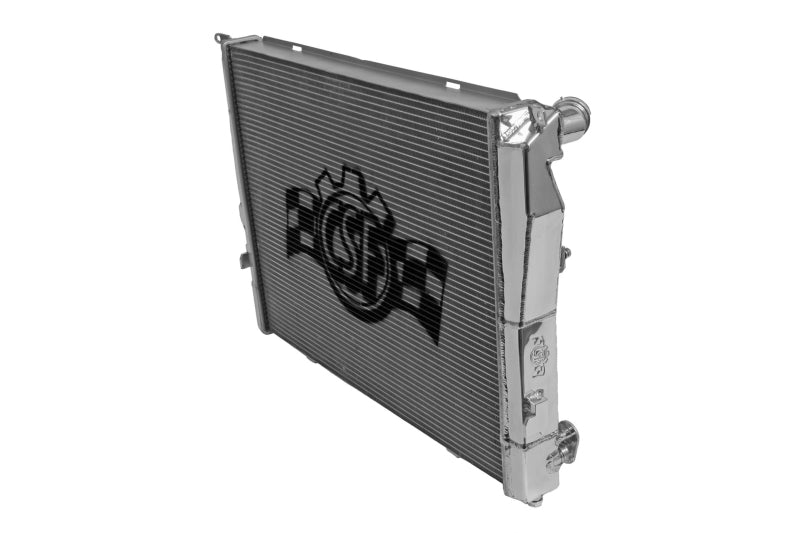

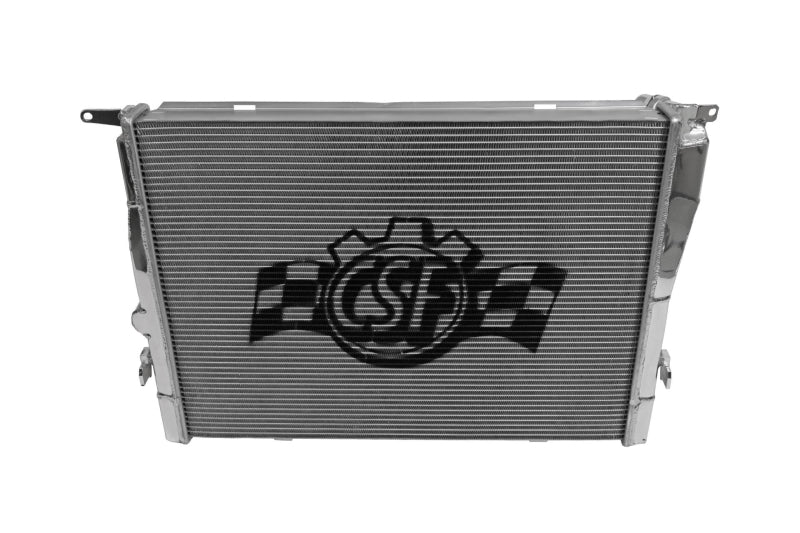

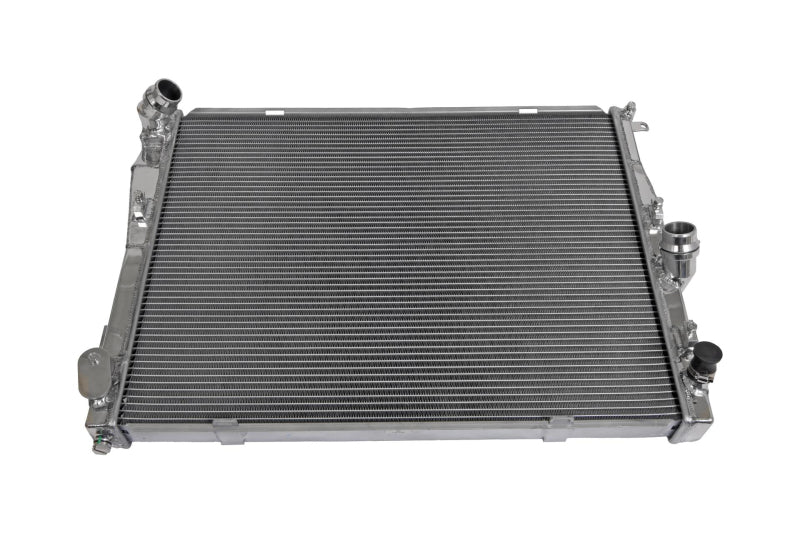

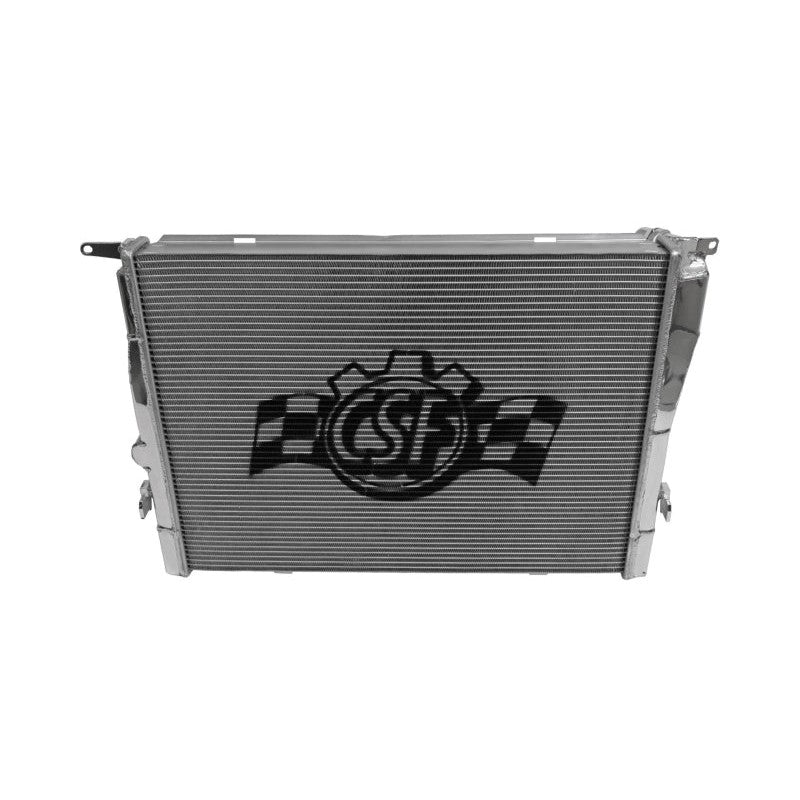

CSF 7001 High-Performance All-Aluminum Radiator for Select 2006-2013 BMW 128i, 325i, 328i, 330i, and Z4

Fits select 2006-2013 BMW 128i, 325i/xi, 328i/xi/xDrive, 330i/xi, and Z4 sDrive30i models. This CSF High-Performance All-Aluminum Radiator is engineered for high-horsepower builds and track-driven vehicles that demand superior thermal management over the factory unit.

This radiator utilizes CSF’s exclusive B-Tube Technology, featuring a 2-row 42mm core. Unlike traditional "O" shaped tubes, B-tubes are formed and seam-brazed into a "B" shape, increasing the heat transfer surface area by approximately 15%. This design allows for thinner, lighter aluminum without sacrificing structural integrity, providing the cooling efficiency of two smaller tubes within a single-core footprint. High-efficiency 6.5mm multi-louvered fins maximize airflow and heat rejection, tested in wind-tunnel environments for verified performance.

Designed as a true "drop-in" upgrade, the CSF 7001 requires no modifications for installation. It features CNC-machined "Quick-Connect" inlet and outlet connections, factory-style mounting brackets, and accepts all OEM components including the fan shroud, AC condenser, and hoses.

• Manufacturer Part Number: 7001
• Core Construction: 2-Row 42mm All-Aluminum Core
• Technology: Exclusive B-Tube design for 15% better heat transfer
• Fins: Ultra-efficient 6.5mm multi-louvered design

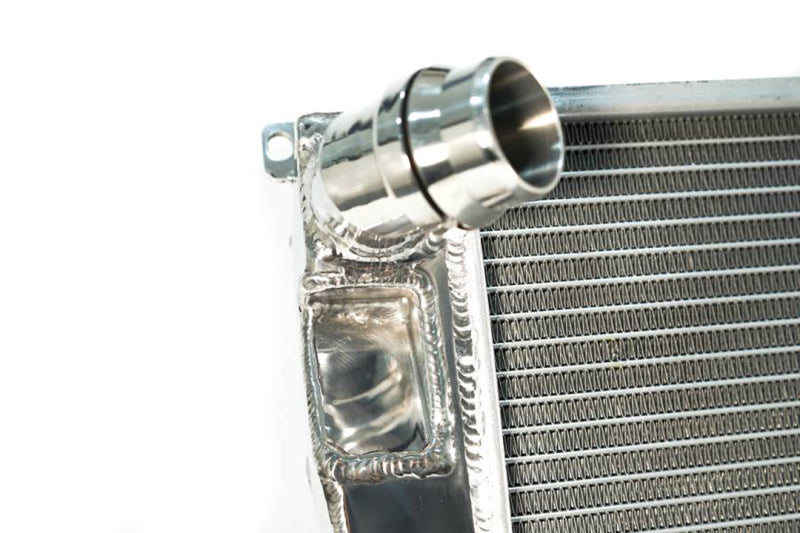

• Fittings: CNC-machined quick-connect inlet/outlets and brackets
• Finish: Smooth Satin Aluminum
• Drain Plug: All-aluminum race-style
