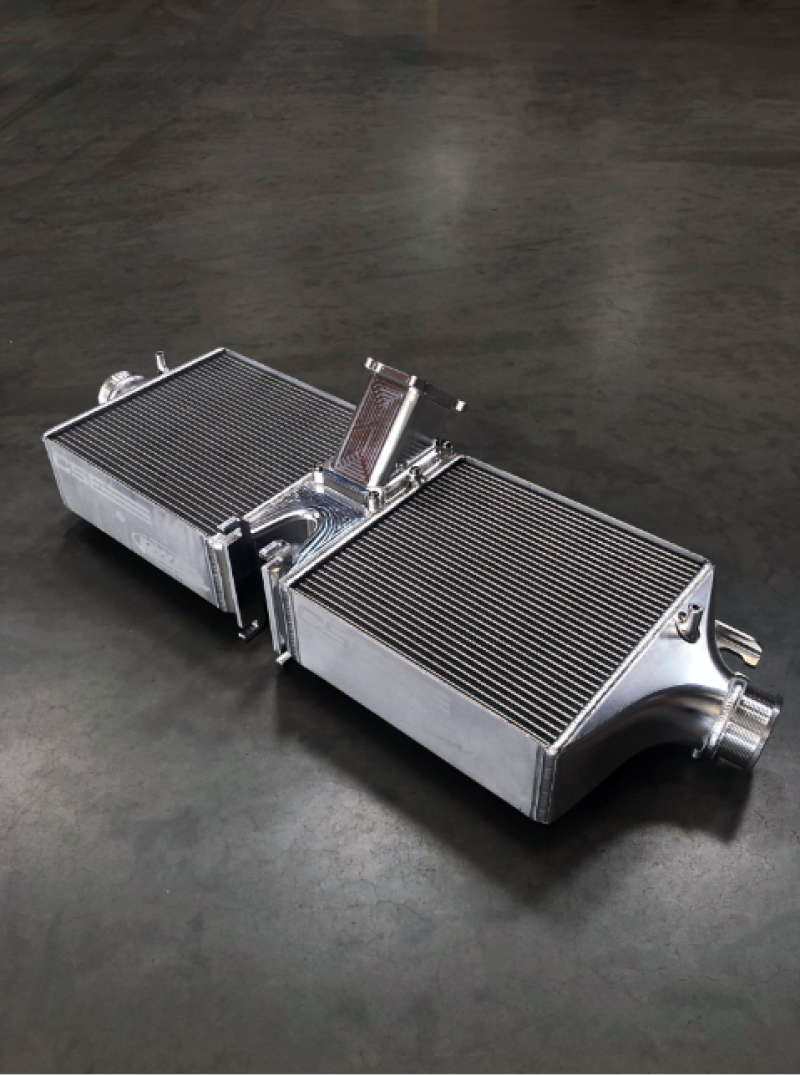

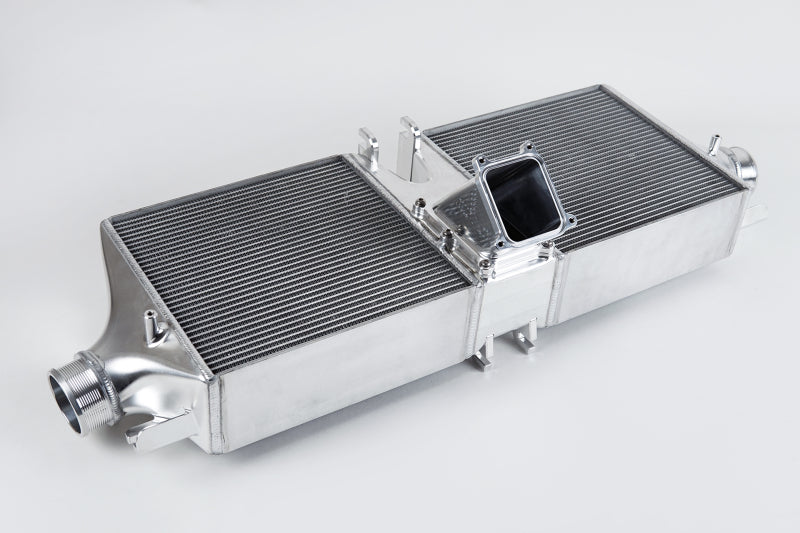

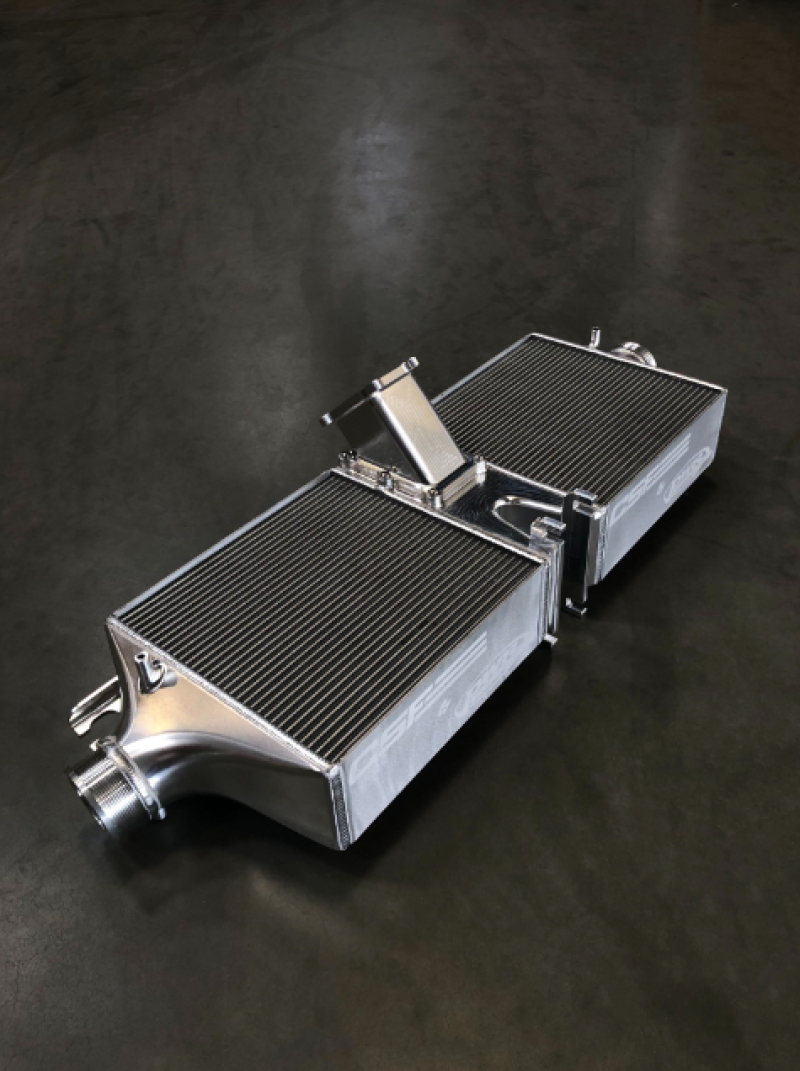

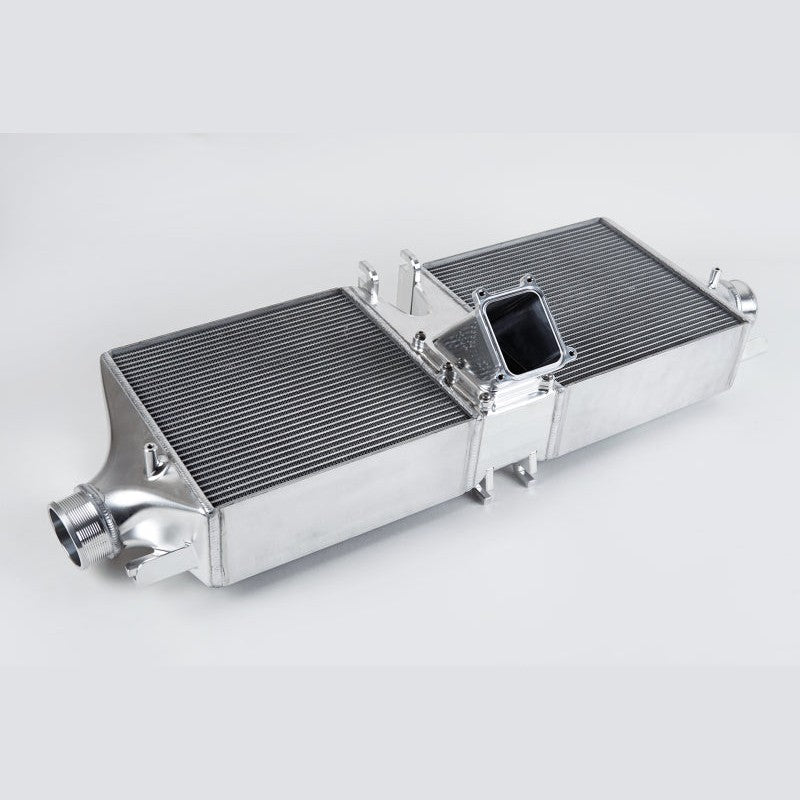

CSF 8188 High-Performance Intercooler System for 2021-2026 Porsche 911 (992) (3.0T)

Fits 2021-2026 Porsche 911 Carrera, Carrera S, Carrera T, Turbo, Turbo S, Sport Classic, and Turbo 50 Years (3.0T).

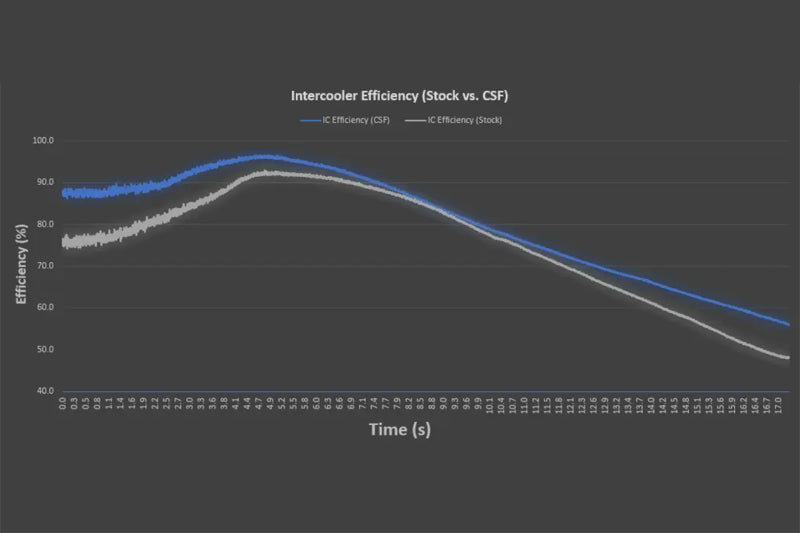

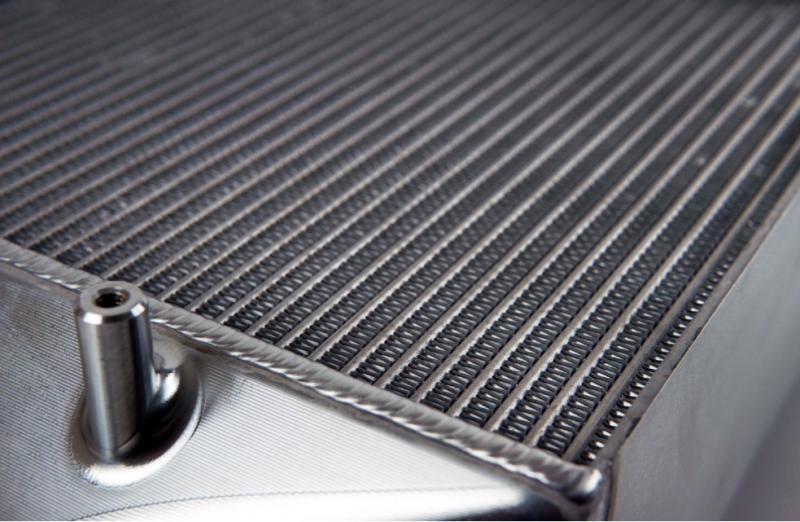

The CSF 8188 High-Performance Intercooler System is a premium thermal management solution for the Porsche 992 chassis. Developed in a strategic partnership with PWR, this system utilizes Formula-1 grade cores featuring two rows of 3mm rolled cooling tubes with inner fins. This advanced design provides superior heat dissipation compared to traditional bar-and-plate or tube-and-fin setups, effectively eliminating heat soak and maintaining lower intake air temperatures (IATs) during aggressive track use or high-boost street driving.

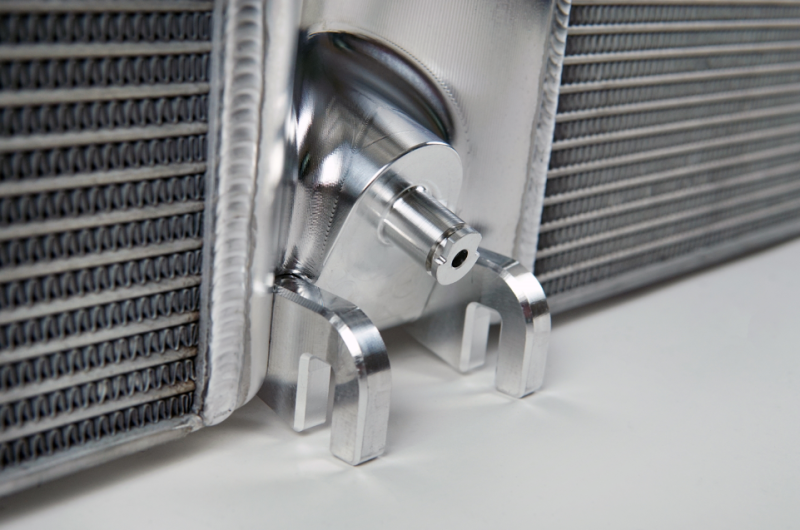

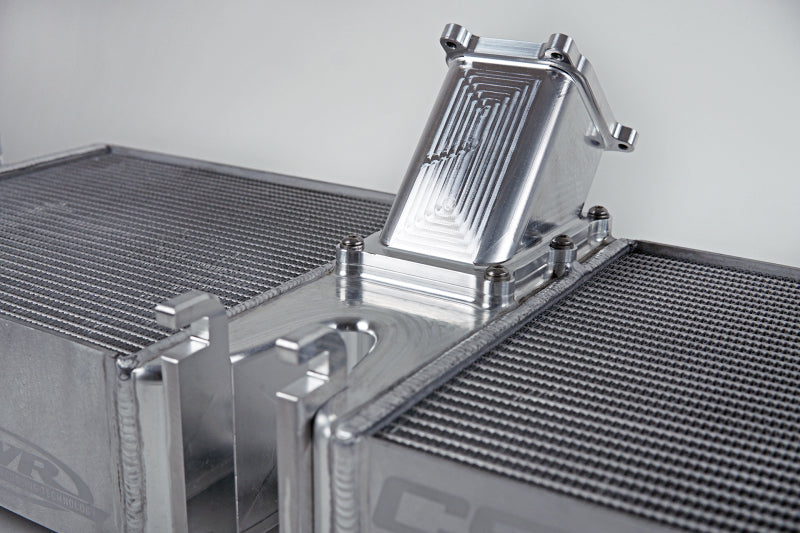

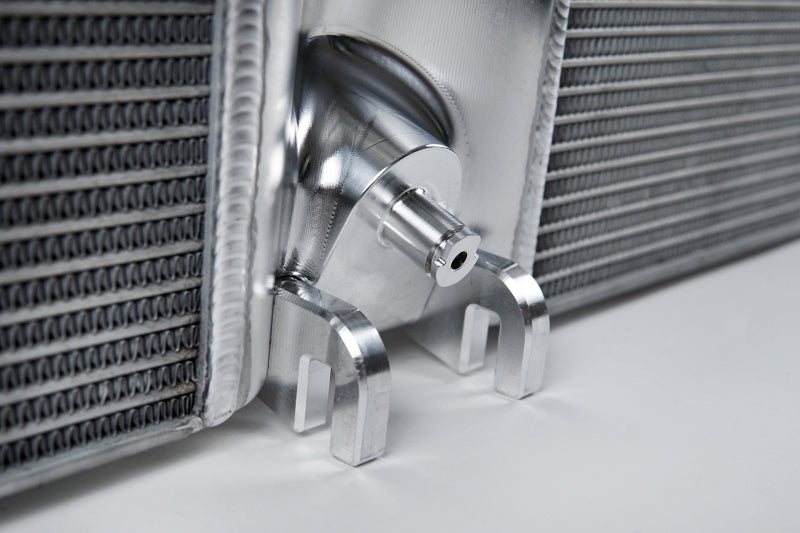

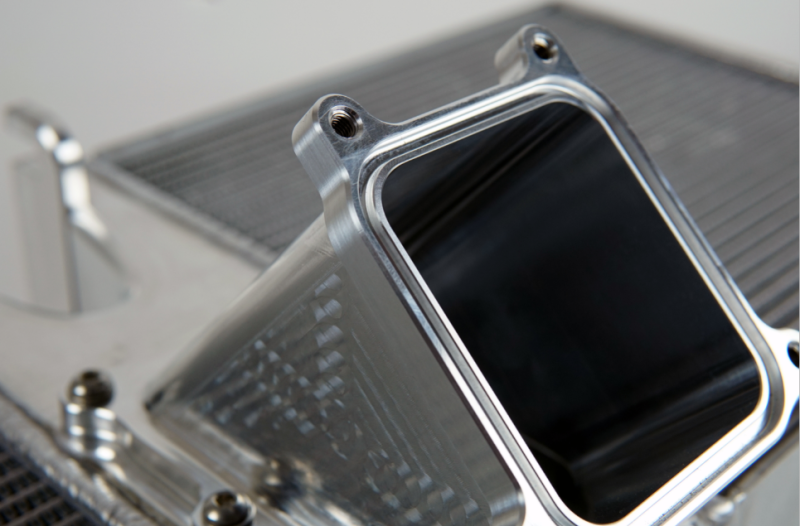

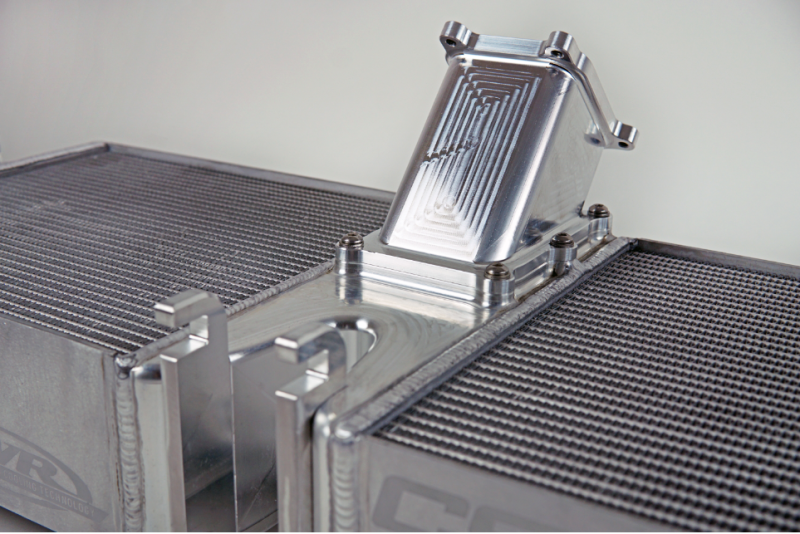

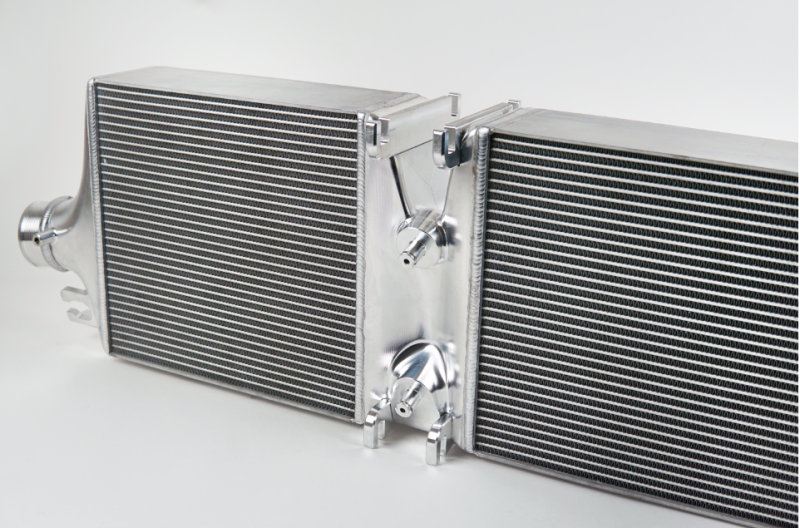

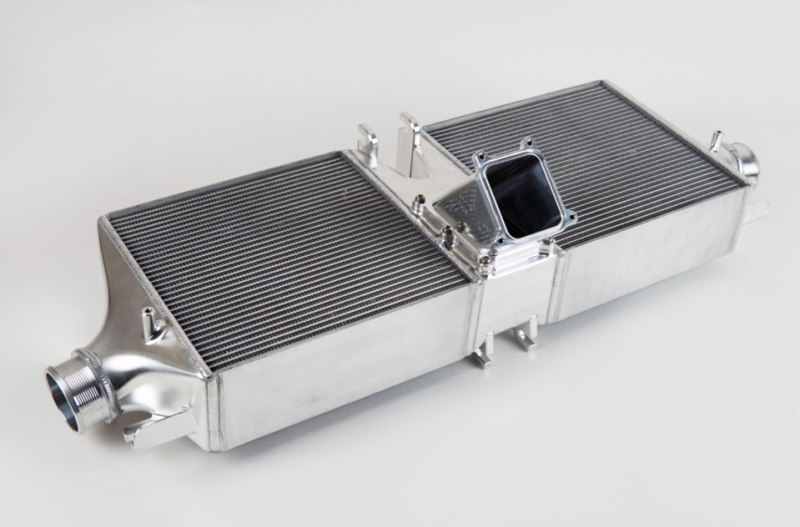

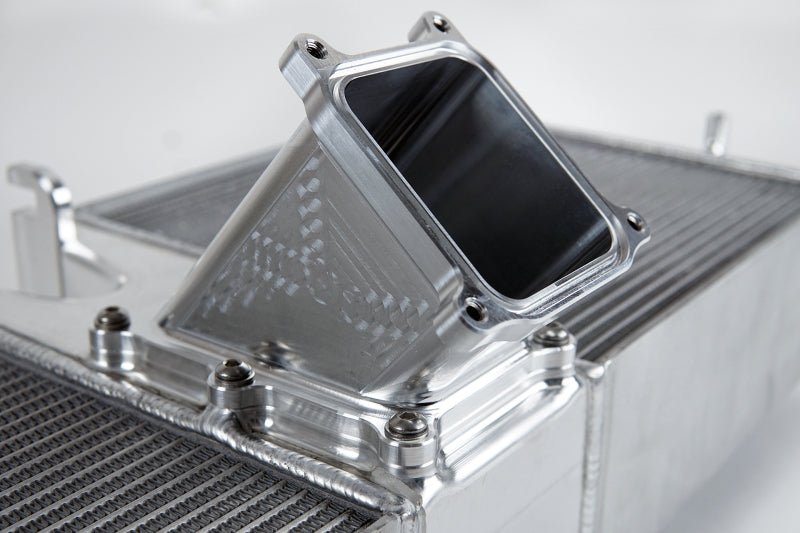

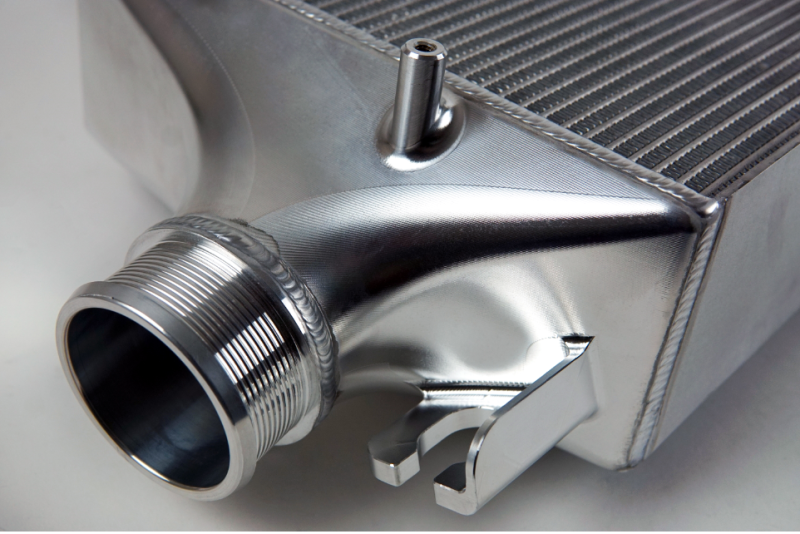

Construction features 100% TIG-welded billet aluminum end tanks, replacing the factory plastic tanks that are prone to leaking under increased pressure. The system includes an integrated Y-pipe connection to the throttle body and CNC-machined inlet/outlet connections for a precise, drop-in fit. To support high-performance tuning, the assembly includes three 1/8 NPT ports for methanol injection or boost monitoring.

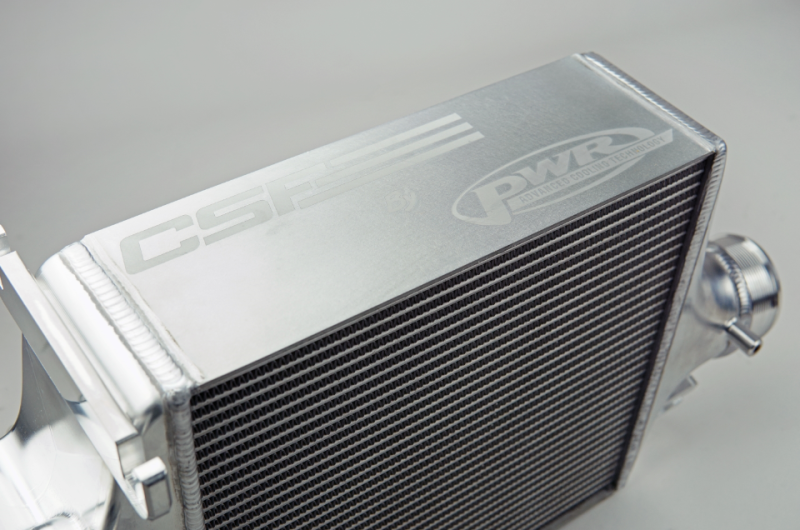

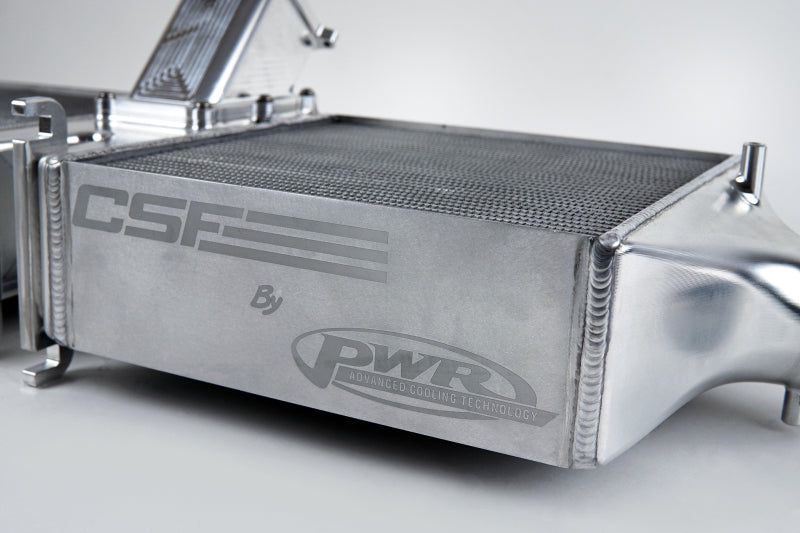

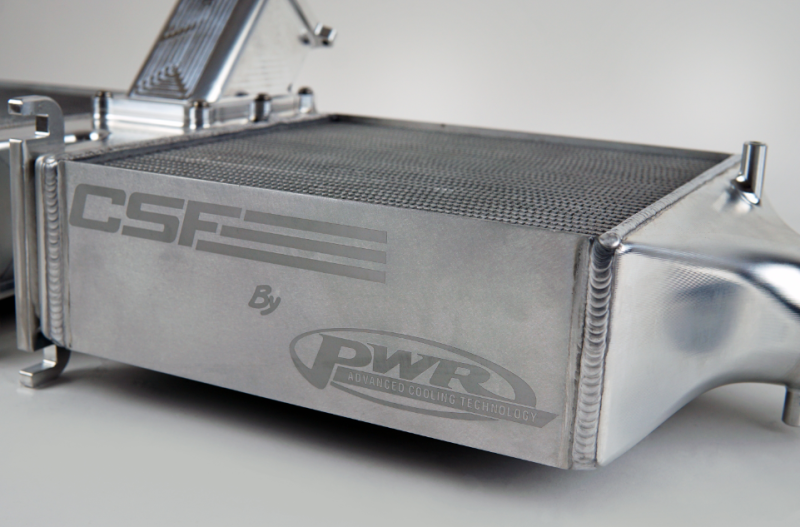

• Formula-1 performance grade cores by PWR North America

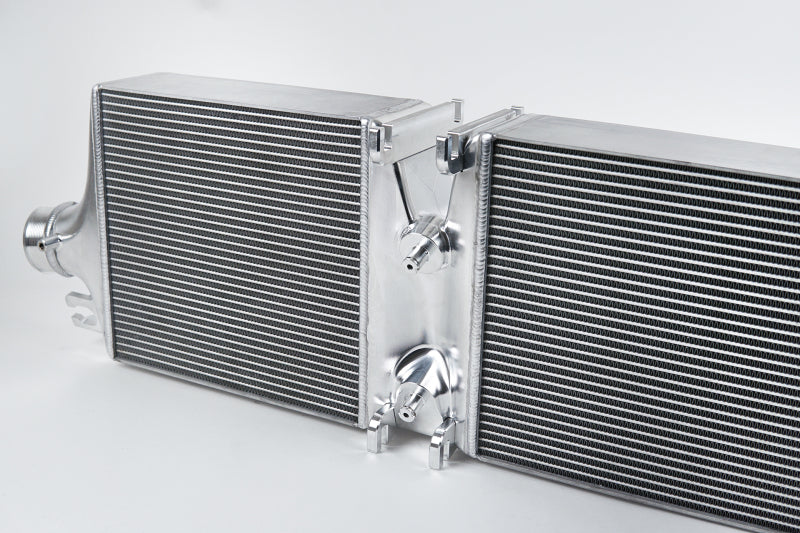

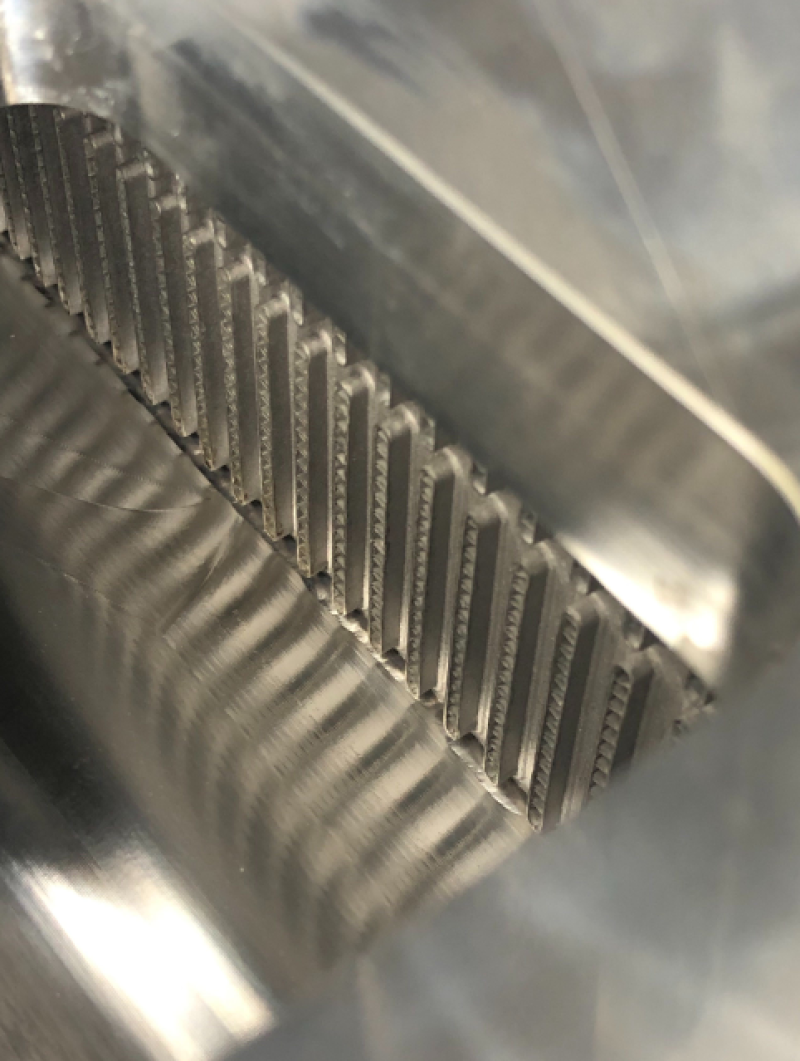

• 2-row core design with 33 rolled tubes (vs. 17 OEM)
• High-efficiency 4.85mm fin height for maximum surface area
• 100% TIG-welded billet aluminum construction for maximum durability

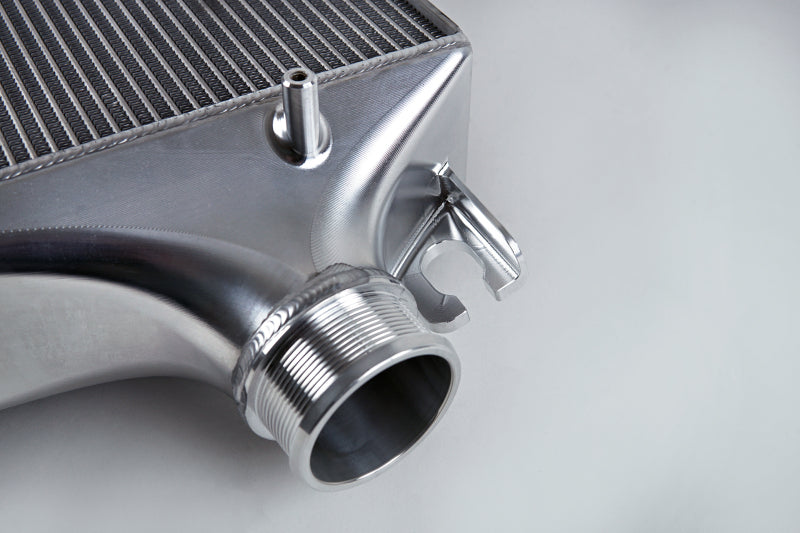

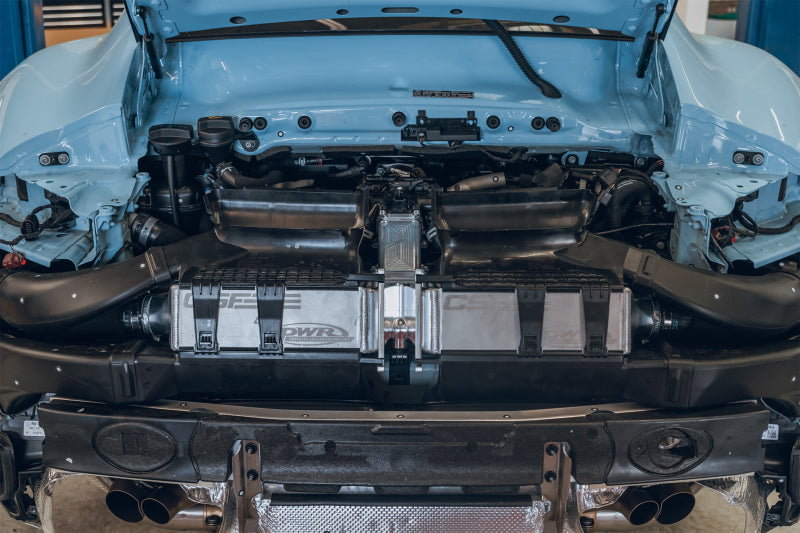

• True plug-and-play installation with CNC-machined OEM-style connections
• Lightweight engineered design weighing only 20 lbs (9.07 kg)
• Three 1/8 NPT ports for methanol injection or boost sensors
• Manufacturer Part Number: 8188
