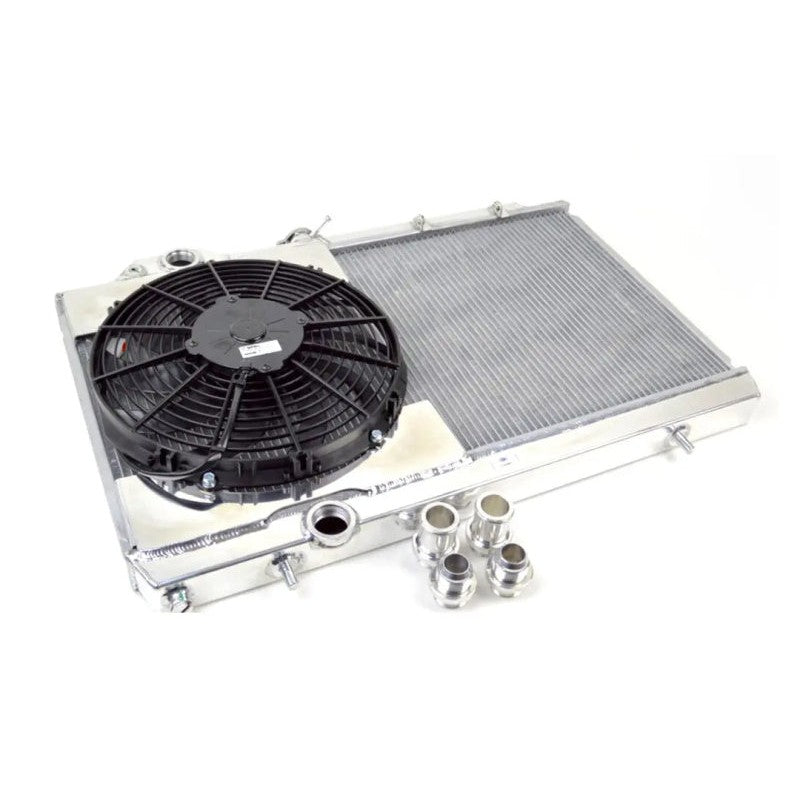

CSF 7075 42mm 2-Row Full-Slim Radiator w/ 12in Fan & Shroud for 2003-2006 Mitsubishi Lancer Evolution 4/5/6/7/8/9 (-16AN & Slip-On)

Fits 2003-2006 Mitsubishi Lancer Evolution models (including MR, RS, and SE).

The CSF 7075 High-Performance Full-Slim Radiator is engineered for Mitsubishi Evolution owners who need maximum cooling efficiency in a compact footprint. This unit is ideal for high-horsepower builds and race vehicles where engine bay space is limited by large turbochargers or custom manifold setups. By combining a high-capacity 42mm core with an included 12-inch fan and shroud, CSF provides a complete cooling solution that performs on the street and the track.

• B-Tube Technology: Unlike standard "O" type tubes, CSF’s exclusive "B-tubes" are seam-brazed to increase heat transfer surface area by approximately 15% for superior cooling efficiency in the same core volume.
• Ultra-Efficient Fins: Features a 6.5mm fin height and multi-louvered design for maximum surface area contact, wind-tunnel tested for peak heat rejection.
• Precision Construction: CNC-machined brackets and "Quick-Connect" inlet/outlet fittings ensure a durable, drop-in fit that accepts all OEM components including quick-connect hoses and AC condensers.
• Dual Fitting Options: Equipped with both -16AN and slip-on connections to accommodate various cooling system configurations.

• Manufacturer Part Number: 7075
• Core Type: 2-Row 42mm Dual Core
• Material: All-Aluminum with 1-Hour "Mirror Finish" Hand Polish
• Included Hardware: 12-inch electric fan, shroud, and race-style drain plug
• Technology: CSF B-Tube and Multi-Louvered Fin Design
