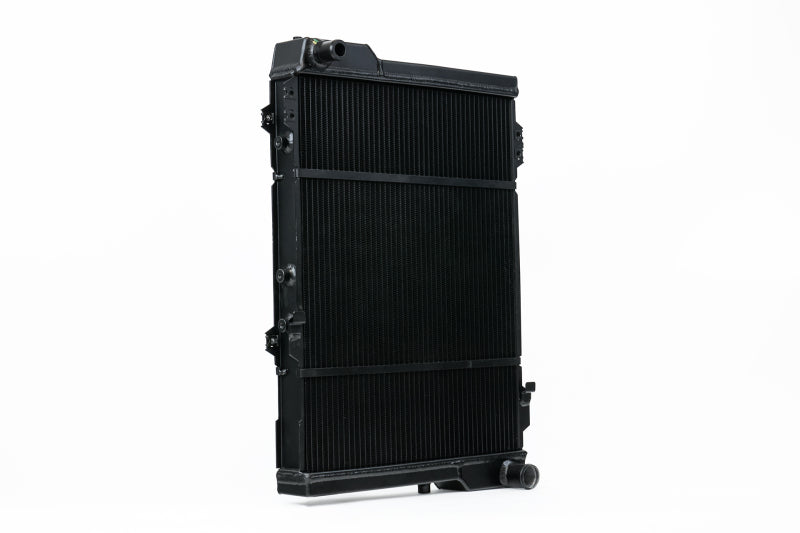

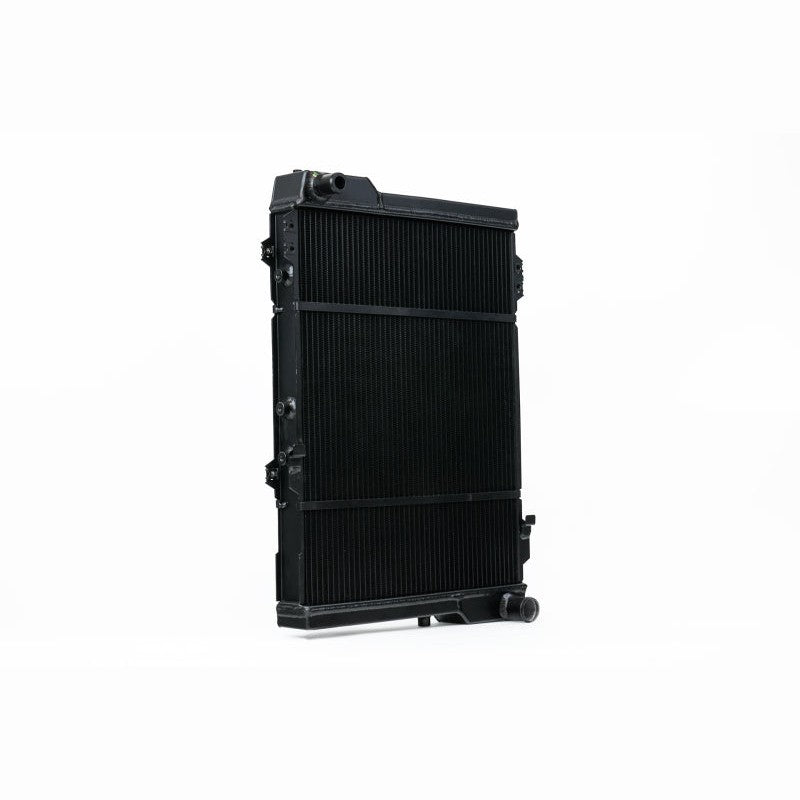

CSF 7208 High-Performance 2-Row Dual Pass Aluminum Radiator for Select 1980-1992 Audi (5-Cylinder)

The CSF 7208 is a high-performance, all-aluminum radiator engineered for classic Audi small-chassis platforms (B1-B4). Fits select 1980-1992 Audi 4000, 80, 90, Coupe GT, and Quattro (5-Cylinder). Designed for high-horsepower street builds and competitive motorsports, this radiator replaces the aging factory unit with a 42mm, 2-row dual-pass core for superior thermal management.

This radiator utilizes CSF's exclusive B-Tube technology. Unlike standard oval "O" type tubes, the B-Tube is seam-brazed to increase heat transfer surface area by approximately 15%, providing the cooling efficiency of two smaller tubes within the same space. Paired with 6.5mm multi-louvered fins, the design maximizes airflow and heat rejection. The TIG-welded construction and satin black finish provide a durable, OEM+ aesthetic that installs with no modifications required.

• Vehicle Fitment: Fits 1980-1992 Audi 4000, 80, 90, Coupe, and Quattro (5-Cylinder models).
• Core Specs: 2-Row, 42mm Dual Pass core for maximum cooling capacity.
• B-Tube Technology: Seam-brazed design for increased surface area and dual liquid laminar flow.
• Construction: 100% all-aluminum TIG-welded build with CNC-machined mounting brackets.
• Finish: Satin Black finish for a discreet, factory-style appearance.
• Ports: M22x1.5 sensor ports (early models with M20x1.5 sensors require an adapter).
• Installation: True drop-in fit with multiple overflow pipe locations and fan shroud mounting points.
• Quality Assurance: Individually leak and pressure tested; includes a 2-year limited warranty.
• Part Number: 7208
