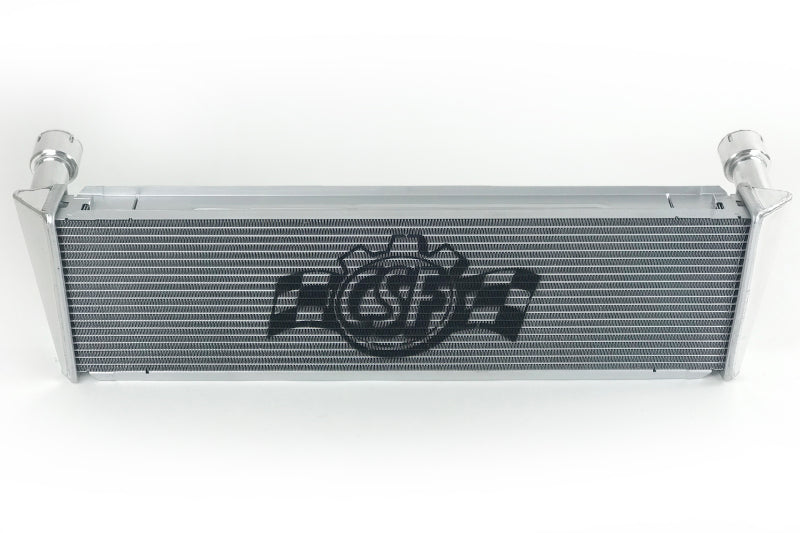

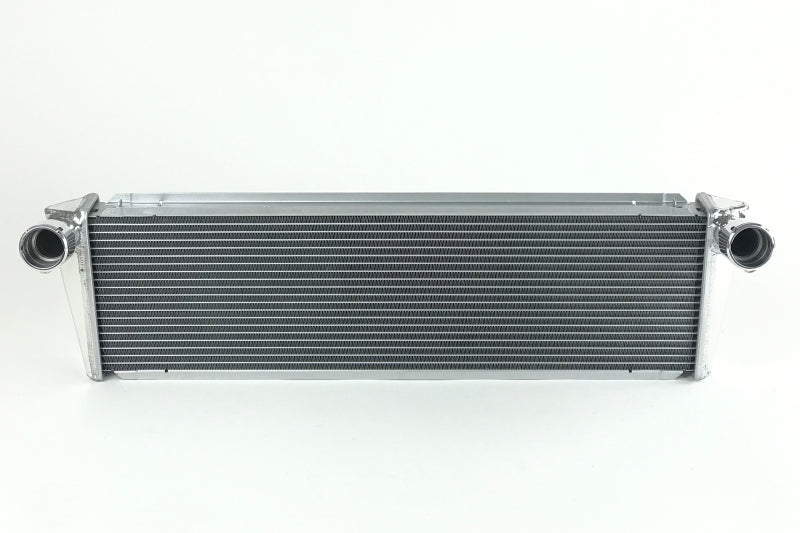

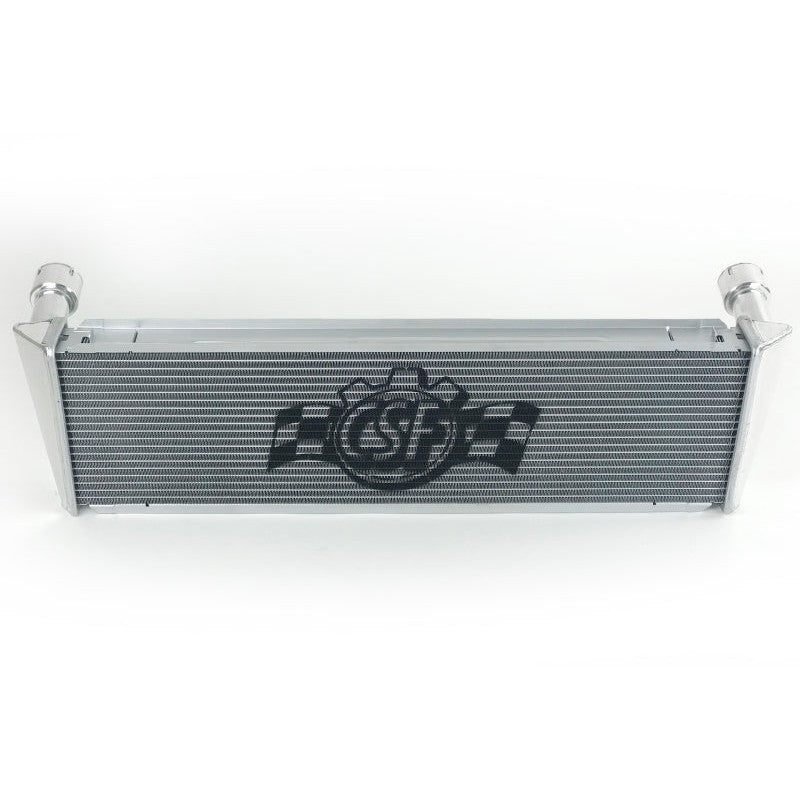

CSF 7054 High-Performance All-Aluminum Center Radiator for 2007-2012 Porsche 911 Turbo/S (997)
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Fits 2007-2012 Porsche 911 Turbo and Turbo S (997).
Keep your engine temperatures in check during track days and high-performance street driving with the CSF High-Performance All-Aluminum Center Radiator. Engineered for high-horsepower builds, this radiator (MPN: 7054) replaces the plastic-tank factory unit with a 100% TIG-welded aluminum assembly designed for maximum heat rejection and durability.

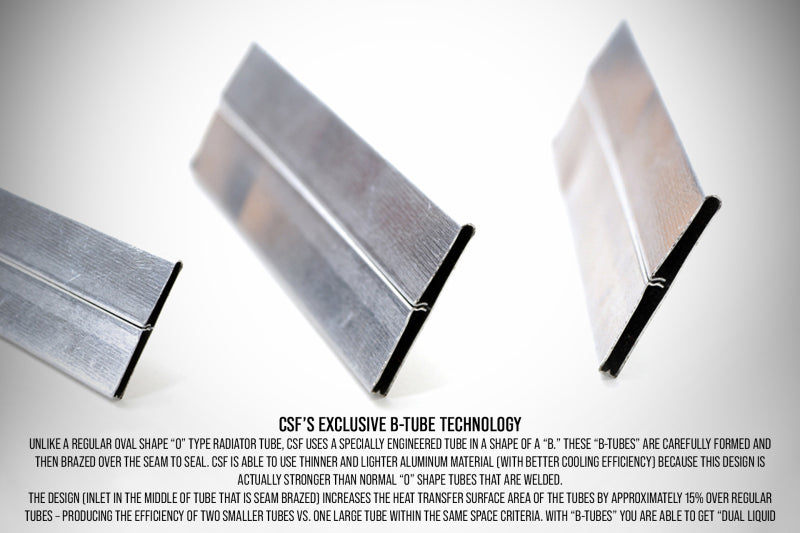

At the heart of this radiator is CSF's exclusive B-Tube technology. Unlike traditional O-shape tubes, the B-tube design is formed from a thinner, lighter aluminum that is brazed over a center seam. This unique geometry increases the heat transfer surface area by approximately 15% and creates a dual liquid laminar flow for superior cooling efficiency. Combined with a 42mm 2-row core and high-efficiency 6.5mm multi-louvered fins, this unit is tested in wind-tunnel labs to ensure maximum airflow and thermal performance.
This radiator is a true "drop-in" fit, utilizing CNC-machined brackets and OEM-style inlet/outlet connections to ensure a seamless installation with no modifications required. It is designed to work perfectly with the factory AC condenser and fan shroud.

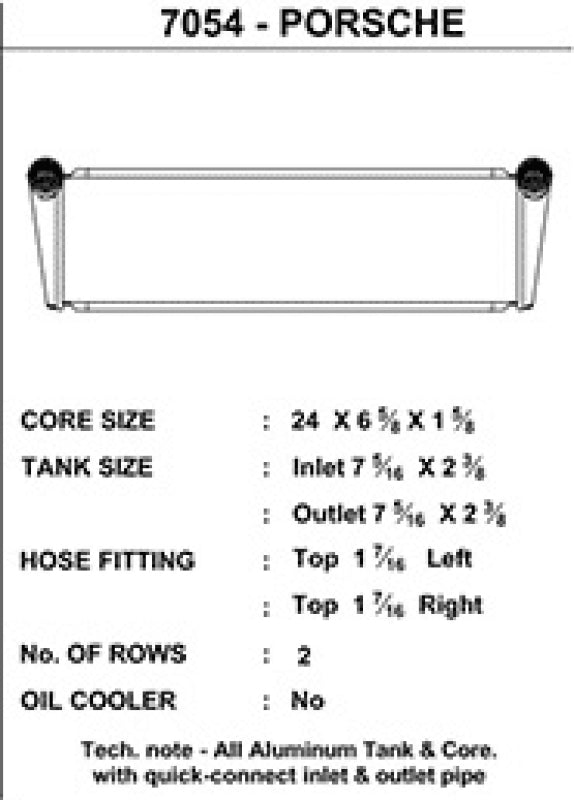

- 2-Row 42mm core featuring CSF exclusive B-Tube technology (+20% efficiency)

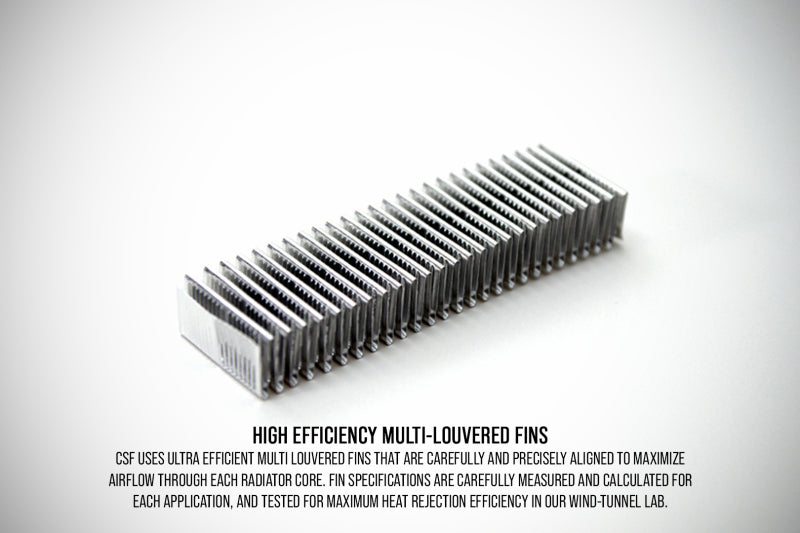

- 6.5mm fin height with multi-louvered design for maximum surface area
- All-aluminum construction with 100% TIG-welded end tanks
- CNC-machined brackets and OEM-style quick-connect inlet/outlets
- Accepts factory OEM AC condenser and fan shroud
- Individually leak and pressure tested
- Smooth satin finish
- Manufacturer Part Number: 7054
🔧 Fitment & Compatibility
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010-2012 | Porsche | 911 | Turbo |
| 2011-2012 | Porsche | 911 | Turbo S |
