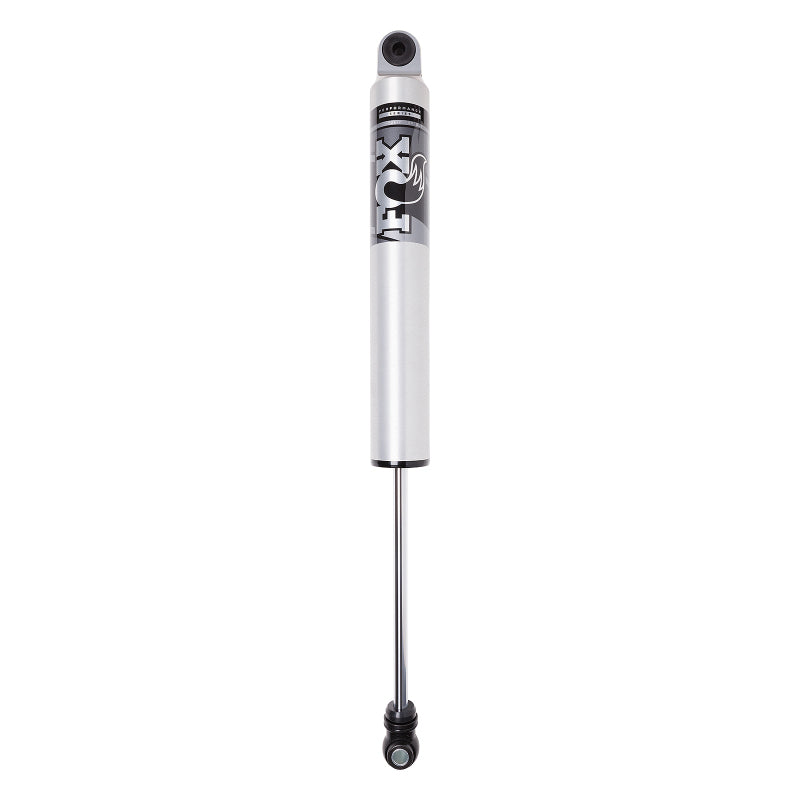

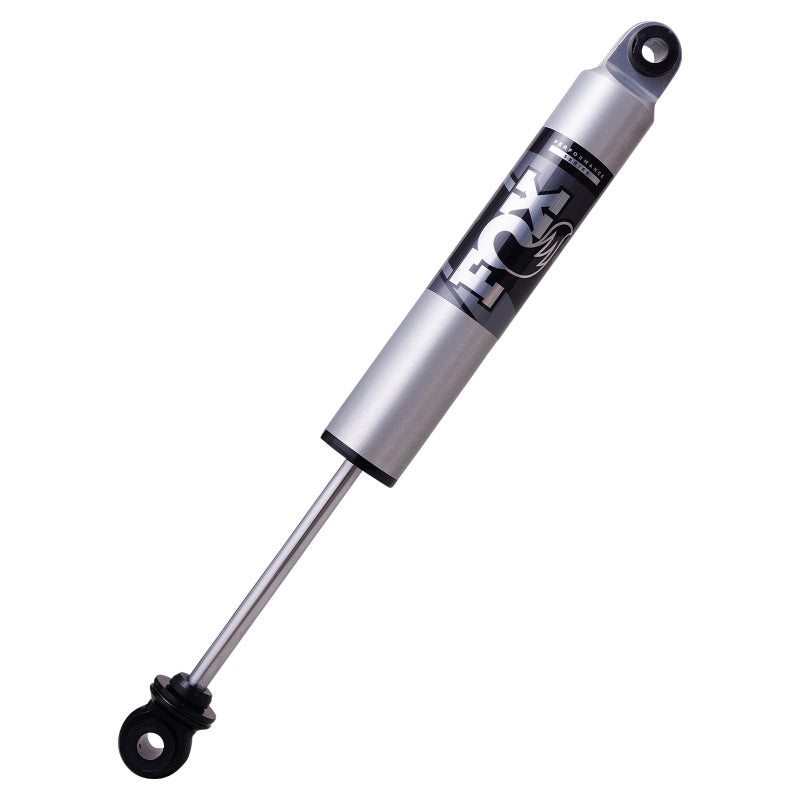

Fox 2014-2025 Ram 2500 4WD Rear 2.5 Performance Series Smooth Body IFP HTO Shock (0-1.5" Lift)

Fits 2014-2025 Ram 2500 4WD models with 0-1.5 inches of rear lift.

The Fox 2.5 Performance Series Smooth Body IFP HTO shock is engineered to provide superior heat management and damping control for heavy-duty trucks. The 2.5-inch impact-extruded 6061-T6 aluminum body dissipates heat four times more effectively than conventional steel, ensuring consistent performance even under heavy loads or off-road use. This shock features Fox's Internal Floating Piston (IFP) technology, which separates the high-pressure nitrogen charge from the oil to prevent aeration and fluid foaming.

The integrated Hydraulic Top Out (HTO) piston provides a controlled cushion at the end of the extension stroke, preventing harsh metal-to-metal contact during full suspension drop-out. This rebuildable and re-tunable shock is finished with a Type II clear-anodized coating for maximum corrosion resistance and features a hardened chrome shaft for long-term durability in harsh environments.

• 2.5-inch impact-extruded 6061-T6 aluminum shock body
• Internal Floating Piston (IFP) separates gas and oil to prevent aeration
• Hydraulic Top Out (HTO) piston manages full extension impact
• 5/8-inch hard chrome-plated heat-treated alloy steel shaft
• Type II clear-anodized finish for superior corrosion protection
• High-flow, velocity-sensitive damping specifically tuned for Ram 2500
• Fully rebuildable and re-tunable internal components
• Manufacturer Part Number: 987-24-005
