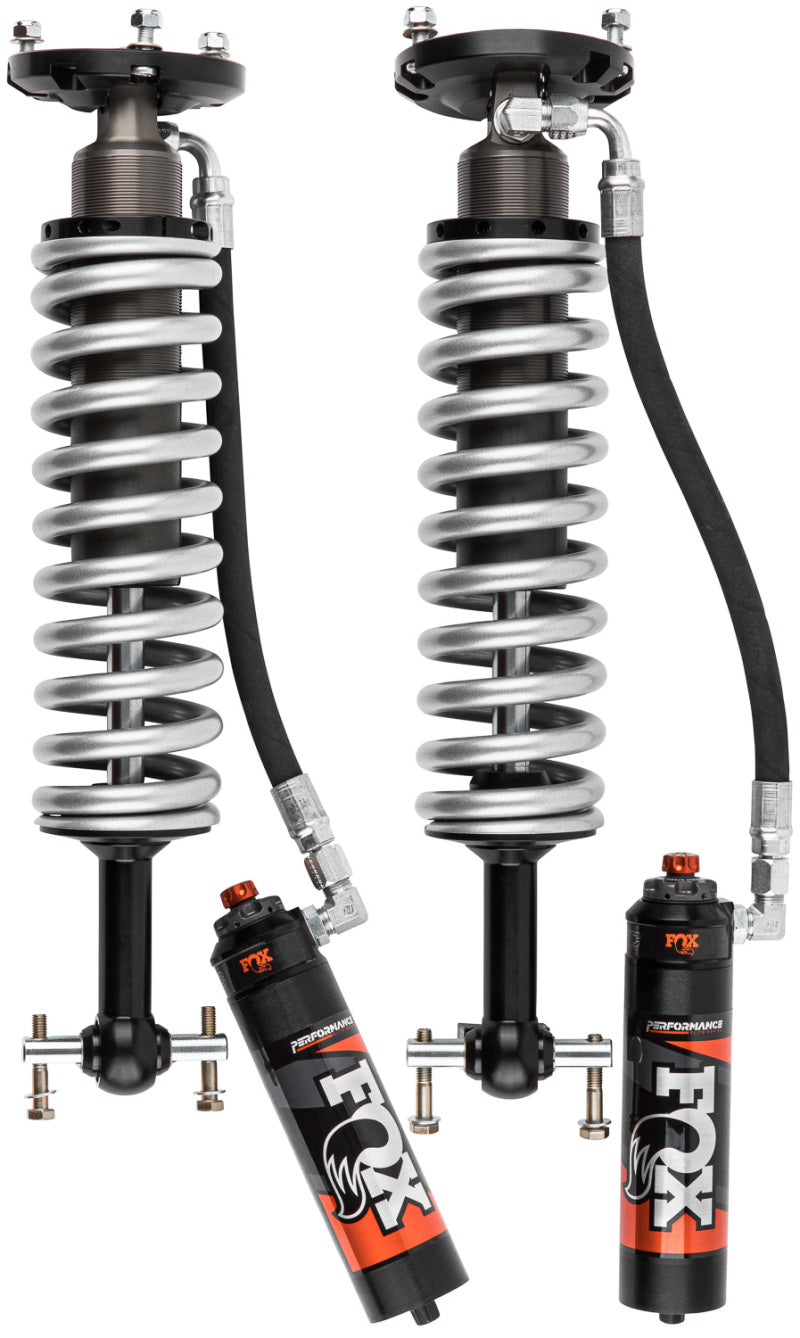

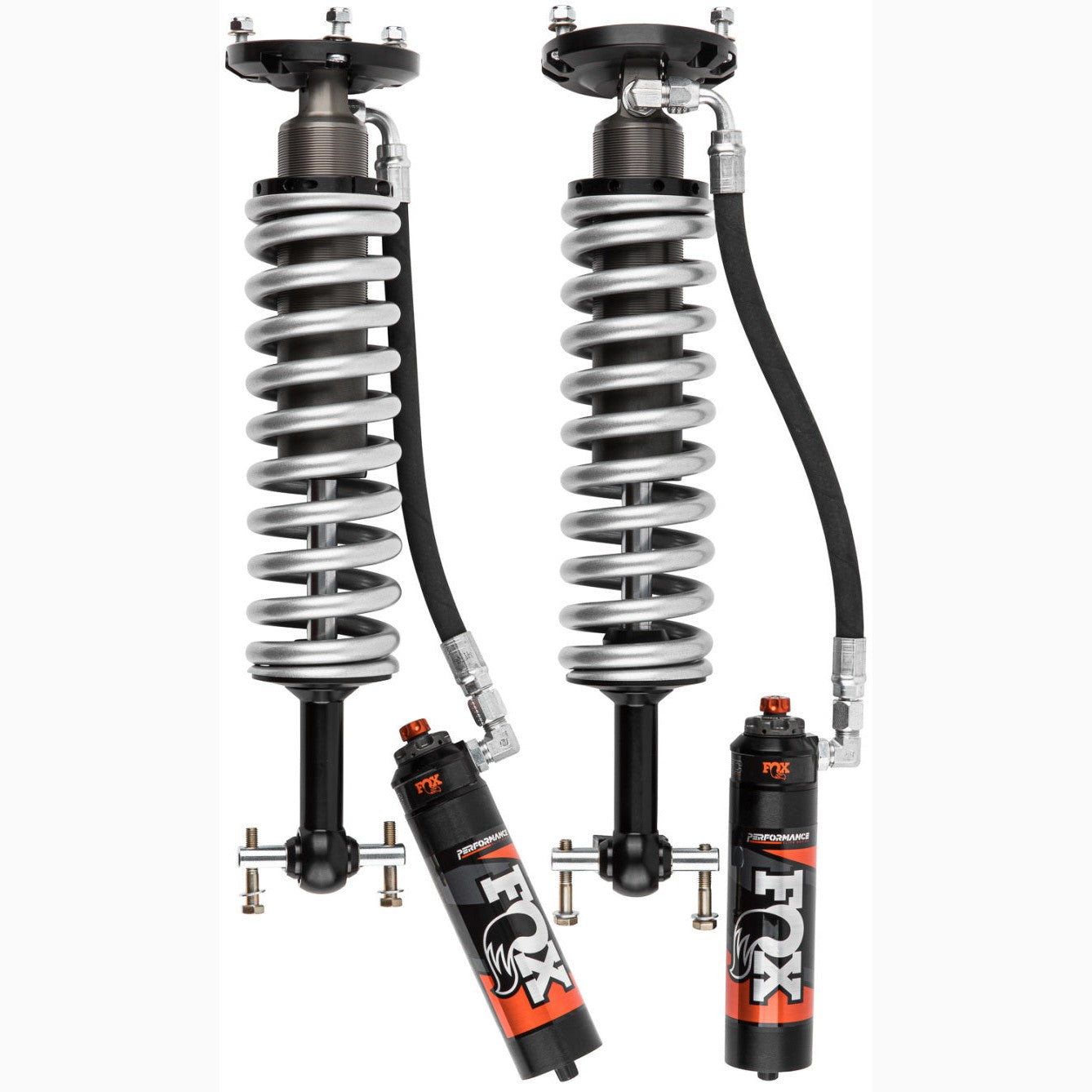

Fox 2.5 Factory Series Front Coilover Reservoir Shocks, 2-3" Lift, 2019-2023 Ford Ranger (Pair) - 883-06-156

Fits 2019-2023 Ford Ranger XL, XLT, and Lariat.

Fox 2.5 Factory Series Coilover Reservoir shocks provide the damping control and heat dissipation required for aggressive off-road use. Engineered for a 2-3" lift, these coilovers increase wheel travel and durability compared to factory struts. The external reservoir system significantly increases internal oil capacity, allowing the high-flow race pistons to maintain consistent performance by dissipating heat more efficiently during high-speed runs or technical trails.

Constructed with a 2.5-inch smooth bore zinc-plated alloy body and a 7/8-inch hard chromed heat-treated shaft, these coilovers are built to withstand harsh environments. The redundant seal pack system ensures long-term reliability, while the black-anodized CNC-machined aluminum components provide a corrosion-resistant finish. These units are fully serviceable, allowing for custom valving or rebuilding over the life of the vehicle.

• MPN: 883-06-156
• Lift Height: 2-3 inches
• Bore Diameter: 2.5 inches
• Shaft Diameter: 7/8-inch hard chrome plated alloy steel
• Body Material: Zinc-plated seamless alloy
• Components: Black-anodized 6061-T6 CNC-machined aluminum
• Reservoir: External system for increased cooling
• Adjustable damping for varied terrain and loads
