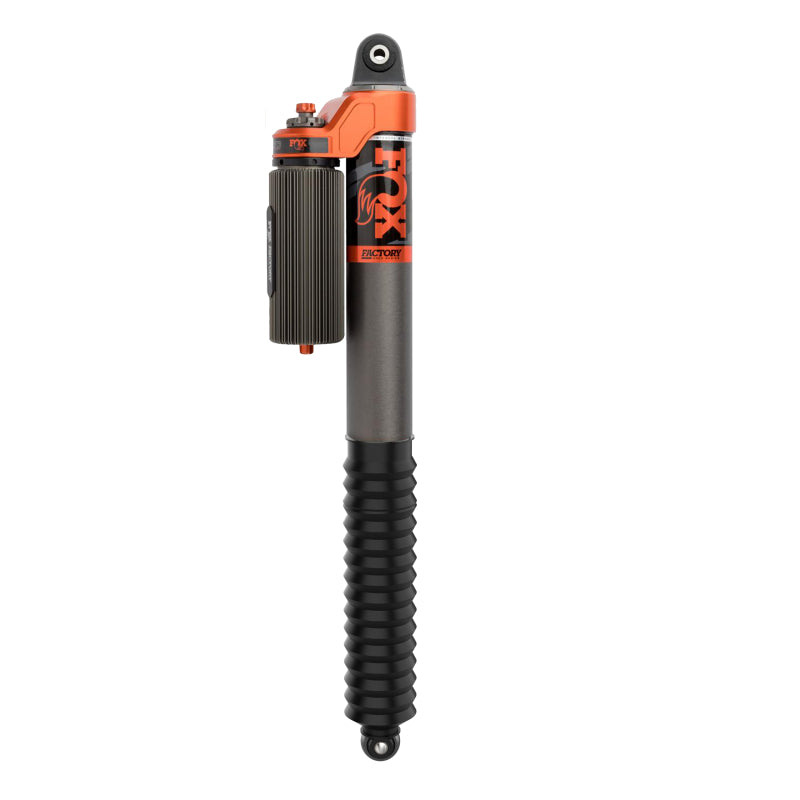

FOX Factory Race Series 3.0 Internal Bypass Piggyback Rear Shock for 2021-2026 Ford F-150 (0-1" Lift) 883-26-121

Fits 2021-2026 Ford F-150 models, including XL, XLT, Lariat, King Ranch, Platinum, Limited, Raptor, and Tremor.

The FOX Factory Race Series 3.0 Internal Bypass shocks deliver position-sensitive damping and race-bred technology in a direct bolt-on package for the 14th generation Ford F-150. These shocks utilize patented Internal Bypass technology to create multiple damping zones, allowing shock fluid to bypass the main piston through bleed holes during normal ride height. As the shock compresses or rebounds further into its stroke, the bleed holes terminate, forcing fluid through the main piston to provide progressive damping that prevents harsh bottom-outs and top-outs.

Equipped with Dual Speed Compression (DSC) adjusters, these shocks allow you to fine-tune high-speed and low-speed compression to match your specific load, terrain, and driving style. To manage heat during aggressive off-road use, the Recirculating Reservoir Bridge circulates fluid between the 3-inch aluminum body and the finned external reservoir through checked ports, ensuring consistent performance in high-temperature environments.

• 3.0-inch diameter 6061-T6 aluminum bodies with Type III hard anodizing for superior corrosion resistance
• Finned external reservoir system for rapid heat dissipation
• Dual Speed Compression (DSC) adjusters for independent high and low-speed tuning
• 7/8-inch hard chrome plated, heat-treated alloy steel shafts
• CNC-machined 6061-T6 aluminum components with black anodized finish
• Redundant sealing pack system including main seal, wiper seal, and scraper seal
• Designed for 0-1 inch of rear lift over factory height
• Manufacturer Part Number: 883-26-121
