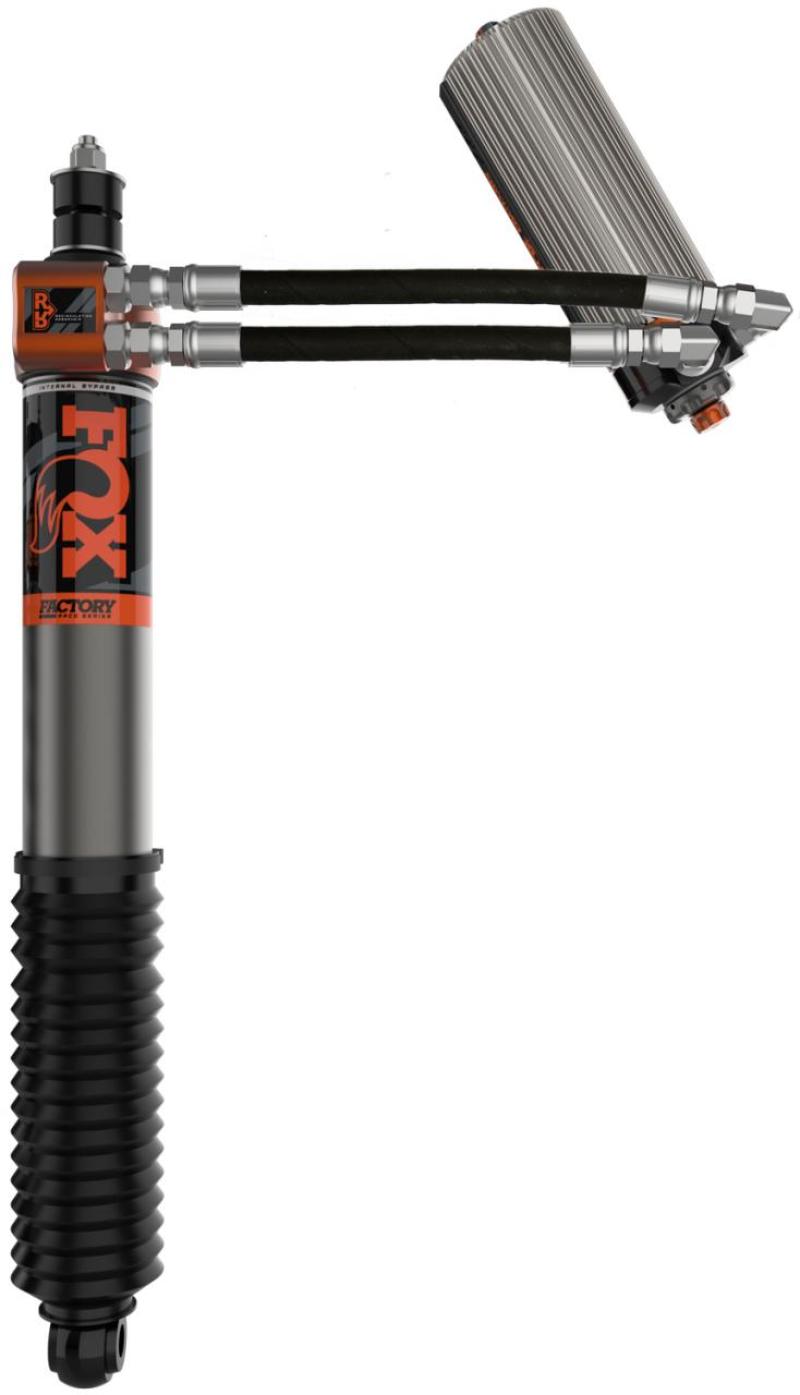

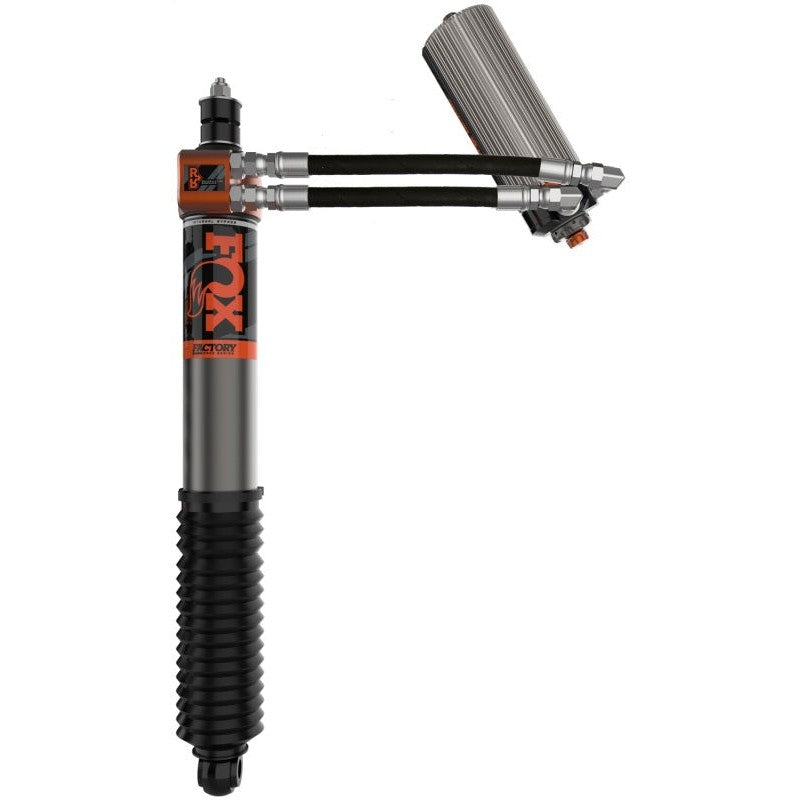

Fox 3.0 Factory Race Series Internal Bypass Rear Coilover; 1.5-2in Lift; 2022-2026 Toyota Tundra

Fits 2022-2026 Toyota Tundra (SR, SR5, Limited, Platinum, 1794 Edition, TRD Pro, and Capstone).

The Fox 3.0 Factory Race Series Internal Bypass rear coilover delivers professional-grade suspension damping for the 2022-2026 Toyota Tundra. Engineered to provide 1.5 to 2 inches of rear lift, these units utilize Fox's patented internal bypass technology to create position-sensitive damping. This allows oil to bypass the piston during the "ride zone" for a plush street feel, while building massive pressure at the ends of the stroke to prevent bottoming out during aggressive off-road use. The integrated Dual Speed Compression (DSC) adjuster provides 12 levels of low-speed and 10 levels of high-speed compression tuning to accommodate varying gear loads and terrain.

• 3.0-inch impact-extruded 6061-T6 aluminum body dissipates heat faster than steel
• Patented internal bypass technology for position-sensitive damping control
• Dual Speed Compression (DSC) adjustment for precise high and low-speed tuning
• External reservoir with Cactus Cooler technology for maximum thermal management
• 7/8-inch hard chrome-plated heat-treated alloy steel shafts
• Redundant shaft seals for extreme environment durability
• Black anodized CNC-machined aluminum components
• Manufacturer Part Number: 883-26-142
