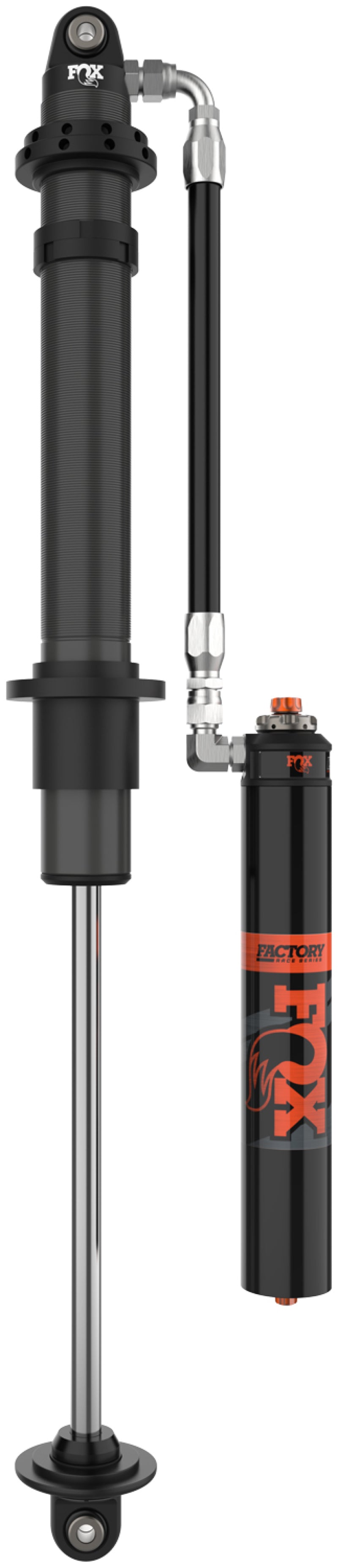

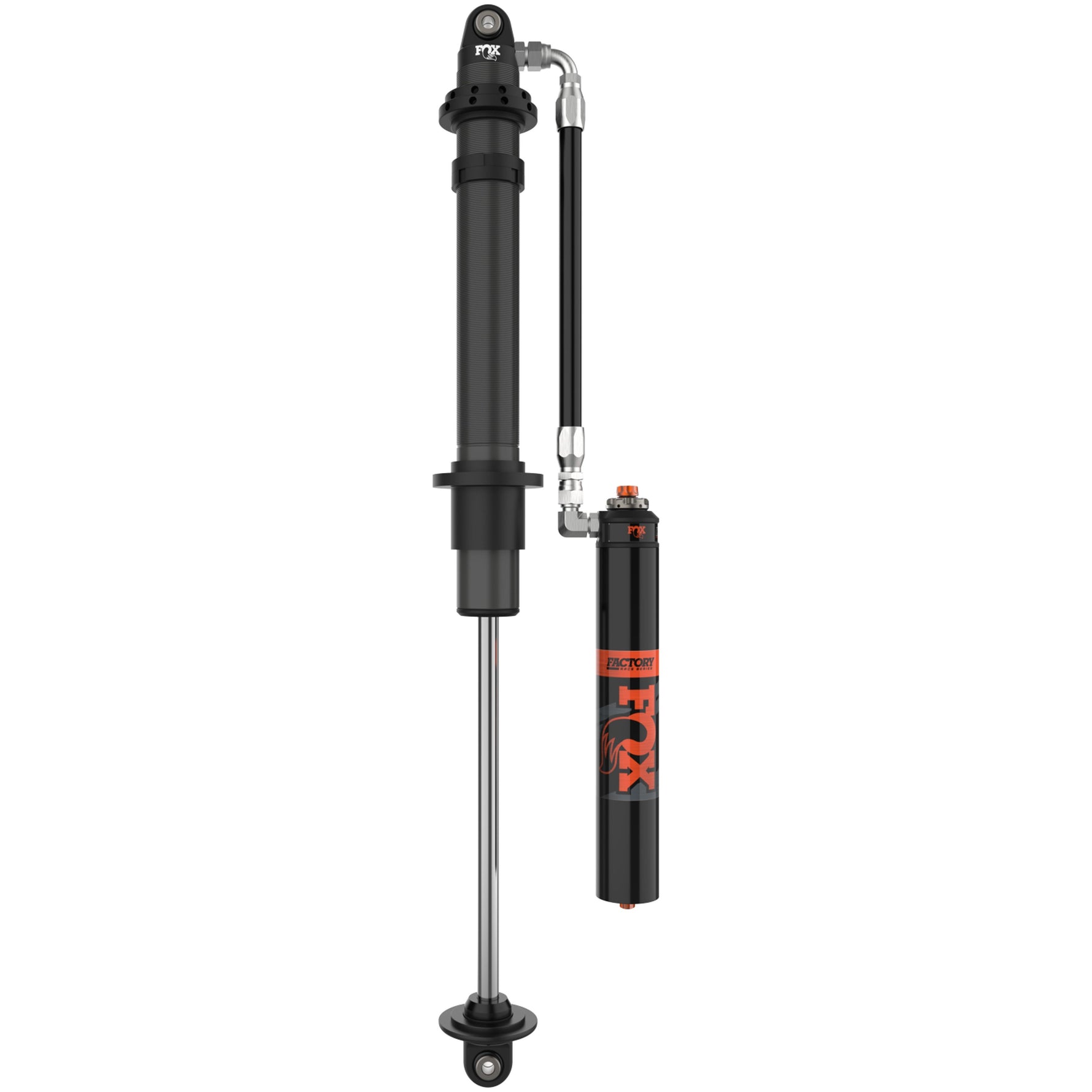

FOX Factory Series 2.5 x 14 Rear Right Coilover Remote Reservoir Internal Bypass Shock (981-25-109)

The FOX Factory Series 2.5 x 14 Rear Right Coilover Remote Reservoir Shock (981-25-109) utilizes race-proven internal bypass technology to provide position-sensitive damping for high-performance off-road applications. By allowing oil to flow around the piston within the primary ride zone while ramping up pressure at the end of the stroke, this shock delivers a plush ride without sacrificing bottom-out control. The integrated Dual Speed Compression (DSC) adjustment allows you to fine-tune high- and low-speed compression to match your specific vehicle weight and terrain.

Built to withstand the most demanding environments, the 2.5-inch aluminum body is protected by a proprietary Cerakote ceramic coating over a zinc-plated basecoat for superior corrosion resistance. The internal components are lubricated with JM92 MIL-SPEC oil, designed to maintain viscosity and performance under the extreme heat generated during off-road racing. This unit is fully owner-serviceable and rebuildable to ensure long-term performance.

• Manufacturer Part Number: 981-25-109
• 2.5-inch aluminum body with proprietary Cerakote protective ceramic coating
• 14-inch travel stroke
• 7/8-inch 17-4 H900 hard chrome plated stainless steel shaft
• Internal bypass technology with Dual Speed Compression (DSC) adjustment
• Remote reservoir with Cactus Cooler design for optimized thermal management
• Black anodized CNC-machined aluminum components
• JM92 MIL-SPEC oil for consistent damping in extreme conditions
• Fully owner-serviceable and rebuildable
