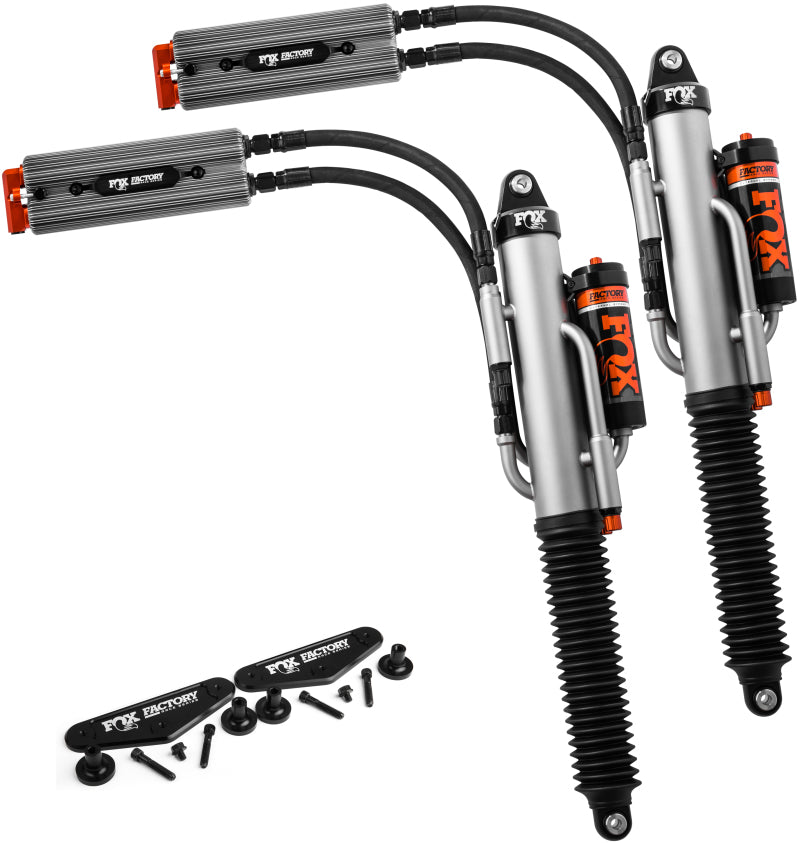

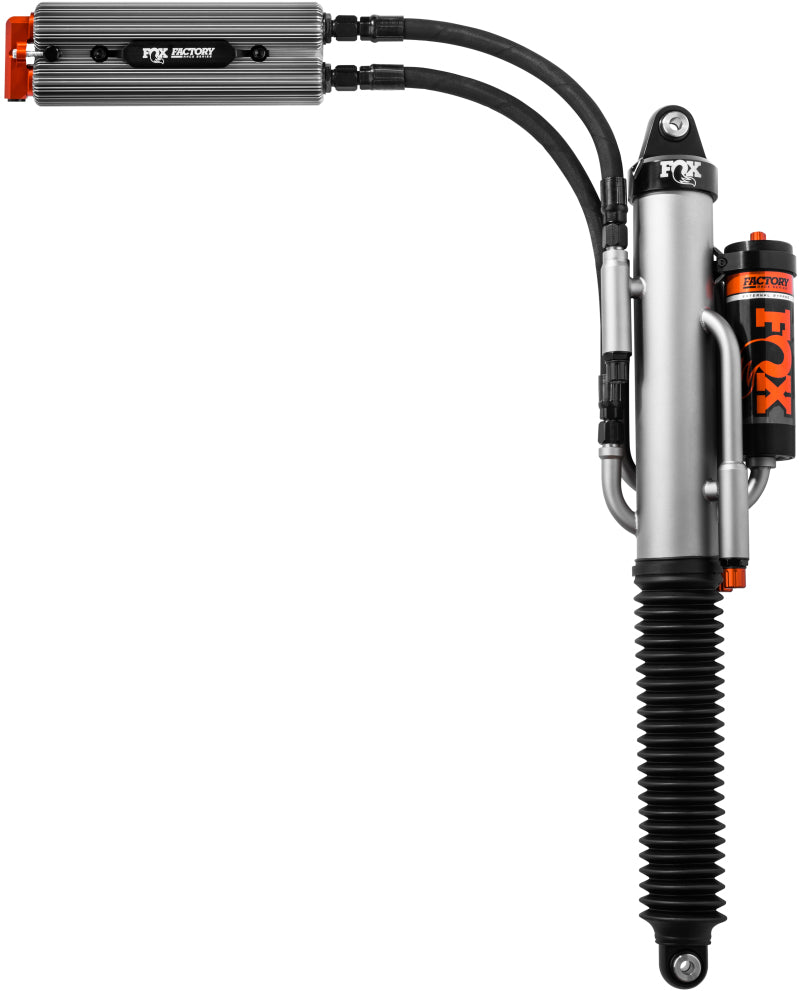

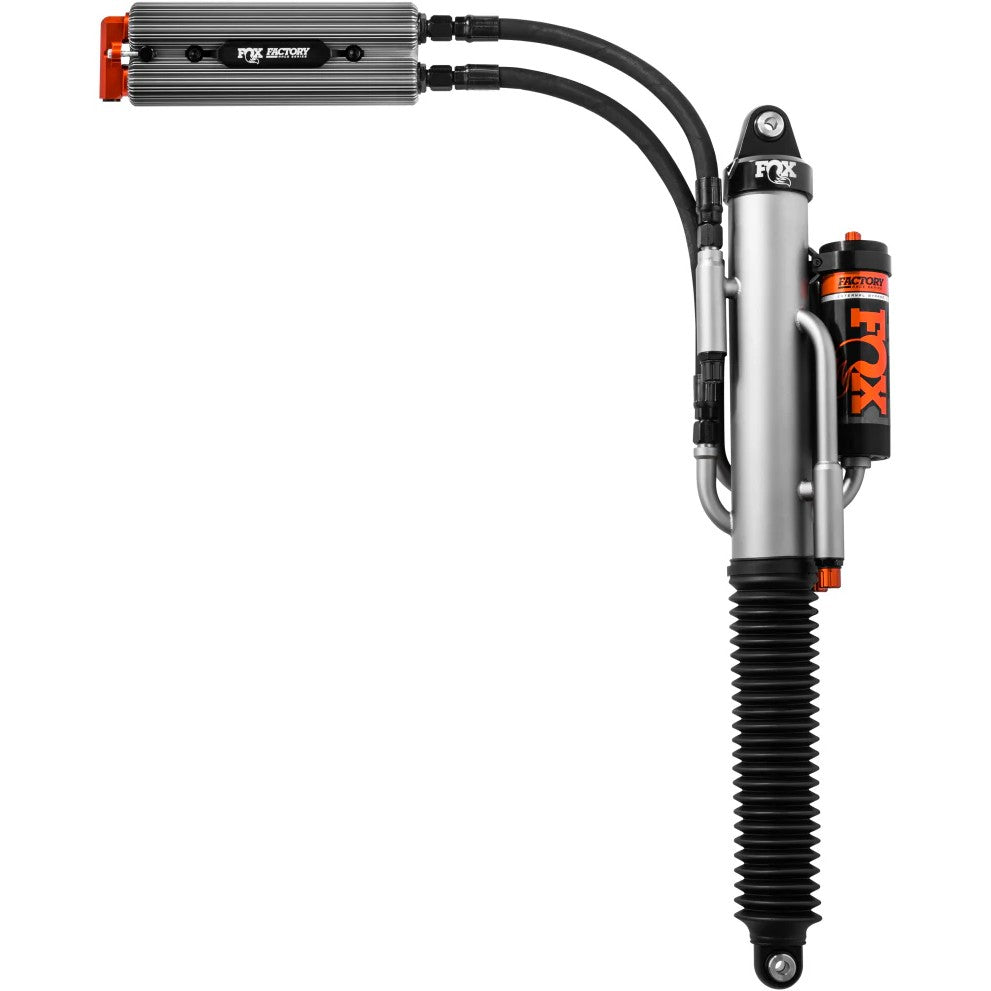

Fox 3.0 Factory Series Internal Bypass Rear Shocks for 2017-2018 Ford F-150 Raptor (12.27in Travel, QAB Reservoir) - 883-09-141

Fits 2017-2018 Ford F-150 Raptor.

Engineered for uncompromised off-road performance, the Fox 3.0 Factory Series Internal Bypass rear shock set utilizes race-proven technology to deliver a near-endless suspension feel. The patented internal bypass design allows oil to bypass the piston through specific ports during the ride zone for plush comfort, while ramping up hydraulic pressure at the ends of the stroke to prevent bottoming out during high-velocity impacts.

These shocks feature 3-inch zinc-plated seamless alloy bodies and external piggyback reservoirs to maximize oil capacity and heat dissipation. The Quick Adjust Bypass (QAB) knobs allow for rapid, tool-free tuning to account for varying terrain and vehicle loads. Equipped with heavy-duty 7/8-inch 17-4 H900 stainless steel shafts and Teflon-lined heat-treated spherical bearings, this set is built to endure the harshest desert environments and is fully serviceable for long-term use.

• Manufacturer Part Number: 883-09-141
• 3.0-inch zinc-plated seamless alloy shock bodies
• 12.27-inch travel with external piggyback reservoirs
• Patented internal bypass technology for position-sensitive damping
• 7/8-inch hard chrome-plated 17-4 H900 stainless steel shafts
• Black-anodized CNC-machined 6061-T6 aluminum components
• Quick Adjust Bypass (QAB) knobs for external damping control
• ORB O-ring port fittings for a superior, leak-free seal
• Redundant sealing system for long-term off-road durability
• 100% serviceable and tunable design
