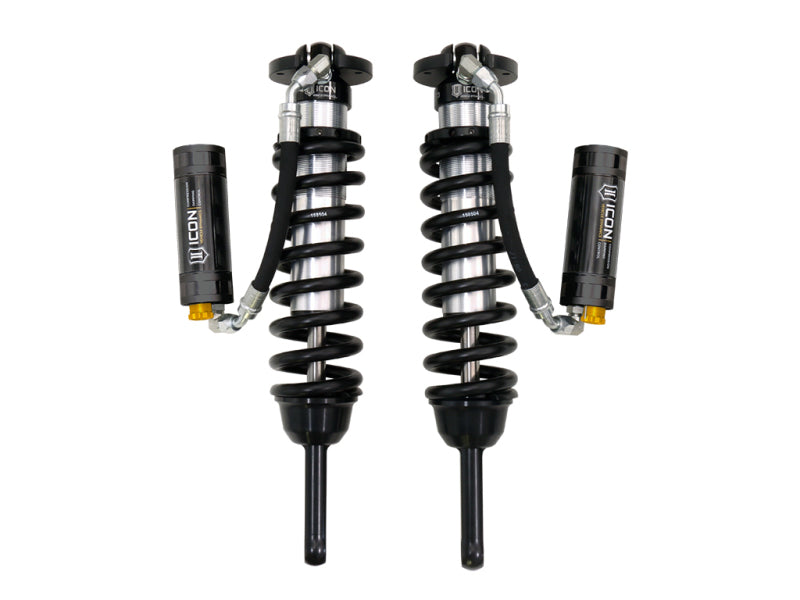

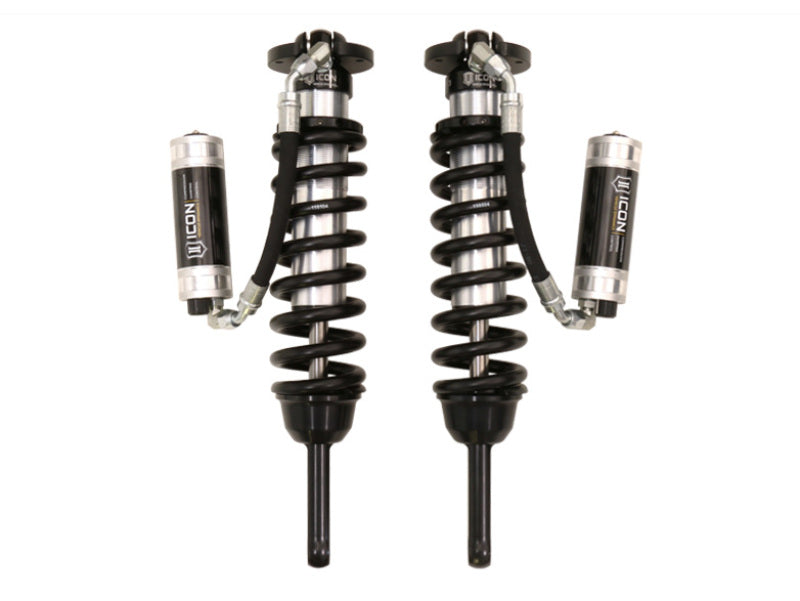

ICON V.S. 2.5 Series Remote Reservoir CDCV Extended Travel Coilover Kit for 2005-2023 Toyota Tacoma
$2,287.95
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Fits 2005-2023 Toyota Tacoma (Base, Pre Runner, TRD Pro, TRD Off-Road, SR, SR5, Trail, and X-Runner).
Upgrade your front suspension with ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Coilovers. This kit is engineered to significantly improve ride quality and off-road capability for the 2005-2023 Toyota Tacoma. The 2.5-inch shock bodies provide a larger piston area compared to factory components, yielding superior damping control. Remote reservoirs dramatically increase oil volume and surface area, dissipating heat to prevent cavitation and shock fade during aggressive use.
These Extended Travel coilovers are equipped with ICON’s exclusive Compression Damping Control Valve (CDCV) system. This externally adjustable valve features 10 distinct settings, allowing you to fine-tune your suspension for everything from high-speed desert sections to technical rock crawling and daily street driving. Note that the extended travel design requires the installation of aftermarket front upper control arms to accommodate the increased wheel travel.
- MPN: 58735C
- Lift Height: 0-3.5" (2005-2015 models) or 0-2.75" (2016-2023 models)
- Damping Adjustment: CDCV with 10 external compression settings
- Construction: CAD-plated threaded shock bodies with billet aluminum upper mounts
- Hardware: Includes reservoir mounting brackets and sway bar relocation brackets
- Bearings: 5/8" PTFE-lined spherical bearings for durability
- Serviceability: Fully rebuildable and re-valvable design
📘 Guides & Manuals
🔧 Fitment & Compatibility
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2015 | Toyota | Tacoma | Base |
| 2016-2023 | Toyota | Tacoma | Limited |
| 2005-2015 | Toyota | Tacoma | Pre Runner |
| 2016-2023 | Toyota | Tacoma | SR |
| 2016-2023 | Toyota | Tacoma | SR5 |
| 2021 | Toyota | Tacoma | Trail |
| 2023 | Toyota | Tacoma | Trail Special Edition |
| 2016-2023 | Toyota | Tacoma | TRD Off-Road |
| 2015,2017-2023 | Toyota | Tacoma | TRD Pro |
| 2016-2023 | Toyota | Tacoma | TRD Sport |
| 2005-2013 | Toyota | Tacoma | X-Runner |
