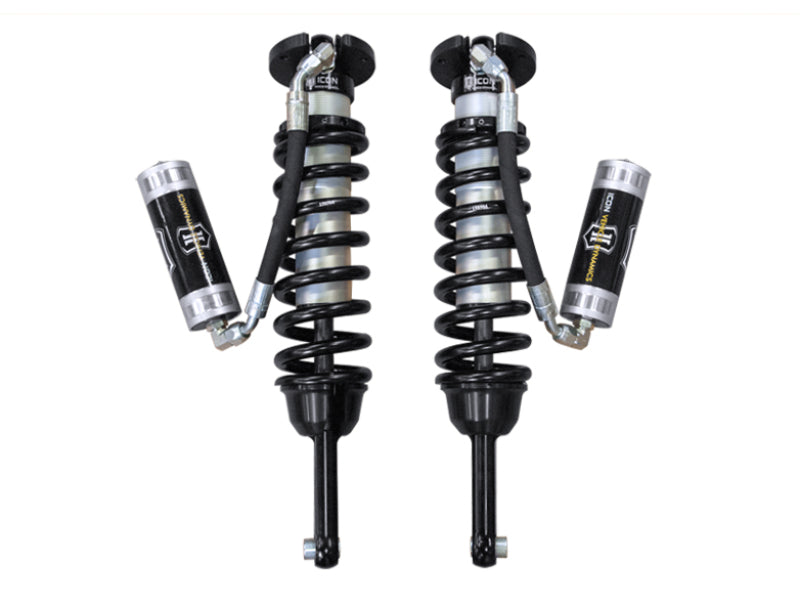

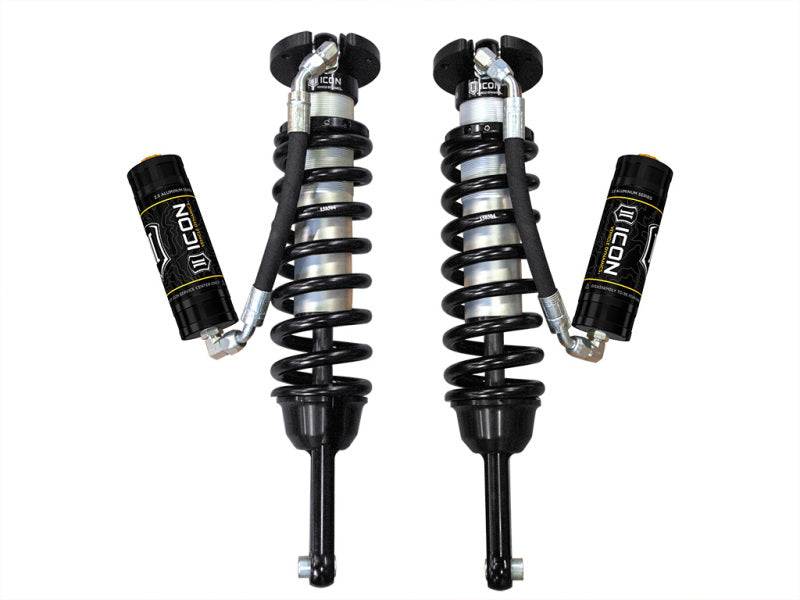

ICON V.S. 2.5 Series RR Extended Travel Front Coilover Kit for 2005-2023 Toyota Tacoma (58735)

Fits select 2005-2023 Toyota Tacoma models including Base, Pre Runner, TRD Pro, TRD Off-Road, SR5, and Limited. This ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover kit is engineered to provide maximum travel and superior damping for the 2005-2023 Toyota Tacoma. These adjustable coilovers provide 0-3.5 inches of lift height on 2005-2015 models and 0-2.75 inches on 2016-2023 models, accommodating larger wheel and tire combinations.

Built with a 2.5-inch shock body and vehicle-specific valving, these shocks feature external remote reservoirs that significantly increase oil volume and surface area for better heat dissipation during hard use. This design prevents cavitation and shock fade in aggressive off-road environments. As an Extended Travel version, these coilovers offer increased wheel travel but strictly require the installation of aftermarket front upper control arms (UCAs).

• Manufacturer Part Number: 58735
• Lift Height: 0-3.5" (2005-2015) or 0-2.75" (2016-2023)
• 2.5" CAD-plated threaded shock body for corrosion resistance
• External reservoirs for maximum cooling and fluid transfer
• 250 PSI nitrogen-charged internal reservoir
• ICON-engineered coil springs with billet aluminum upper mounts
• 5/8" PTFE-lined spherical bearings for durability
• Includes reservoir mounting brackets and sway bar relocation brackets
• Completely rebuildable and re-valvable design
