ICON Stage 5 1-3" Suspension System with Billet UCAs for 2007-2021 Toyota Tundra K53025

Fits 2007-2021 Toyota Tundra models, including SR, SR5, Limited, Platinum, 1794 Edition, and TRD Pro.

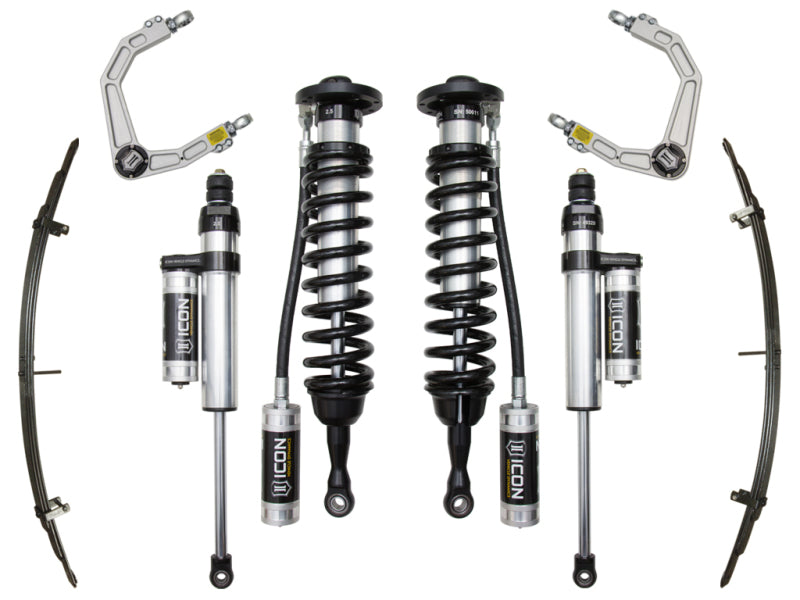

The ICON Stage 5 Suspension System for the 2007-2021 Toyota Tundra is a comprehensive handling upgrade designed to increase wheel travel and ride quality without compromising towing capacity. This system features ICON’s billet aluminum upper control arms equipped with the patented Delta Joint. The Delta Joint is a heavy-duty, high-angle ball joint that combines the durability of a sealed joint with the performance of a traditional uniball, utilizing a zinc-plated housing and a robust grease seal to protect internal components from road grime and the elements.

This 100% bolt-on kit includes vehicle-specific tuned 2.5 Aluminum Series front coilovers and piggyback rear shocks. The front coilovers offer adjustable lift heights from 1 to 3 inches and feature corrosion-resistant CAD-plated bodies with 7/8-inch shafts. To enhance rear-end performance and level the stance, a rear expansion pack is included to provide 1.5 inches of lift and improved articulation.

• Adjustable coilovers provide 1-3" of front lift height
• Billet 6061 aircraft-grade aluminum CNC machined upper control arms
• Patented Delta Joint for high-angle articulation and long-term durability
• 2.5 Aluminum Series piggyback rear shocks with impact-extruded bodies
• Heavy-duty 7/8" polished chrome shock shafts
• FK rod end bearings for extended service life and minimal deflection
• Rear expansion spring pack for 1.5" of lift and better ride quality
• Complete bolt-on installation; no cutting or welding required
• Manufacturer Part Number: K53025
