ICON Stage 5 Suspension System 1-3" Lift for 2007-2021 Toyota Tundra with Tubular UCAs - K53025T

Fits 2007-2021 Toyota Tundra (Base, SR, SR5, Limited, Platinum, 1794 Edition, Nightshade, Trail, and TRD Pro).

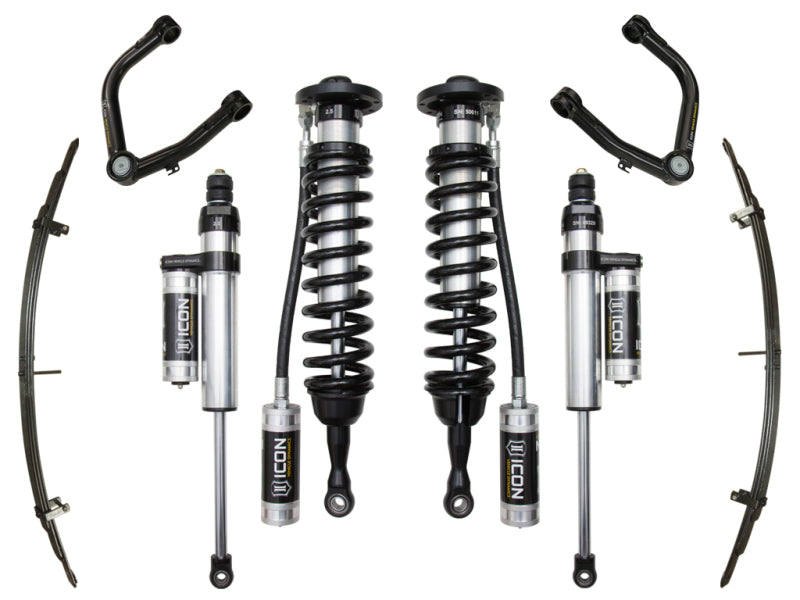

The ICON Stage 5 Suspension System is a comprehensive performance upgrade designed for the 2007-2021 Toyota Tundra, providing 1-3 inches of adjustable front lift height. This system significantly improves wheel travel and ride quality without compromising factory towing capacity. At the core of this kit are the tubular upper control arms featuring ICON’s patented Delta Joint. This heavy-duty, high-angle ball joint combines the extreme articulation of a uniball with the weather-sealed durability of a traditional ball joint, utilizing a zinc-plated housing and a tough grease seal to resist corrosion and contaminants.

For superior damping and heat dissipation, this system includes 2.5 Aluminum Series rear shocks with one-piece impact-extruded cylinders and vehicle-specific valving. The front coilovers feature CAD-plated bodies and 7/8-inch polished chrome shafts for maximum strength. This 100% bolt-on system requires no cutting or welding, making it a straightforward installation for those seeking professional-grade off-road performance and daily-driver reliability.

• Adjustable front coilovers provide 1-3 inches of lift height
• Tubular upper control arms with patented greaseable Delta Joints
• 2.5 Aluminum Series rear shocks with 7/8-inch shafts
• Rear expansion pack provides 1.5 inches of lift and improved progression
• CNC-machined 6061 aircraft-grade aluminum components
• FK rod end bearings for reduced deflection and extended service life
• Corrosion-resistant CAD-plated shock bodies
• Complete 100% bolt-on installation
• Manufacturer Part Number: K53025T
