ICON Stage 5 0-3.5" Suspension System with Billet UCAs for 2010-2024 Toyota 4Runner, FJ Cruiser & Lexus GX460 K53185

Fits 2010-2024 Toyota 4Runner, 2010-2014 FJ Cruiser, and 2010-2023 Lexus GX460.

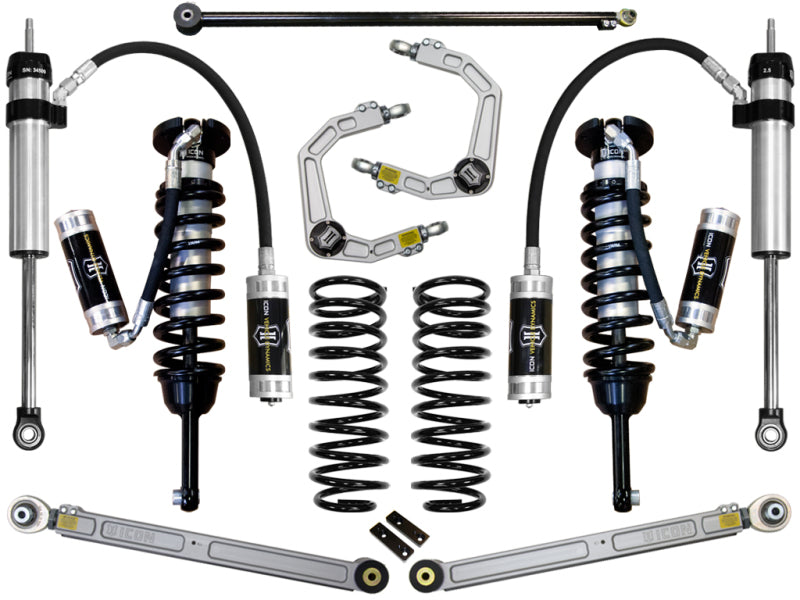

The ICON Stage 5 suspension system is a comprehensive performance upgrade engineered to maximize the off-road capability and on-road handling of the 4Runner, FJ Cruiser, and GX460 platforms. This kit features 2.5-inch diameter extended travel coilovers and rear shocks, both equipped with remote reservoirs for increased oil capacity and superior heat dissipation during high-speed technical use. The front coilovers offer 0-3.5 inches of lift height adjustment, allowing for the clearance of larger tire and wheel combinations while significantly improving suspension travel.

This system includes ICON billet aluminum upper control arms featuring the patented Delta Joint, which provides the performance of a uniball with the durability and weather resistance of a traditional ball joint. The rear is enhanced with 2-inch lift coil springs, 2.5 Aluminum Series remote reservoir shocks, and billet aluminum lower links that improve articulation and allow for on-vehicle pinion angle adjustment. An adjustable rear track bar is also included to correct axle alignment and ensure full compatibility with KDSS-equipped models.

• Patented Delta Joint (U.S. Pat. 10,731,700) combines uniball performance with ball joint longevity.
• 6061 CNC-machined billet aluminum upper control arms and rear lower links for maximum strength.
• Height-adjustable front coilovers (0-3.5" lift) with corrosion-resistant CAD-plated bodies and 7/8" shafts.
• Vehicle-specific shock valving ensures balanced handling across both front and rear axles.
• FK Rod End bearings provide extended service life and minimal deflection.
• Complete bolt-on installation requires no cutting or welding to factory mounting points.
• Manufacturer Part Number: K53185
