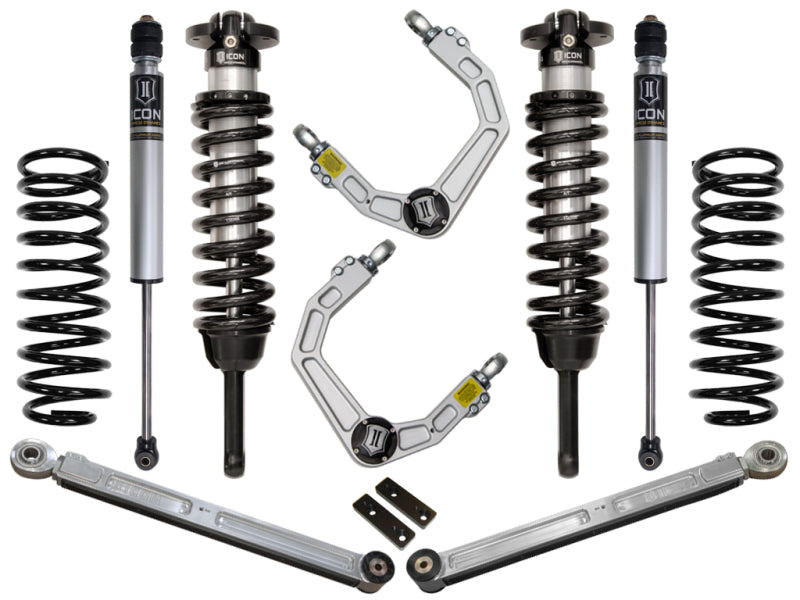

ICON K53063 Stage 3 Suspension System 0-3.5in Lift with Billet UCAs for Select 2010-2024 Toyota & Lexus

Fits select 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460.

The ICON Vehicle Dynamics Stage 3 suspension system is engineered for drivers who demand increased wheel travel and damping performance during serious off-road use. This bolt-on system features vehicle-specific tuned 2.5-inch coilover shocks with internal reservoirs for superior heat dissipation. The height-adjustable coilovers provide 0-3.5 inches of front lift, allowing for the clearance of larger, more aggressive wheel and tire combinations while improving front-end geometry.

This kit includes ICON billet aluminum Delta Joint upper control arms (UCAs), which provide the strength needed for extended travel while offering on-vehicle caster and camber adjustment. For the rear, the system utilizes 2-inch lift coil springs for a level stance, paired with 2.0 Aluminum Series internal reservoir shocks. The included CNC-machined 6061 billet aluminum rear lower links feature a double adjuster system for precise on-vehicle pinion angle adjustment, utilizing PTFE-lined FK rod ends for maximum articulation and minimal deflection.

• Part Number: K53063
• 0-3.5" adjustable front lift height; 2" rear lift height
• 2.5" front coilovers with CAD-plated bodies and 7/8" shafts
• 2.0 Aluminum Series rear shocks with 5/8" shafts and internal reservoirs
• Billet 6061 aluminum Delta Joint UCAs for improved alignment geometry
• Adjustable billet rear lower links with PTFE-lined FK rod ends
• Polyurethane bushings for reduced deflection and increased durability
• 100% bolt-on installation; no cutting or welding required
