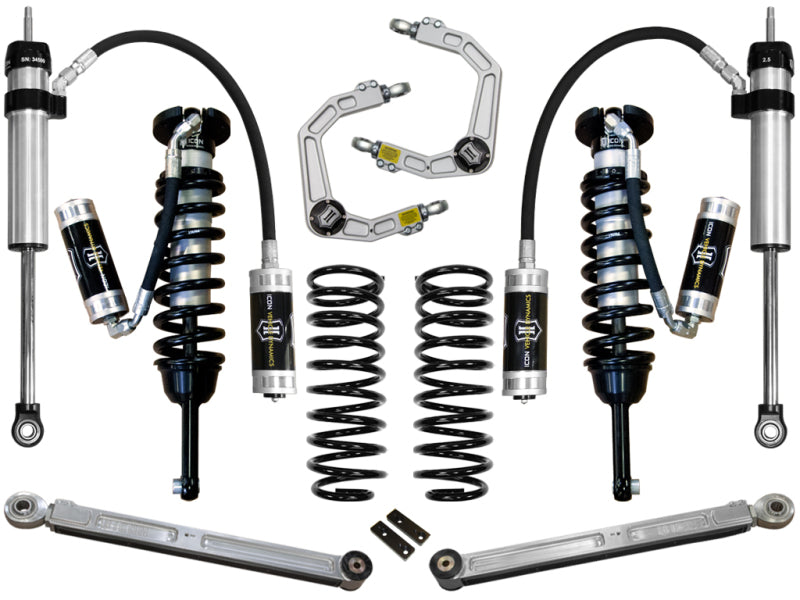

ICON Stage 5 0-3.5" Suspension System with Billet UCAs for Select 2010-2024 Toyota 4Runner, FJ Cruiser, & Lexus GX460

Fits select 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. The ICON Vehicle Dynamics Stage 5 Suspension System is engineered for the serious driver demanding maximum wheel travel and damping ability for off-road performance without sacrificing street manners. This system centers on vehicle-specific tuned, extended travel 2.5-inch coilover shocks featuring remote reservoirs for superior cooling and 0-3.5 inches of adjustable front lift height.

To handle the increased travel, this kit includes ICON billet aluminum Delta Joint upper control arms. These UCAs improve alignment geometry, provide on-vehicle caster/camber adjustment, and offer the durability needed for aggressive use. The rear setup is comprised of 2-inch lift coil springs, CNC-machined 6061 billet aluminum adjustable lower links for pinion angle correction, and 2.5 Aluminum Series remote reservoir shocks. These rear shocks feature a unique internal Bump Zone that provides an additional 20% of damping force to control hard bottom-out events.

• Extended travel 2.5" remote reservoir coilovers with 7/8" shafts and CAD plated bodies
• Billet aluminum Delta Joint UCAs for increased strength and improved droop travel
• Adjustable 0-3.5" front lift height and 2" rear lift height over stock
• CNC-machined 6061 aircraft grade aluminum rear lower links with double adjusters
• 2.5 Aluminum Series remote reservoir rear shocks with internal Bump Zone technology
• FK Rod End bearings and greaseable polyurethane bushings for minimal deflection
• Complete bolt-on installation; no cutting or welding required
• Manufacturer Part Number: K53065
