ICON EXP Series Front 2.5in Aluminum Coilover for 2021-2024 Ford Bronco (HOSS 2.0) - 48602

Fits 2021-2024 Ford Bronco models equipped with the HOSS 2.0 Suspension Package.

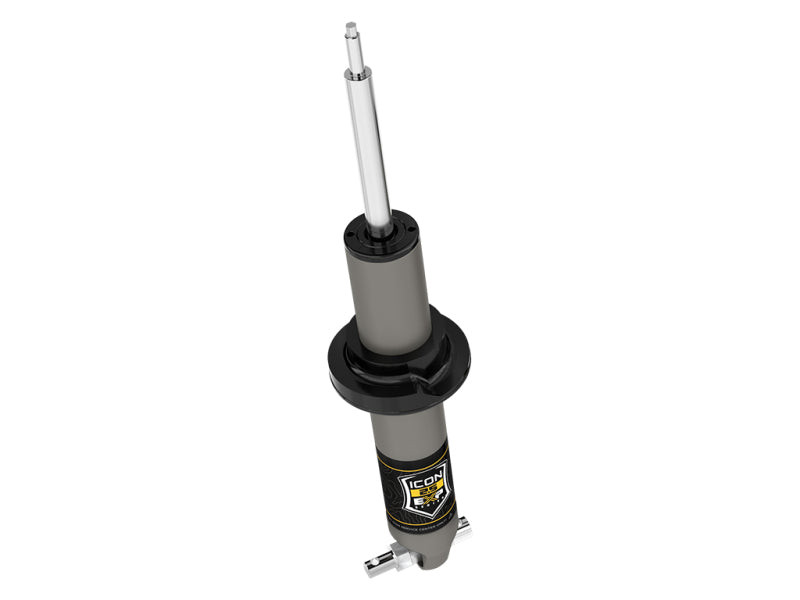

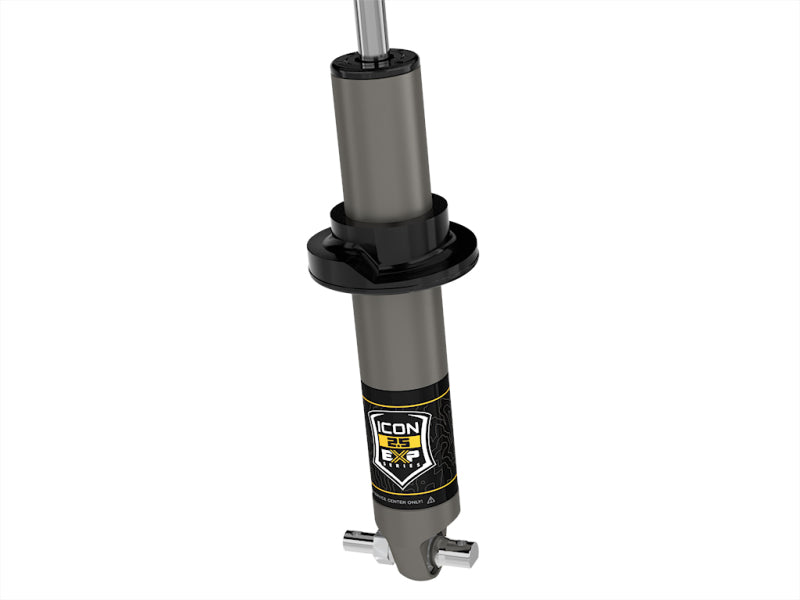

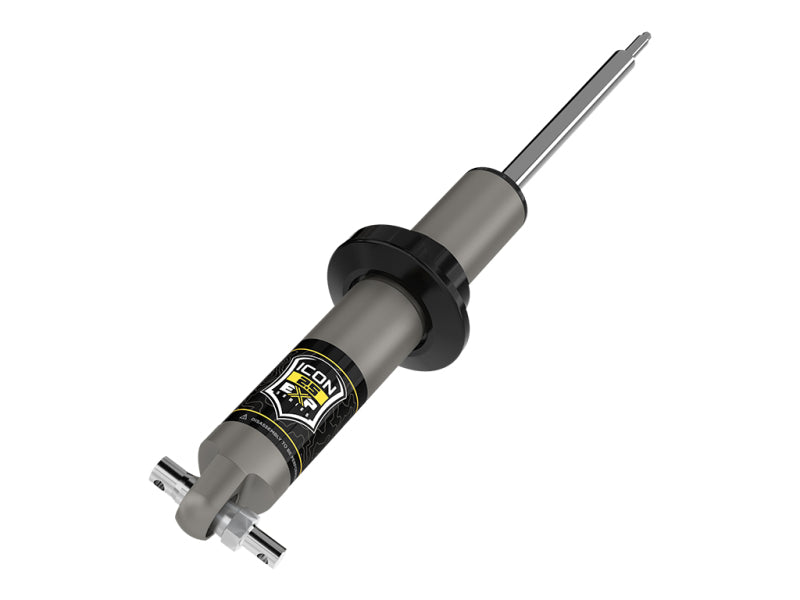

The ICON EXP Series front shocks are designed to bridge the gap between basic spacer lifts and high-end threaded-body coilovers. Specifically tuned for the 2021-2024 Ford Bronco, these 2.5-inch diameter shocks utilize a one-piece digressive piston design that works in conjunction with factory coil springs to optimize damping performance. The increased oil volume and surface area of the 2.5-inch aluminum body provide superior heat dissipation over stock steel-bodied shocks, ensuring consistent performance during high-speed desert runs or technical crawling.

These shocks feature an integrated snap-ring system for adjustable ride heights, offering 0 to 2 inches of front lift over stock. The inverted shaft-up design utilizes a 7/8-inch induction-hardened, chrome-plated shaft for maximum durability. For long-term serviceability, the EXP shocks are fully rebuildable and re-valvable by any qualified shock technician.

• Adjustable front lift height: 0-2 inches (via snap ring grooves)
• 2.5-inch diameter impact-extruded, hard-anodized 6061 aluminum cylinder
• Inverted shaft-up design with 7/8-inch induction-hardened shaft
• PTFE-lined spherical bearing for minimal deflection and extended longevity
• CNC-machined 6061 aluminum components with black anodized finish
• High-strength alloy CNC-machined lower bar pin
• 100% bolt-on installation; no cutting or welding required
• Utilizes factory coil and mounting hardware
• Fully rebuildable and re-tunable
• Manufacturer Part Number: 48602
