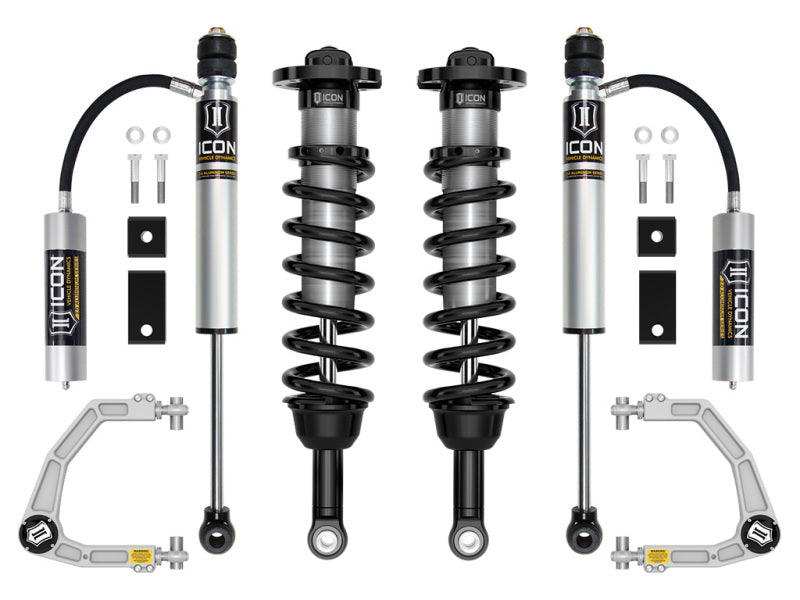

ICON Stage 5 Suspension System 1.25-3.5" Lift for 2022-2025 Toyota Tundra & Sequoia (Billet) K53195

Fits 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia models.

The ICON Stage 5 Suspension System (K53195) is a high-performance handling solution designed for 2022-2025 Tundra and Sequoia owners who require superior damping and articulation. This system is engineered to provide up to a 40% increase in front wheel travel over stock while maintaining factory-correct geometry. By pairing ICON V.S. 2.5 Series front coilovers with V.S. 2.0 Aluminum Series rear remote reservoir shocks, the Stage 5 kit delivers a balanced, vehicle-specific tune that remains consistent during heavy use and high-speed off-road driving.

The included billet aluminum Upper Control Arms (UCAs) are a critical upgrade for lifted applications, featuring the patented Delta Joint Pro which allows for 90 degrees of total articulation. These UCAs provide on-vehicle caster and camber adjustment, ensuring optimum drivability and tire wear. The rear remote reservoir shocks increase oil volume, keeping operating temperatures lower to prevent damping fade during sustained use.

• Adjustable front ride height from 1.25" to 3.5" of lift over stock.
• ICON V.S. 2.5 Series front coilovers with internal reservoirs for superior vehicle control.
• V.S. 2.0 Aluminum Series rear shocks with remote reservoirs for increased oil capacity and cooling.
• Billet aluminum UCAs with Delta Joint Pro (U.S. Pat. 10,731,700) for 90-degree articulation.
• Up to 40% increase in front wheel travel without overstressing OE components.
• Included sway bar drop brackets to reduce bind in factory sway bar links.
• 100% bolt-on installation; no drilling, cutting, or welding required.
• Fully rebuildable and re-tunable shock absorbers.
• Manufacturer Part Number: K53195
