ICON Stage 4 2-3.5" Lift Suspension System with Tubular UCAs for Select 2022-2025 Toyota Tundra & Sequoia (K53194T)

Fits select 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia models.

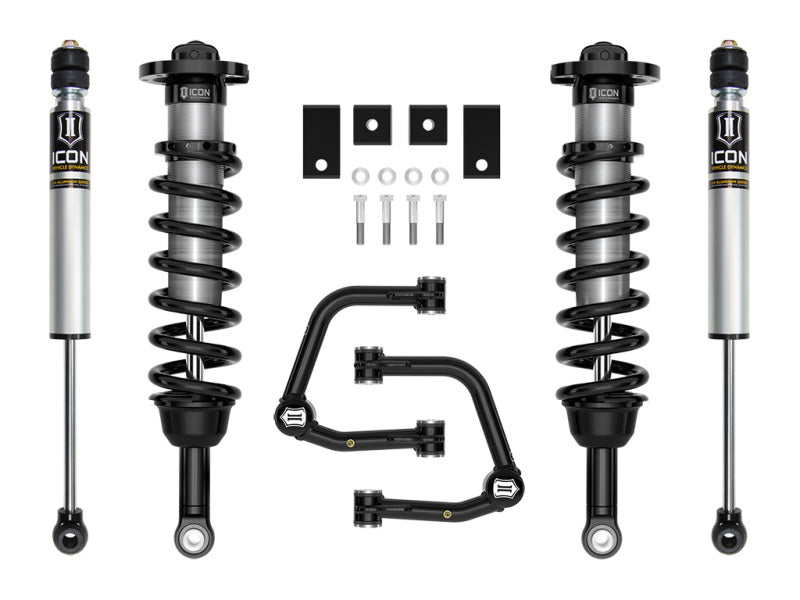

The ICON Vehicle Dynamics Stage 4 complete suspension system provides a high-performance handling solution for the 2022-2025 Toyota Tundra and Sequoia. This system centers on ICON V.S. 2.5 Series threaded-body front coilovers and adds tubular front upper control arms (UCAs) to allow for increased front-end lift heights and improved alignment geometry. By correcting the suspension geometry, this kit enables up to a 40% increase in front wheel travel over stock without overstressing OE components, allowing for the fitment of up to 35-inch tires.

The included tubular UCAs feature the patented Delta Joint Pro, providing 90 degrees of total articulation to handle the most demanding off-road conditions. For the rear, the Stage 4 system utilizes 2.0 Aluminum Series nitrogen-charged monotube shocks with internal reservoirs, valved specifically to balance the damping of the 2.5 Series front coilovers. This 100% bolt-on system requires no drilling, cutting, or welding for installation.

• Adjustable Lift: Front ride heights from 2-3.5 inches over stock
• Front Coilovers: V.S. 2.5 Series with internal reservoirs for superior damping
• Rear Shocks: 2.0 Aluminum Series nitrogen-charged monotubes
• Upper Control Arms: Tubular steel with patented Delta Joint Pro (90-degree articulation)
• Wheel Travel: Up to 40% increase over factory specs
• Installation: 100% bolt-on design; includes sway bar drop brackets
• Serviceability: All ICON shock absorbers are fully rebuildable and re-tunable
• Manufacturer Part Number: K53194T
