ICON Stage 4 3-4.5" Tubular Suspension System for 2023-2025 Toyota Sequoia (K53234T)

Fits 2023-2025 Toyota Sequoia (SR5, Limited, Platinum, 1794 Edition, Capstone, and TRD Pro).

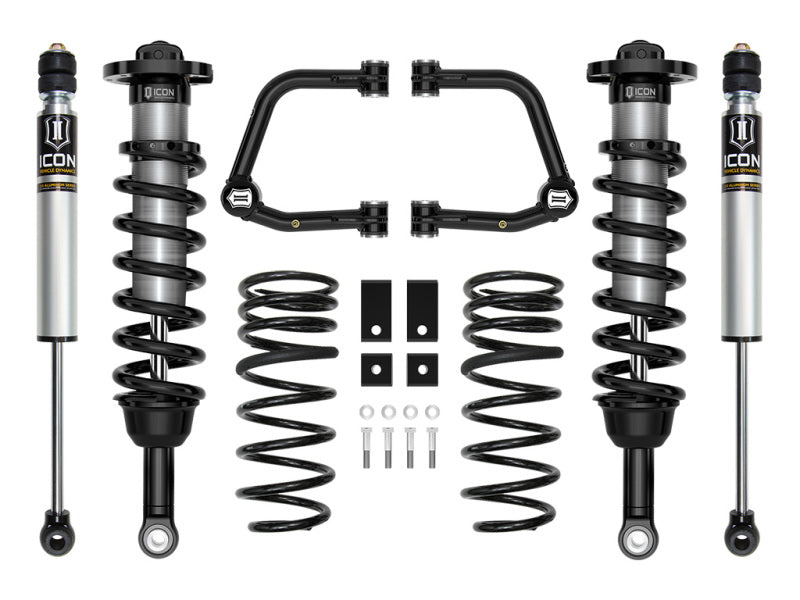

The ICON Vehicle Dynamics Stage 4 complete suspension system provides a significant performance upgrade for the 2023-2025 Toyota Sequoia, offering 3-4.5 inches of adjustable front lift height to accommodate up to 35-inch tires. This system features ICON V.S. 2.5 Series threaded-body front coilovers and tubular upper control arms (UCAs) equipped with the patented Delta Joint Pro. These UCAs provide 90 degrees of total articulation and correct front-end alignment geometry for improved drivability and strength over factory components.

The rear suspension is enhanced with ICON 2.0 Aluminum Series nitrogen-charged monotube shocks and dual-rate coil springs, which provide 0 or 2 inches of lift depending on the factory suspension package. A front sway bar drop kit is included to reduce binding in the OE links, ensuring full wheel travel and superior damping across both on-road and off-road terrain.

• Adjustable front lift height: 3-4.5 inches over stock
• Patented Delta Joint Pro UCAs (U.S. Pat. 10,731,700) with 90-degree articulation
• V.S. 2.5 Series front coilovers with internal reservoirs for superior damping

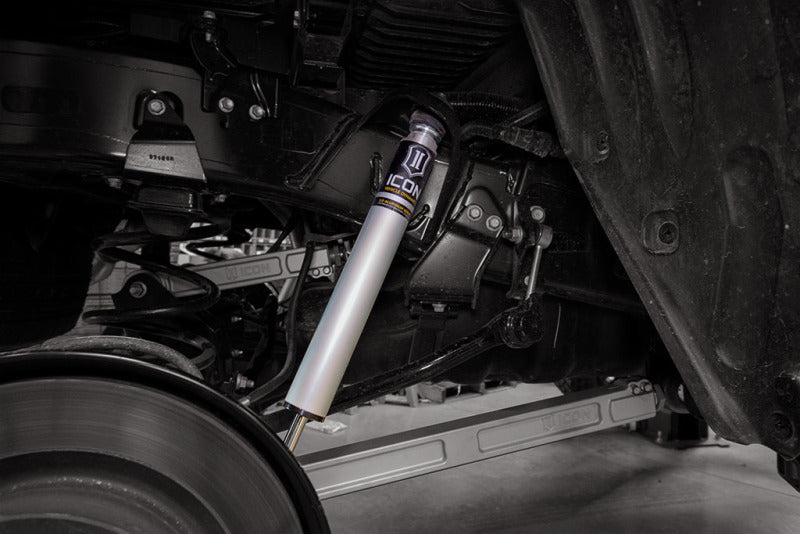

• 2.0 Aluminum Series nitrogen-charged monotube rear shocks
• Dual-rate rear coil springs for improved ride quality and performance
• Front sway bar drop brackets included to minimize link binding
• All ICON shock absorbers are fully rebuildable and re-tunable
• Direct bolt-on design for 2023-2025 Toyota Sequoia models
• Manufacturer Part Number: K53234T
