ICON 2.5 VS Series Remote Reservoir Front Coilover Kit for 2024-2025 Toyota Land Cruiser - 1.25-3" Lift

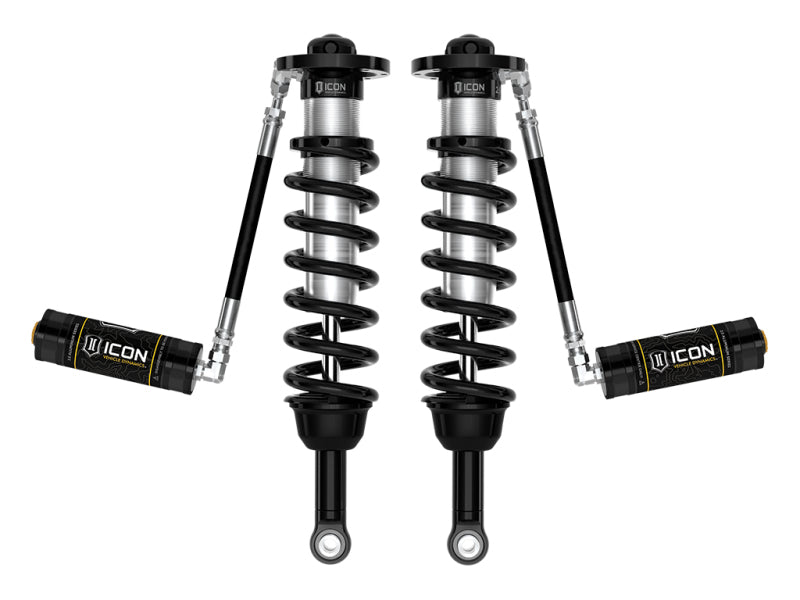

Fits 2024-2025 Toyota Land Cruiser 1958, Base, and First Edition models. The ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Coilover Kit (MPN 58791) provides a complete suspension upgrade for the LC250, offering 1.25–3” of adjustable lift height to accommodate larger wheel and tire combinations. This system is vehicle-specific tuned to deliver superior damping and vehicle control for both highway and aggressive off-road use.

These coilovers utilize a large 2.5-inch diameter shock body with increased piston surface area over stock components. The external remote reservoirs significantly increase oil volume and cooling surface area, resisting the heat-induced cavitation and damper fade common during high-speed desert driving. When paired with the included front differential drop, this kit yields the maximum wheel travel possible while maintaining proper suspension geometry.

• Adjustable lift height from 1.25–3” over stock
• 2.5” CAD-plated shock bodies for corrosion resistance
• Remote reservoirs for improved heat dissipation and consistent performance
• Induction hardened 7/8” diameter chrome plated shock shafts
• 6061 aircraft-grade aluminum CNC-machined components
• FK rod end bearings for maximum longevity and minimal deflection
• Includes ICON-engineered coil springs
• Fully rebuildable and re-tunable design
• Manufacturer Part Number: 58791
