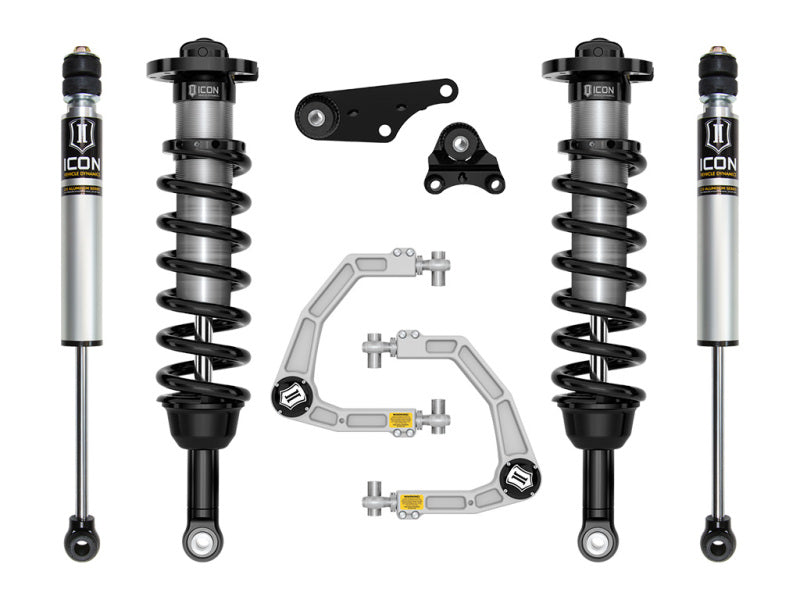

ICON Stage 2 1.25-3" Lift Suspension System with Billet UCAs for 2024-2025 Toyota Tacoma (K53292)

Fits 2024-2025 Toyota Tacoma SR5, TRD Off-Road, TRD Sport, and 2024 Limited models. The ICON Vehicle Dynamics Stage 2 suspension system is engineered to increase wheel travel and damping performance for improved vehicle control during off-road use and on-road driving.

This system features 2.5 Series front coilovers with internal reservoirs for enhanced cooling and ICON-engineered coil springs. These coilovers provide 1.25 to 3 inches of front lift height, accommodating larger tire packages while correcting front-end geometry. To maintain drivetrain longevity, the included front differential drop brackets and polyurethane mounting bushings minimize CV binding and limit differential movement under load. The billet 6061 aluminum upper control arms (UCAs) feature the patented Delta Joint PRO, providing 90 degrees of articulation to eliminate suspension bind during full travel.

The rear is supported by vehicle-specific tuned 2.0 Aluminum Series internal reservoir shocks, balancing the truck's damping profile. All components utilize high-quality hardware, including FK Rod End bearings and CAD-plated shock bodies for maximum durability.

• Adjustable coilovers provide 1.25-3" front lift height
• Billet aluminum UCAs with Delta Joint PRO for 90-degree articulation
• 2.5 Series front coilovers with 7/8" shafts and internal reservoirs
• 2.0 Aluminum Series rear shocks with 5/8" shafts
• 6061 aircraft grade aluminum CNC machined components
• FK Rod End bearings for minimal deflection and longevity
• Front differential drop kit improves CV angles on 4WD models
• Corrosion-resistant CAD plated coilover bodies
• Manufacturer Part Number: K53292
