ICON Stage 3 1.25-3" Suspension System for 2024-2025 Toyota Tacoma with Tubular UCAs - K53293TS

Fits 2024-2025 Toyota Tacoma Limited, SR5, TRD Off-Road, and TRD Sport models.

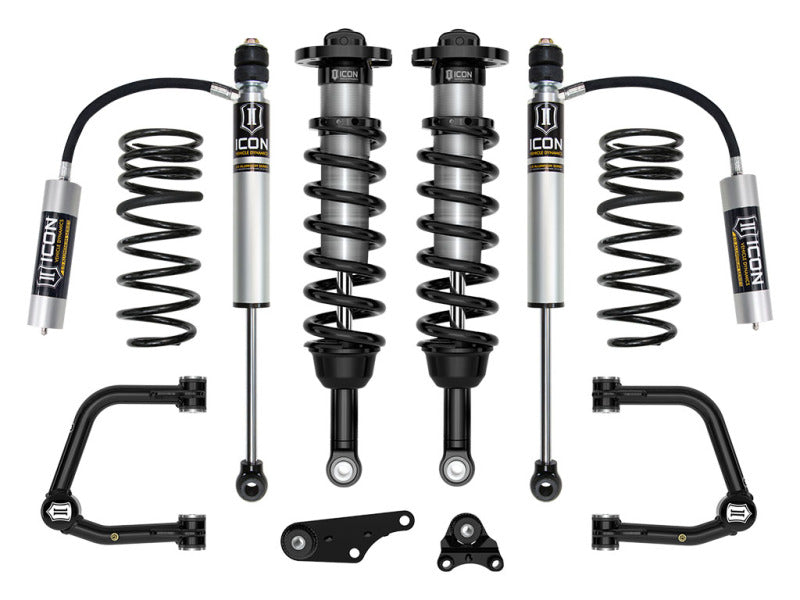

The ICON Vehicle Dynamics Stage 3 suspension system is engineered to enhance the drivability and off-road capability of the 2024-2025 Toyota Tacoma. This system features adjustable front coilovers providing 1.25" to 3" of lift, allowing for larger tire fitment and increased ground clearance. The included tubular upper control arms (UCAs) are essential for maintaining proper front-end geometry and alignment when lifting the vehicle, featuring the patented Delta Joint PRO for 90 degrees of total articulation without binding.

The rear suspension is upgraded with ICON triple-rate coil springs that provide a .5" lift while balancing on-road comfort with firm bottoming resistance during off-road use. Damping is handled by 2.0 Aluminum Series remote reservoir rear shocks, specifically valved for the Tacoma chassis to ensure superior cooling and consistent performance in demanding terrain. The system also includes a front differential drop to maintain optimal CV joint angles and maximize wheel travel on 4WD models.

• Adjustable coilovers provide 1.25-3" front lift height
• Tubular UCAs with Delta Joint PRO (U.S. Pat. 10,731,700) for 90-degree articulation
• Triple-rate rear coil springs provide .5" lift and improved ride quality
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Corrosion-resistant CAD plated coilover bodies with 7/8" shafts
• 6061 aircraft-grade aluminum CNC machined components
• FK Rod End bearings for maximum longevity and minimal deflection
• Front differential drop kit included for corrected CV angles
• Manufacturer Part Number: K53293TS
