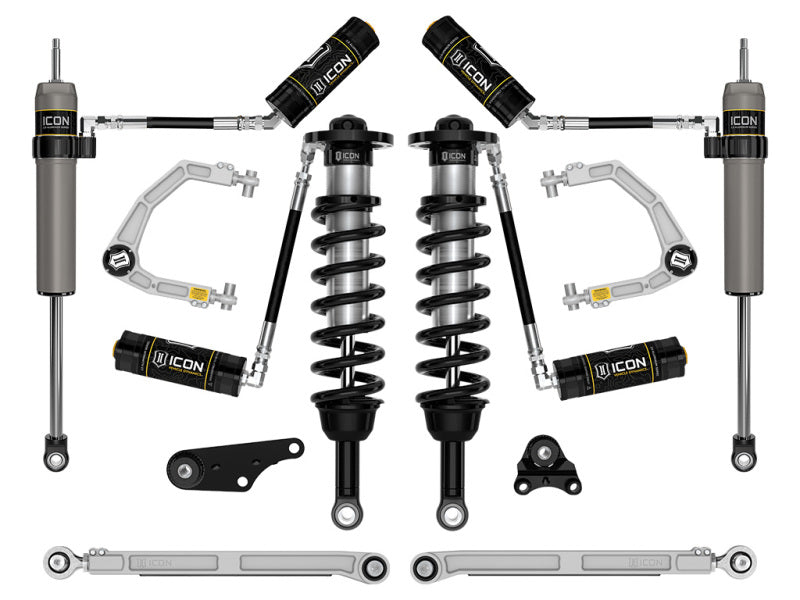

ICON 2024-2025 Toyota Tacoma 1.25-3" Stage 7 Suspension System with Billet UCAs & Links (K53297)

Fits 2024-2025 Toyota Tacoma models, including SR5, TRD Off-Road, TRD Sport, and 2024 Limited. This comprehensive Stage 7 suspension system is engineered for the serious driver demanding maximum wheel travel and superior damping performance for both technical off-road terrain and high-speed transit.

The system features ICON 2.5 Series front coilovers and 2.5 Aluminum Series rear shocks, both equipped with remote reservoirs for increased oil volume and heat dissipation. This design effectively resists cavitation and shock fade during hard use. The front coilovers provide 1.25" to 3" of lift, allowing for larger wheel and tire packages. To maintain drivetrain integrity, a front differential drop kit is included to correct CV angles and maximize travel while preventing bind.

For superior geometry and strength, this kit includes CNC-machined 6061 billet aluminum upper control arms (UCAs) featuring the patented Delta Joint PRO. These UCAs allow for 90 degrees of articulation and provide on-vehicle adjustment for caster and camber. The rear is upgraded with billet aluminum lower links, improving articulation and allowing for precise pinion angle adjustment.

• Manufacturer Part Number: K53297

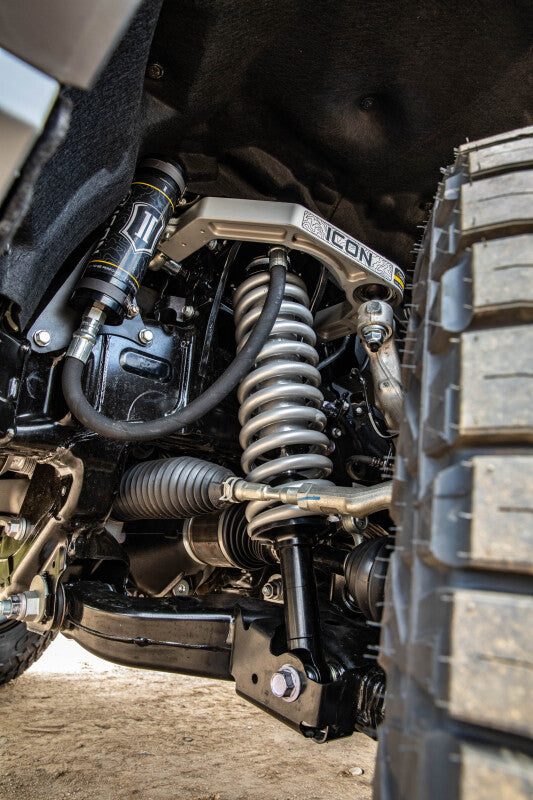

• 2.5 Series front coilovers with remote reservoirs (1.25-3" adjustable lift)

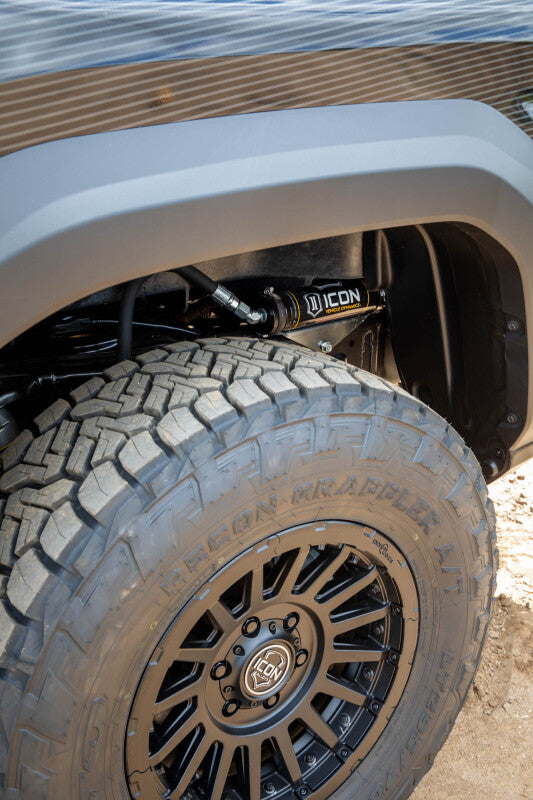

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts

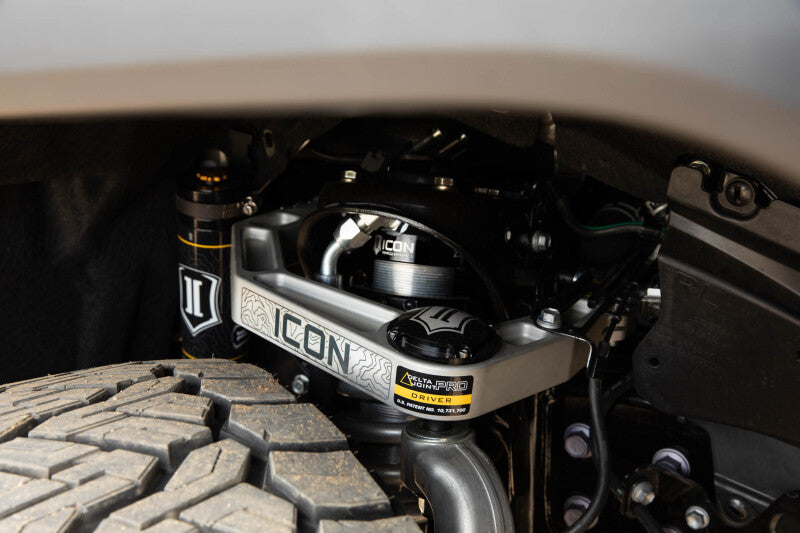

• Billet aluminum UCAs with Delta Joint PRO (U.S. Pat. 10,731,700)

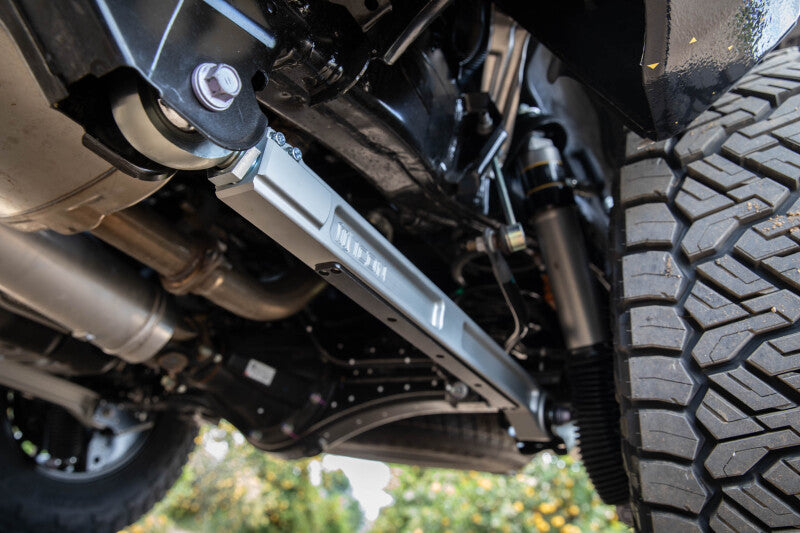

• Billet aluminum rear lower links for improved articulation
• Front differential drop brackets with polyurethane bushings
• Corrosion-resistant CAD-plated shock bodies with FK Rod End bearings
• CNC-machined 6061 aircraft-grade aluminum components
• ICON-engineered coil springs
