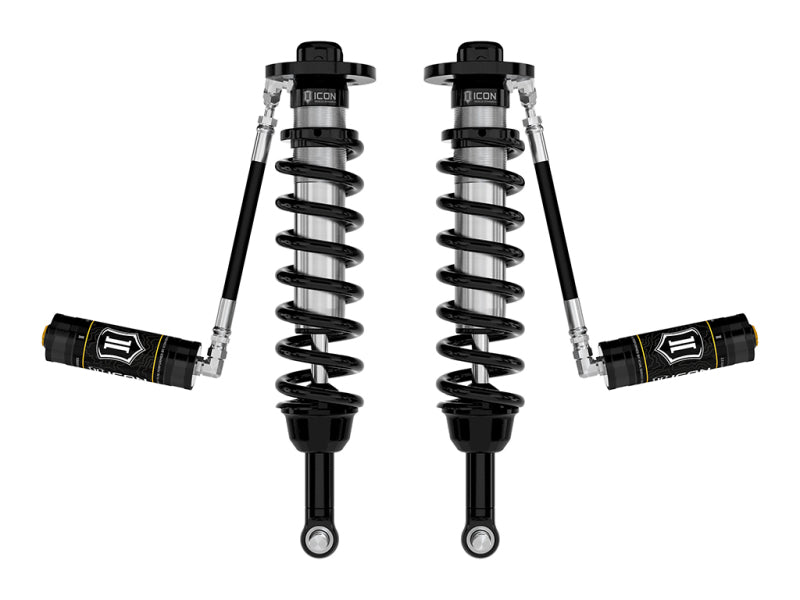

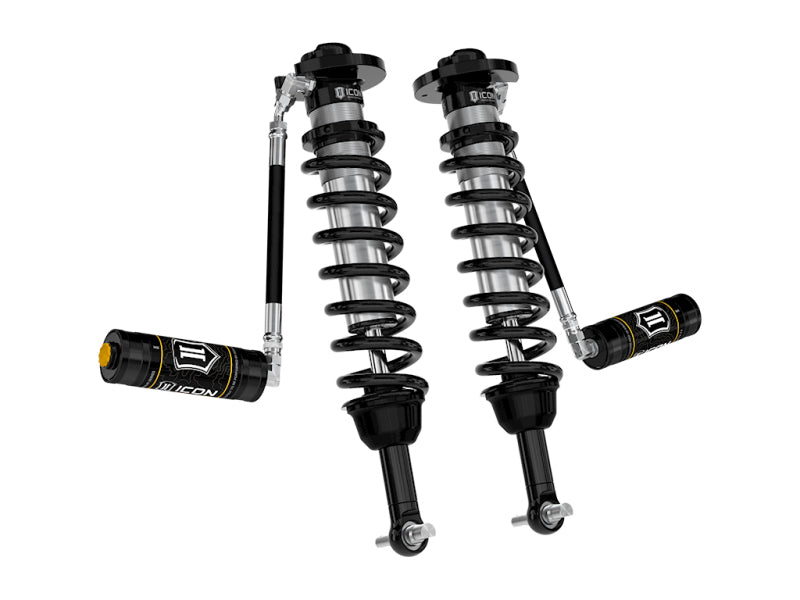

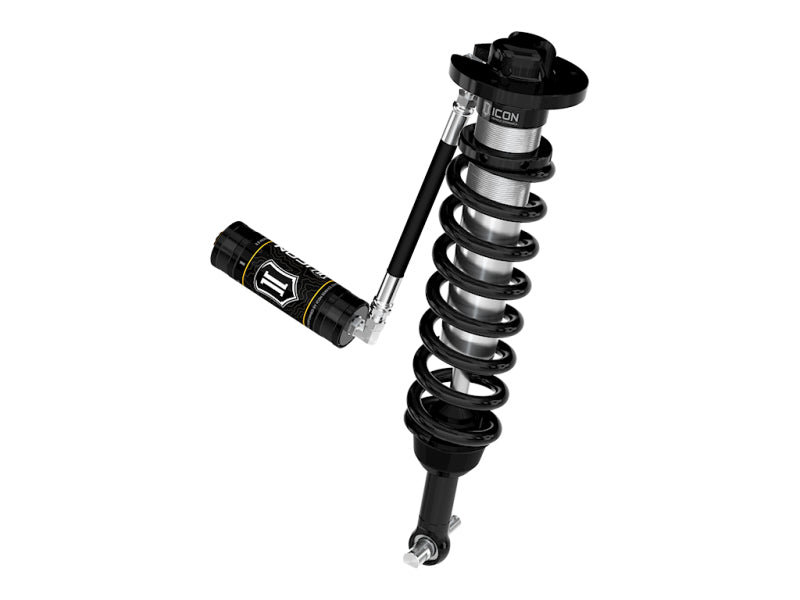

ICON V.S. Series 2.5 Remote Reservoir Coilover Kit for 2021-2025 Ford F-150 Tremor & 4WD (91824)

Fits 2021-2025 Ford F-150 models including Tremor, XL, XLT, Lariat, King Ranch, Platinum, STX, SSV, and Police Responder.

ICON Vehicle Dynamics V.S. Series 2.5 Remote Reservoir coilovers are engineered to provide maximum wheel travel and superior damping for the 2021-2025 Ford F-150. These coilovers are application-specific, designed to optimize front-end performance on the F-150 Tremor or 4WD F-150 models equipped with ICON’s Front Knuckle Kit. The 2.5-inch diameter shock bodies offer significantly more piston area than stock components, while the remote reservoirs increase oil volume and surface area for improved heat dissipation, preventing shock fade during aggressive off-road use.

This kit provides adjustable lift height, allowing for larger wheel and tire combinations. On Tremor models, it offers 2.5–3 inches of lift; on other F-150 sub-models equipped with the ICON Front Knuckle Kit, it provides 3.5–4.5 inches of lift. The system features a 100% bolt-on design for a straightforward installation with no cutting or welding required.

• Adjustable lift height: 2.5-3" (Tremor) or 3.5-4.5" (F-150 with ICON Knuckle Kit)
• 2.5" diameter CAD plated shock body with 7/8" induction hardened, chrome plated shaft
• Remote reservoirs for increased oil volume and heat dissipation
• 6061 aircraft-grade aluminum CNC machined components
• FK rod end bearings for maximum longevity and minimal deflection
• High-strength alloy CNC machined lower bar pins
• ICON-engineered coil springs
• 100% bolt-on installation
• Manufacturer Part Number: 91824
